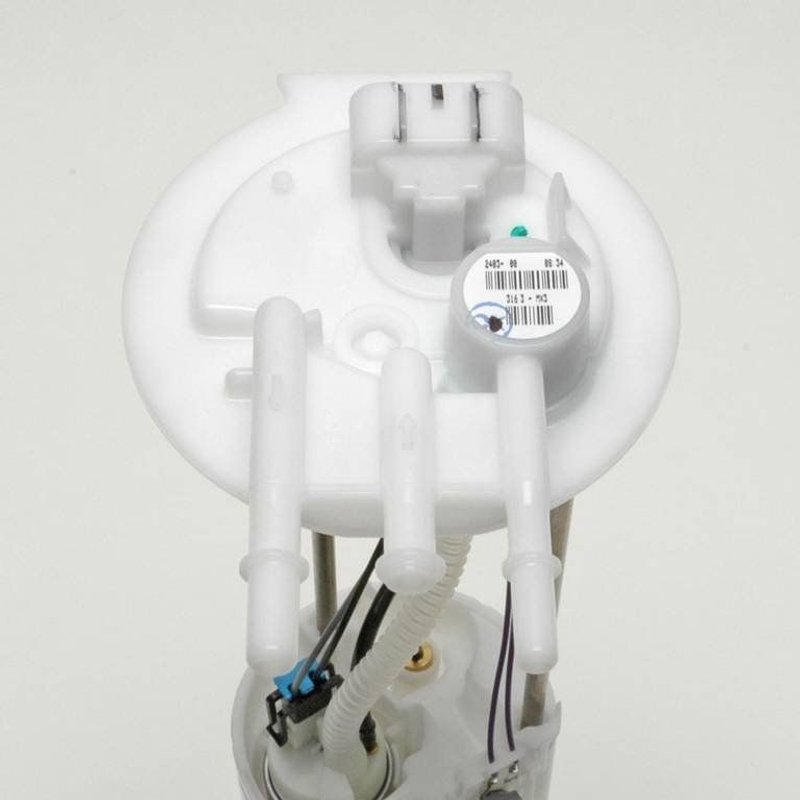

Delphi FG0175 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly for Saturn Vue

The Delphi FG0175 fuel pump module assembly is designed specifically for the Saturn Vue, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance and compatibility with your vehicle's fuel system requirements.

• Outlet outside diameter: 0.375 inches
• Voltage: 12.0 volts
• Fuel type: Gasoline
• Maximum pressure: 73 psi
• Terminal type: Blade, male, 4 terminals
• Includes gasket and internal strainer
• Quick connect outlet with 2 outlets
• In-tank pump with internal strainer and fuel level sender assembly
• Average current draw: 10 amps, average flow rating: 20
• Standard replacement grade for right position installation
• System pressure: 43 psi

Product Details and Specifications

The Delphi FG0175 fuel pump module assembly is an electric pump designed for gasoline fuel systems in the Saturn Vue. It operates at 12 volts and features a maximum pressure rating of 73 psi, with a system pressure of 43 psi to maintain optimal fuel delivery. The module includes a built-in fuel level sender assembly with resistance values ranging from 125 ohms when empty to 20 ohms when full, ensuring accurate fuel gauge readings. The pump uses a blade-type terminal with four male terminals for secure electrical connections. The assembly comes with a gasket and an internal strainer to protect the fuel system from contaminants. The quick connect outlet design with two outlets simplifies installation and fuel line connections.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Saturn Vue models requiring a right-position in-tank electric fuel pump. The Delphi FG0175 is engineered to meet the specific fuel delivery and electrical requirements of these vehicles, making it a suitable replacement part for maintaining proper fuel system function.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Corrects inaccurate fuel gauge readings due to faulty sender assembly
• Replaces worn or damaged fuel pump modules to restore fuel pressure
• Prevents fuel contamination with included internal strainer
• Addresses electrical connection problems with blade terminal design

Installation Notes and Tips

When installing the Delphi FG0175 fuel pump module assembly, ensure the vehicle's fuel system is depressurized before removal. The module is designed for right-side in-tank installation and includes a gasket for proper sealing. Use appropriate tools for disconnecting the quick connect outlets and blade terminals to avoid damage. Follow the included instruction sheet carefully to maintain safety and ensure correct installation. Verify all electrical connections are secure and test the fuel system pressure after installation.

Quality Assurance and Warranty

The Delphi FG0175 fuel pump module assembly is a standard replacement grade part manufactured to meet OEM specifications for the Saturn Vue. It includes a fuel level sender assembly and internal strainer to maintain system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
