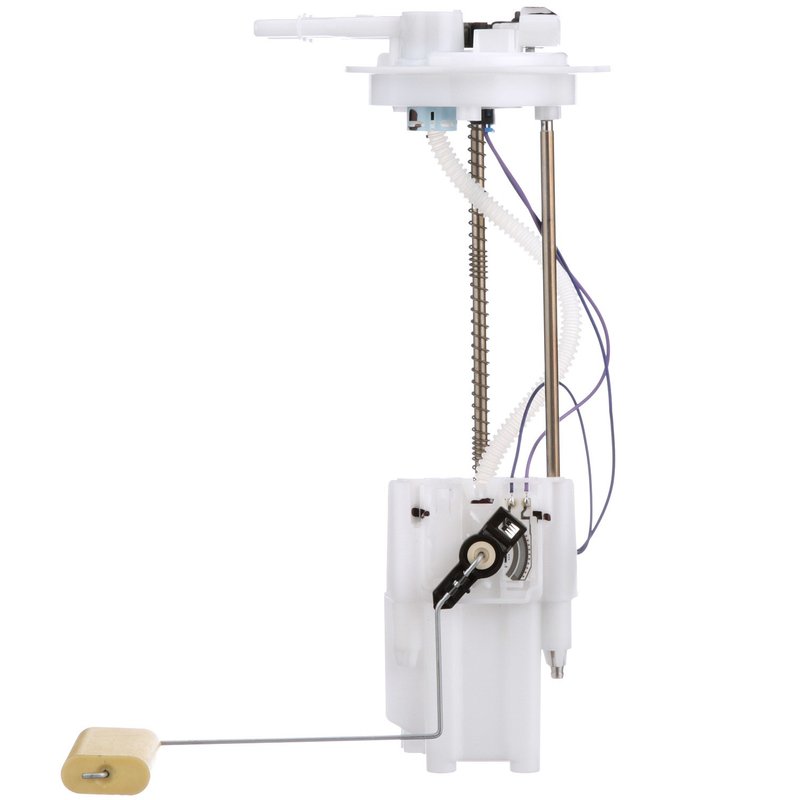

Delphi FG0176 Fuel Transfer Unit - Left

Delphi Fuel Transfer Unit for Saturn Vue

The Delphi FG0176 fuel transfer unit is designed specifically for the Saturn Vue, providing reliable in-tank fuel delivery and accurate fuel level readings. This standard replacement unit includes a fuel level sender assembly and regulator to ensure consistent performance with gasoline fuel systems.

• Compatible with Saturn Vue fuel systems
• In-tank fuel transfer unit with integrated fuel level sender assembly
• Includes regulator and gasket for secure installation
• Features 0.375 inch outlet outside diameter with quick connect outlets
• Blade-type male terminals with four connections for reliable electrical contact
• Equipped with vapor pressure sensor for emissions control
• Left position installation with metal clamp and instruction sheet included

Technical Details and Features

The Delphi FG0176 fuel transfer unit is engineered for gasoline fuel systems in the Saturn Vue. It features a 0.375 inch outlet outside diameter and two quick connect outlets to facilitate efficient fuel flow. The unit includes a built-in regulator to maintain proper fuel pressure and a fuel level sender assembly for accurate fuel gauge readings. The four male blade terminals provide secure electrical connections, while the vapor pressure sensor supports emissions compliance. This in-tank unit installs on the left side of the fuel tank and comes with a metal clamp and gasket to ensure a tight seal and proper fitment.

Common Applications and Problem Resolution

• Replaces faulty or leaking fuel transfer units in Saturn Vue vehicles
• Resolves inaccurate fuel gauge readings caused by a damaged sender assembly
• Addresses fuel pressure irregularities due to a malfunctioning regulator
• Fixes electrical connection issues with blade-type terminals
• Supports vapor pressure sensor function to reduce evaporative emissions

Installation Notes and Tips

Installation of the Delphi FG0176 fuel transfer unit requires access to the in-tank fuel system on the left side of the Saturn Vue. Ensure the vehicle is safely lifted and the fuel tank is depressurized before beginning. Use the included gasket and metal clamp to secure the unit and prevent leaks. Verify all four blade terminals are properly connected to maintain electrical continuity. Follow the instruction sheet carefully to avoid damage to the vapor pressure sensor and fuel level sender assembly during installation.

Quality Assurance and Warranty

Delphi manufactures the FG0176 fuel transfer unit to meet standard replacement quality specifications. The unit undergoes rigorous testing to ensure compatibility and durability within Saturn Vue fuel systems. This product includes a warranty that covers defects in materials and workmanship, providing confidence in its long-term performance.
