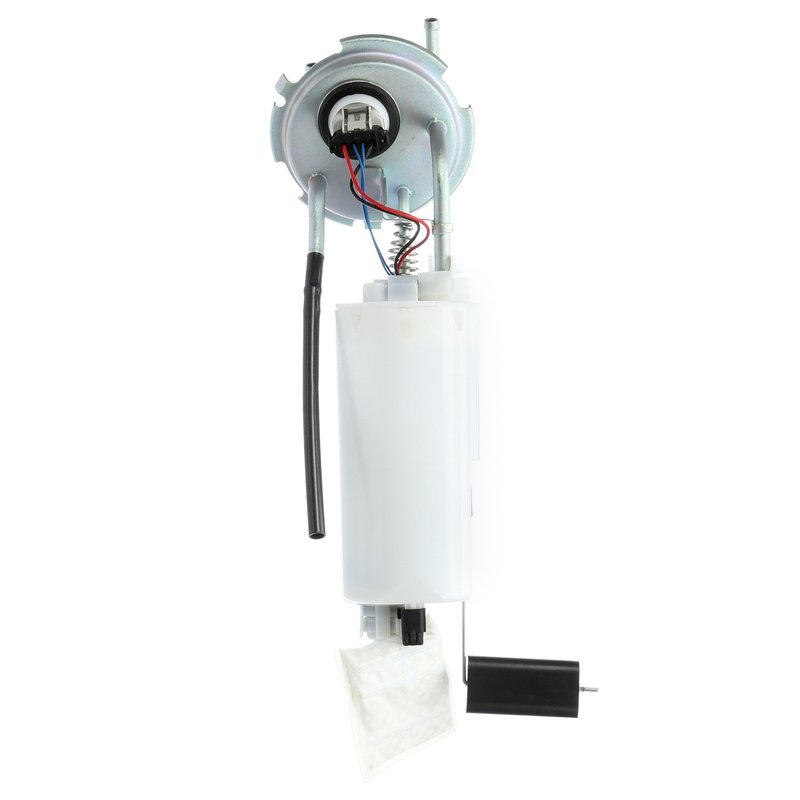

Delphi FG0195 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler, Dodge, and Plymouth

The Delphi FG0195 fuel pump module assembly is designed to provide consistent fuel delivery for select Chrysler, Dodge, and Plymouth vehicles. Engineered for in-tank installation, this electric fuel pump module supports gas fuel systems and ensures steady performance for models like the Caravan, Grand Caravan, and Town & Country.

• Compatible with Chrysler, Dodge, Plymouth Caravan, Grand Caravan, Grand Voyager, LeBaron, Town & Country, and Voyager
• Electric fuel pump with 12.0 voltage and 48 psi system pressure
• Includes fuel level sender assembly with float arm and gasket seal
• Features external strainer inlet and quick connect outlet with 0.375 inch diameter
• Three male blade terminals with 3-terminal quantity for secure electrical connection
• Average flow rating of 18 and average current draw of 14 amps
• Standard replacement grade with included instruction sheet for installation guidance

Technical Specifications and Features

The Delphi FG0195 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It delivers a system pressure of 48 psi with a maximum pressure rating of 80 psi, ensuring reliable fuel flow under various driving conditions. The pump includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating efficient fuel delivery and easy installation. The assembly comes with a fuel level sender assembly featuring a float arm, providing accurate fuel level readings. Electrical connections are made via three male blade terminals, supporting stable and secure power supply. The pump’s resistance ranges from 4.0 ohms when empty to 102.0 ohms when full, with an average current draw of 14 amps and an average flow rating of 18.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with a range of Chrysler, Dodge, and Plymouth vehicles, including:

• Chrysler Caravan and Town & Country
• Dodge Grand Caravan and Grand Voyager
• Plymouth Grand Voyager and LeBaron
• Designed specifically for in-tank installation in gas fuel systems

Common Issues Addressed by Delphi FG0195

• Fuel delivery interruptions causing engine stalling or hesitation
• Inaccurate fuel level readings due to faulty sender assembly
• Reduced fuel pressure affecting engine performance
• Electrical connection failures from worn or damaged terminals
• Clogged fuel strainers leading to restricted fuel flow

Installation Notes and Tips

Installation of the Delphi FG0195 fuel pump module assembly requires removal of the fuel tank for in-tank mounting. Ensure the gasket seal is properly seated to prevent leaks. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure. Handle the float arm carefully to avoid damage to the fuel level sender assembly. Use the included instruction sheet for detailed guidance and follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump module assembly designed to meet OEM specifications. The FG0195 part undergoes rigorous testing to ensure durability and reliable operation within specified voltage and pressure ranges. This product includes a gasket seal and strainer to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
