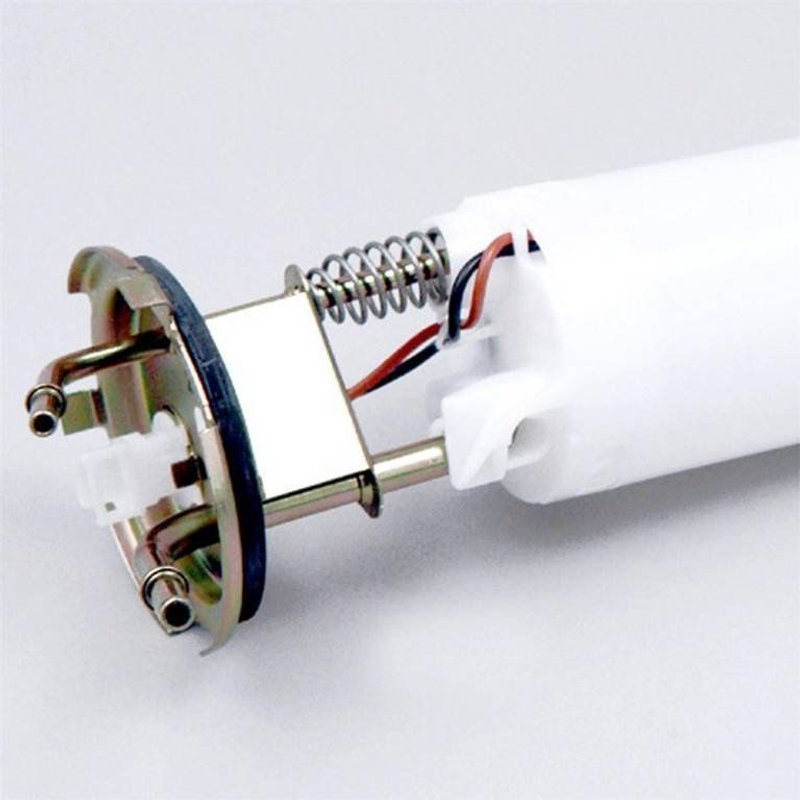

Delphi FG0196 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler, Dodge, and Plymouth

The Delphi FG0196 fuel pump module assembly is designed to provide consistent fuel delivery for select Chrysler, Dodge, and Plymouth vehicles. Engineered as a standard replacement part, this in-tank electric fuel pump ensures efficient operation and compatibility with various models including the Acclaim, Daytona, and LeBaron.

• Electric fuel pump module assembly with part number FG0196
• Compatible with Chrysler, Dodge, and Plymouth models such as Acclaim, Daytona, Dynasty, Imperial, LeBaron, New Yorker, Shadow, Spirit, and Sundance
• Operates at 12 volts with a maximum pressure of 80 psi and system pressure of 38 psi
• Includes external strainer and gasket/seal for secure installation
• Features quick connect outlet type with 0.375 inch outside diameter and two male threaded terminals
• Average flow rating of 24 and average current draw of 13 amps

Technical Details and Specifications

The Delphi FG0196 fuel pump module assembly is an electric pump designed for gasoline fuel systems. It is an in-tank type with an external strainer inlet, which helps filter fuel before it enters the pump, enhancing longevity and performance. The module includes a strainer and gasket or seal to ensure a proper fit and prevent leaks. It features two quick connect outlets with a 0.375 inch outside diameter, and two male threaded terminals for electrical connections. The pump operates at 12 volts, delivering an average flow rating of 24 and maintaining system pressure at 38 psi, with a maximum pressure rating of 80 psi. This module does not include a fuel level sender assembly or regulator, focusing solely on fuel delivery.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with a range of Chrysler, Dodge, and Plymouth vehicles, including:

• Chrysler Acclaim, Imperial, LeBaron, New Yorker
• Dodge Daytona, Dynasty, Shadow, Spirit, Sundance
• Plymouth Acclaim, Sundance

It is designed to replace the original equipment fuel pump module in these models, ensuring proper fit and function.

Common Issues Addressed by the Delphi FG0196 Fuel Pump

• Intermittent or complete fuel delivery failure
• Engine stalling or hesitation during acceleration
• Fuel pump noise or unusual sounds indicating wear
• Low fuel pressure causing poor engine performance
• Fuel leaks due to worn seals or gaskets

Installation Notes and Tips

When installing the Delphi FG0196 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The module is designed for in-tank installation and includes a gasket or seal to prevent leaks. Use appropriate tools for the quick connect outlets and threaded terminals to avoid damage. Since this module does not include a fuel level sender assembly or regulator, verify compatibility with your vehicle’s existing components. Follow the included instruction sheet carefully for proper installation procedures.

Quality Assurance and Warranty

Delphi manufactures the FG0196 fuel pump module assembly to meet standard replacement part specifications. The product includes a gasket or seal and strainer to maintain system integrity. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed quality assurance. It is recommended to verify warranty terms at the time of purchase.
