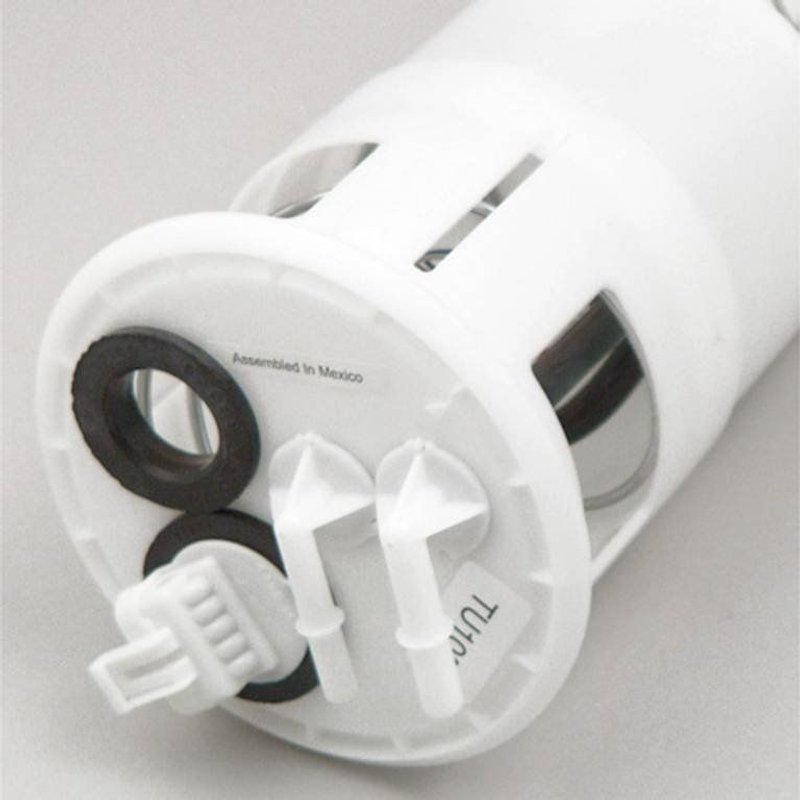

Delphi FG0200 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler and Dodge Vehicles

The Delphi FG0200 fuel pump module assembly is designed specifically for select Chrysler and Dodge models, including the Concorde, Intrepid, LHS, and New Yorker. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gas fuel systems at 12V operation
• Maximum pressure rating of 105 psi and system pressure of 44 psi
• Includes external strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Five male pin terminals for reliable electrical connections
• Average flow rating of 23 and average current draw of 8 amps

Technical Details and Features

The Delphi FG0200 fuel pump module assembly operates at 12 volts and is engineered for gas fuel systems. It features an external strainer inlet type and a quick connect outlet with two ports, each measuring 0.375 inches in outside diameter. The module includes a fuel level sender assembly with resistance values ranging from 1015 ohms (empty) to 2 ohms (full), providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a tight fit and prevent leaks. It uses five male pin terminals for electrical connections, supporting a stable current draw averaging 8 amps. The pump is rated for a maximum pressure of 105 psi and maintains a system pressure of 44 psi, suitable for the fuel delivery requirements of Chrysler Concorde, Dodge Intrepid, LHS, and New Yorker models.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chrysler Concorde
• Dodge Intrepid
• Chrysler LHS
• Dodge New Yorker

It is designed to replace the original in-tank fuel pump module, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by the Delphi FG0200

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pump noise or reduced flow affecting engine performance
• Leaks or poor sealing from worn or damaged fuel pump seals
• Electrical connection failures from corroded or damaged terminals

Installation Notes and Tips

When installing the Delphi FG0200 fuel pump module assembly, ensure the following:

• Disconnect the vehicle battery before beginning installation to prevent electrical hazards
• Use the included gasket or seal to prevent fuel leaks and ensure a secure fit
• Verify the orientation of the fuel level sender float arm for accurate fuel gauge readings
• Check all electrical connections for corrosion and secure fit on the five male pin terminals
• Follow vehicle-specific service manual instructions for removal and installation procedures

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG0200 is a standard replacement grade part designed for reliable operation in compatible Chrysler and Dodge vehicles. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for detailed warranty information.
