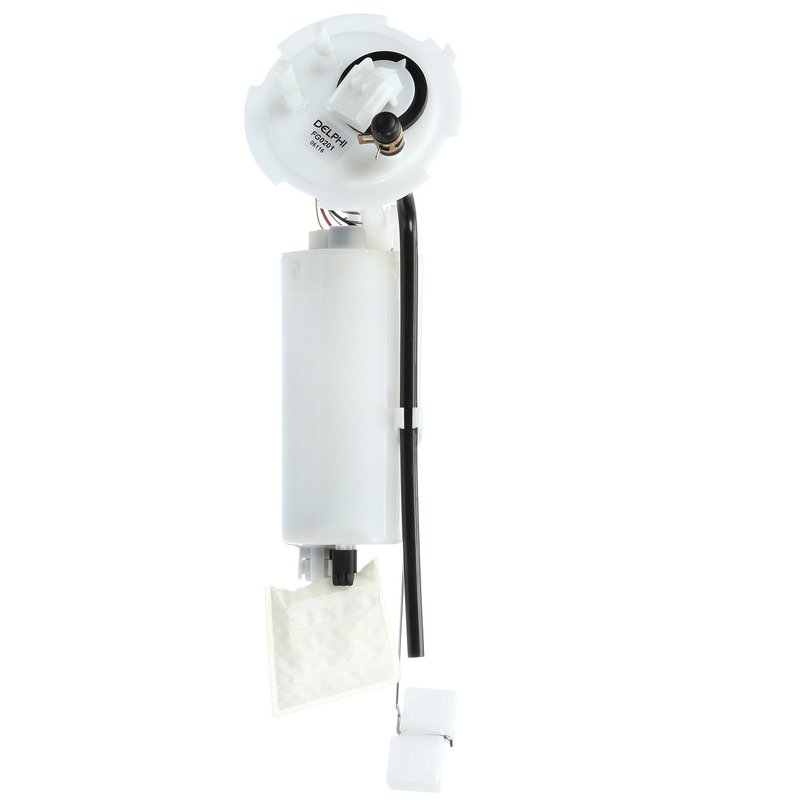

Delphi FG0201 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0201 fuel pump module assembly is designed for reliable fuel delivery in Dodge and Plymouth Neon vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Outlet outside diameter: 0.375 inches
• Voltage: 13.0 volts
• Fuel type: Gasoline compatible
• Includes fuel pressure regulator
• Maximum pressure rating: 94 psi
• Blade-type terminals, 4 male terminals
• Includes gasket, seal, and external strainer
• Quick connect outlet with 3 outlets
• In-tank pump with integrated fuel level sender assembly
• Average current draw: 8 amps, flow rating: 20 GPH
• Standard replacement grade

Technical Details and Features

The Delphi FG0201 fuel pump module assembly operates at 13 volts and is engineered for gasoline fuel systems. It features a built-in regulator to maintain system pressure at 50 psi, with a maximum pressure capacity of 94 psi. The pump uses a blade terminal type with four male terminals for secure electrical connections. The assembly includes an external strainer on the inlet side and a quick connect outlet with three outlets, facilitating efficient fuel flow and filtration. The integrated fuel level sender assembly provides accurate fuel level readings for the Dodge and Plymouth Neon models it supports.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Dodge Neon and Plymouth Neon vehicles. It is designed as a direct replacement for the original equipment fuel pump module, ensuring proper fit and function. The part number FG0201 corresponds specifically to these models, making it suitable for owners seeking a reliable fuel delivery component for their Neon.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure or inconsistent fuel flow
• Replaces faulty fuel level sender assemblies
• Eliminates fuel pump noise or failure
• Restores proper fuel system operation in Dodge and Plymouth Neon

Installation Notes and Tips

Installation of the Delphi FG0201 fuel pump module assembly requires removal of the fuel tank. Ensure the fuel system is depressurized before beginning work. The included gasket and seal should be replaced during installation to prevent leaks. Verify electrical connections match the blade terminal configuration with four male terminals. Use caution when handling the external strainer and quick connect outlets to avoid damage. Follow vehicle-specific service manual instructions for safe and proper installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet standard replacement grade specifications, ensuring dependable performance. The FG0201 assembly includes a fuel pressure regulator and fuel level sender assembly for comprehensive system functionality. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
