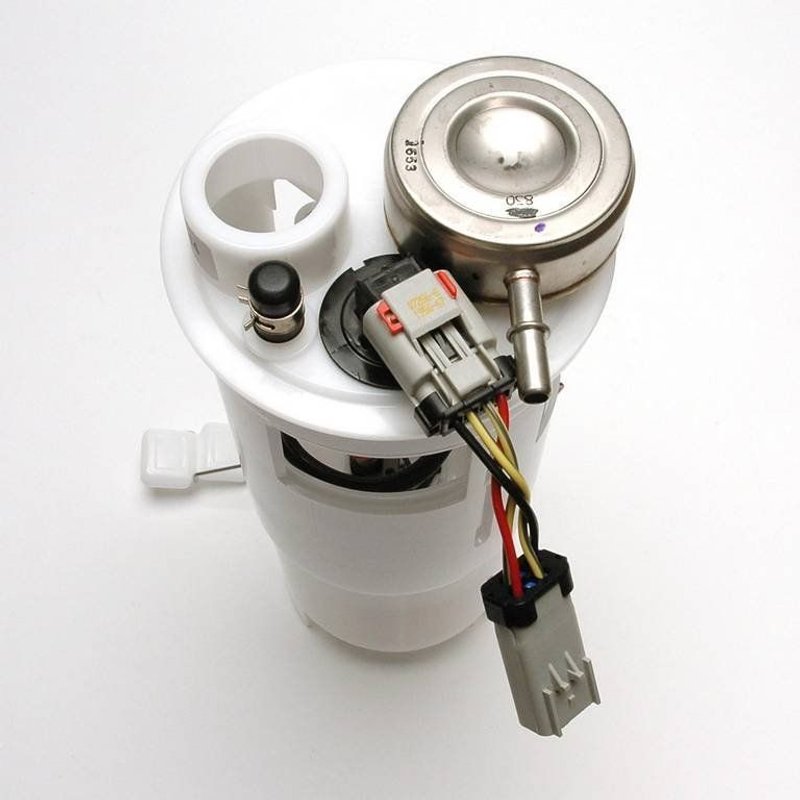

Delphi FG0212 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram Trucks

The Delphi FG0212 fuel pump module assembly is designed specifically for Dodge Ram 1500, 2500, and 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gasoline engines, supporting optimal vehicle performance.

• Compatible with Dodge Ram 1500, 2500, and 3500
• 12.0 Volt electric fuel pump module assembly
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 80 psi with system pressure at 44 psi
• Features external strainer inlet and quick connect outlet (0.375" diameter)
• Includes regulator, gasket, and strainer for complete installation
• Blade-type male terminals with 4-terminal configuration
• Average flow rating of 55 and average current draw of 5 amps

Technical Details and Features

The Delphi FG0212 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating secure and efficient fuel flow. The module includes a built-in regulator to maintain system pressure at 44 psi, with a maximum pressure capacity of 80 psi. The assembly comes with a fuel level sender assembly, including a float arm, allowing accurate fuel level readings. Electrical connections utilize four blade-type male terminals, ensuring reliable connectivity. The pump’s resistance ranges from 113 ohms when empty to 3 ohms when full, with an average current draw of 5 amps and a flow rating of 55, supporting steady fuel delivery under various operating conditions.

Applications and Problem Resolution

• Replacement for faulty or failing fuel pump modules in Dodge Ram 1500, 2500, and 3500 trucks
• Resolves issues with inconsistent fuel pressure or delivery
• Addresses inaccurate fuel level readings due to faulty sender assemblies
• Eliminates fuel pump noise or intermittent operation problems
• Prevents engine performance issues related to fuel starvation or pressure drops

Installation Notes and Tips

Installation of the Delphi FG0212 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the included blade-type male terminals and verify the gasket is properly seated to prevent leaks. The quick connect outlet simplifies fuel line attachment, but confirm secure connections to avoid fuel leaks. Follow vehicle-specific service manual instructions for safe handling of fuel system components and proper torque specifications.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump module assembly designed to meet OEM specifications for Dodge Ram trucks. The FG0212 part undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. This product includes a gasket and strainer to support proper installation and function. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
