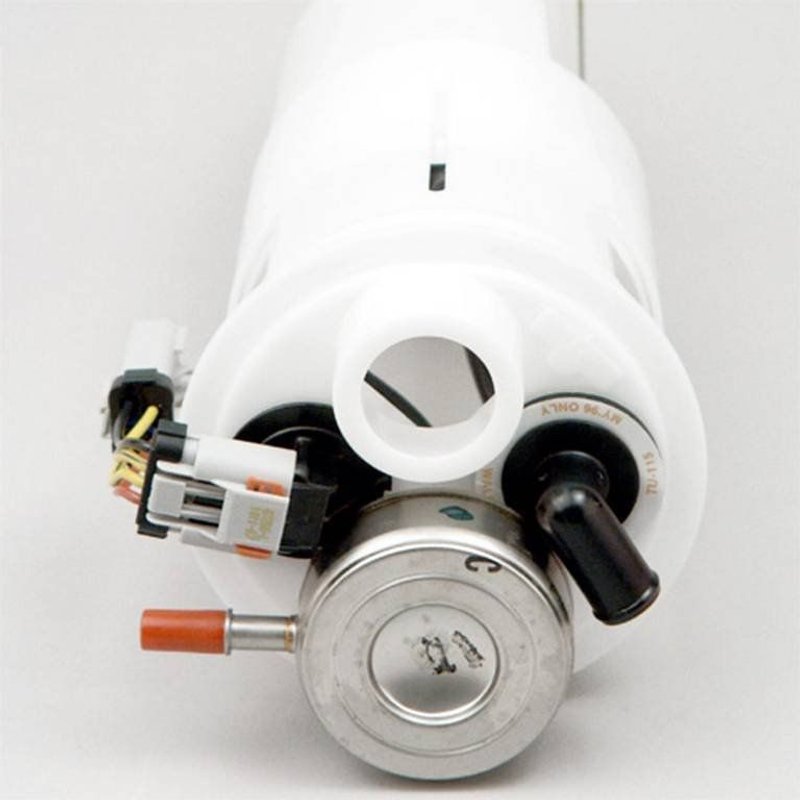

Delphi FG0213 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Dakota

The Delphi FG0213 fuel pump module assembly is designed specifically for Dodge Dakota models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gas fuel systems, designed for Dodge Dakota
• Includes regulator, gasket, and external strainer for efficient fuel filtration
• Operates at 12 volts with a system pressure of 44 psi and maximum pressure of 80 psi
• Features quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Five male pin terminals for secure electrical connections
• Standard replacement grade with included float arm and seal

Detailed Product Description

The Delphi FG0213 fuel pump module assembly is engineered as a direct replacement for Dodge Dakota vehicles requiring a reliable in-tank fuel pump solution. This electric pump operates at 12 volts and delivers an average flow rating of 26 liters per hour, maintaining a system pressure of 44 psi to ensure consistent fuel supply. The module includes a built-in fuel level sender assembly with resistance values ranging from 102 ohms (empty) to 4 ohms (full), providing accurate fuel gauge readings.

Designed with an external strainer inlet and quick connect outlet type, the module supports two outlet ports with a 0.375 inch outside diameter, facilitating efficient fuel flow and filtration. The assembly comes complete with a regulator, gasket, and strainer to maintain fuel system integrity and prevent contaminants from entering the engine. The five-pin male terminal configuration ensures secure and reliable electrical connections within the fuel system.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump modules in Dodge Dakota gas engines
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel level readings due to sender assembly failure
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection problems with secure five-pin terminals

Installation Notes and Tips

• Ensure vehicle is depressurized and battery disconnected before installation
• Use the included gasket and seal to prevent fuel leaks
• Verify correct orientation of the float arm for accurate fuel level readings
• Check electrical connections for proper pin alignment and secure fit
• Follow vehicle-specific service manual instructions for fuel pump module replacement

Quality Assurance and Warranty

The Delphi FG0213 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. Each unit undergoes rigorous testing to verify electrical resistance, flow rate, and pressure compliance. While specific warranty terms may vary, Delphi products typically include a limited warranty against defects in materials and workmanship to provide confidence in your purchase.
