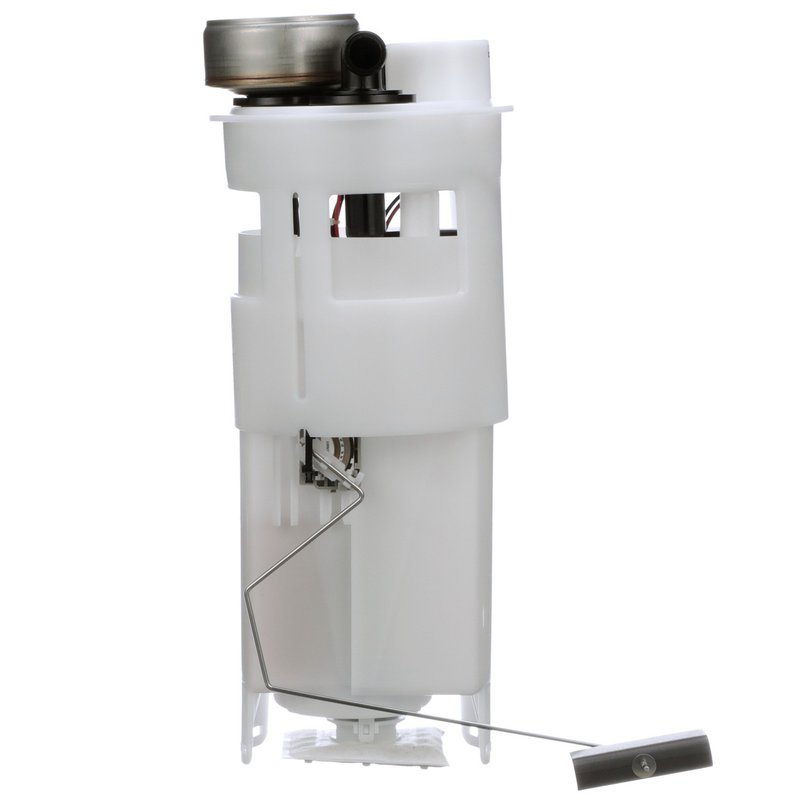

Delphi FG0214 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Dakota

The Delphi FG0214 fuel pump module assembly is designed specifically for Dodge Dakota models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel flow and pressure, supporting optimal engine performance.

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates on 12.0 volts compatible with standard vehicle electrical systems
• Designed for gasoline fuel type with integrated regulator included
• Maximum pressure rating of 80 psi and system pressure of 44 psi for stable fuel delivery
• Includes a fuel level sender assembly with float arm for accurate fuel gauge readings
• Features 5 male pin terminals for secure electrical connections
• Equipped with an external strainer inlet and quick connect outlet (2 outlets) to protect the fuel system
• Comes with gasket/seal and strainer to ensure leak-free installation
• Average current draw of 16 amps and flow rating of 26 gallons per hour

Technical Overview of Delphi FG0214 Fuel Pump Module

The Delphi FG0214 is an electric fuel pump module assembly engineered for in-tank installation in Dodge Dakota vehicles. It includes a built-in fuel pressure regulator and a fuel level sender assembly with a float arm, providing both fuel delivery and accurate fuel level monitoring. The module’s 0.375-inch outlet diameter and quick connect outlet type allow for straightforward integration with the vehicle’s fuel lines. The external strainer inlet protects the pump from debris, enhancing longevity and reliability. With a maximum pressure of 80 psi and a system pressure of 44 psi, this module maintains consistent fuel flow to support engine demands. The 5-pin male terminal configuration ensures proper electrical connectivity, while the included gasket and seal facilitate a secure, leak-free installation.

Compatible Applications and Common Issues Addressed

This fuel pump module assembly is compatible with Dodge Dakota models requiring a standard replacement electric fuel pump. It is designed to address several common fuel system issues, including:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender units
• Fuel pressure fluctuations causing engine performance problems
• Fuel pump noise or overheating from worn components
• Leaks or poor sealing in the fuel pump assembly area

Installation Notes and Tips

When installing the Delphi FG0214 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Use the included gasket and seal to prevent leaks and verify that the 5-pin male terminals are securely connected to the vehicle’s wiring harness. The quick connect outlets simplify fuel line attachment, but confirm all connections are tight to avoid fuel leaks. It is recommended to inspect the fuel strainer and replace it if clogged or damaged. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures to maintain safety and performance standards.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG0214 part number represents a standard replacement grade component designed for reliable operation in Dodge Dakota vehicles. This product includes a fuel level sender assembly and is tested for electrical and fuel delivery performance. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation to ensure proper support.
