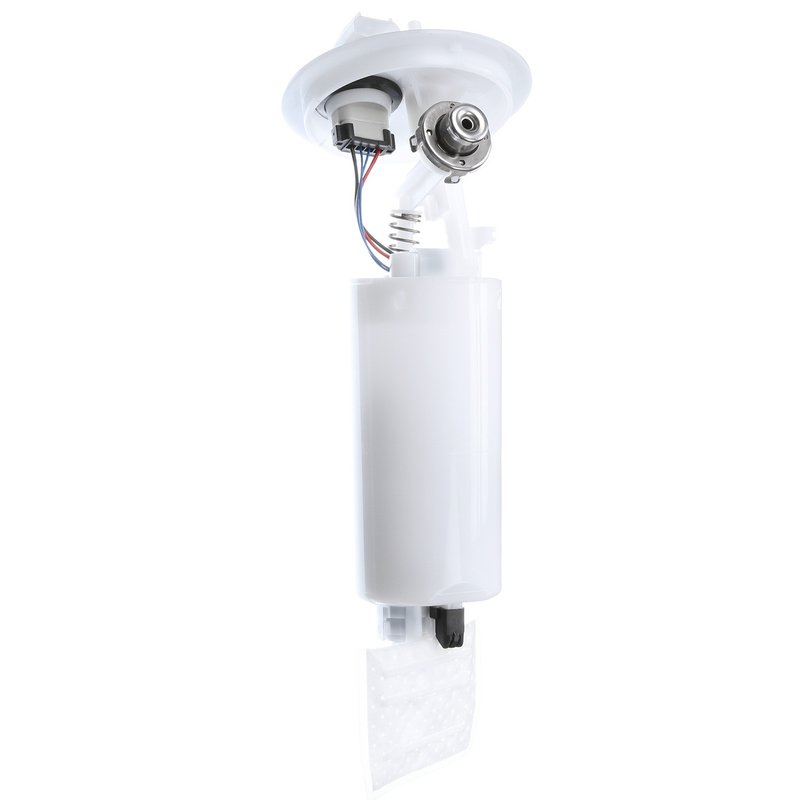

Delphi FG0215 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0215 fuel pump module assembly is designed for reliable fuel delivery in select Chrysler, Dodge, and Plymouth vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager.

• Electric fuel pump with 13.0 voltage operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 73 psi and system pressure of 49 psi
• Quick connect outlet with 0.375 inch outside diameter
• Includes regulator, gasket, and external strainer
• Blade-type male terminals with three terminal connections
• Average flow rating of 19 and average current draw of 13 amps

Technical Details and Features

The Delphi FG0215 fuel pump module assembly is engineered for gas fuel systems and features an in-tank design that helps maintain optimal fuel delivery. It includes a regulator to control fuel pressure and an external strainer to filter contaminants before fuel reaches the engine. The module comes with a gasket or seal to ensure a secure fit and prevent leaks. The quick connect outlet type with two outlets and a 0.375 inch outside diameter allows for straightforward installation and compatibility with factory fuel lines. The blade-type male terminals with three connections provide reliable electrical contact, supporting an average current draw of 13 amps. Resistance values range from 1050 ohms when empty to 70 ohms when full, ensuring accurate fuel level readings via the included fuel level sender assembly.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with various Chrysler, Dodge, and Plymouth minivans and wagons, including:

• Chrysler Caravan and Town & Country
• Dodge Grand Caravan and Grand Voyager
• Plymouth Voyager

Part number FG0215 is a standard replacement part designed to meet OEM specifications for these models, providing a direct fit and function.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops affecting engine performance and fuel efficiency
• Fuel contamination leading to clogged fuel filters or injectors
• Electrical connection failures causing pump malfunction

Installation Notes and Tips

• Ensure the vehicle’s fuel system is depressurized before removal
• Verify compatibility with your specific Chrysler, Dodge, or Plymouth model and year
• Use the included gasket or seal to prevent leaks during installation
• Handle the fuel level sender assembly carefully to avoid damage
• Check electrical connections for corrosion or damage before reassembly

Quality Assurance and Warranty

The Delphi FG0215 fuel pump module assembly is a standard replacement part manufactured to meet or exceed OEM quality standards. It includes a fuel level sender assembly, regulator, and strainer to ensure reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
