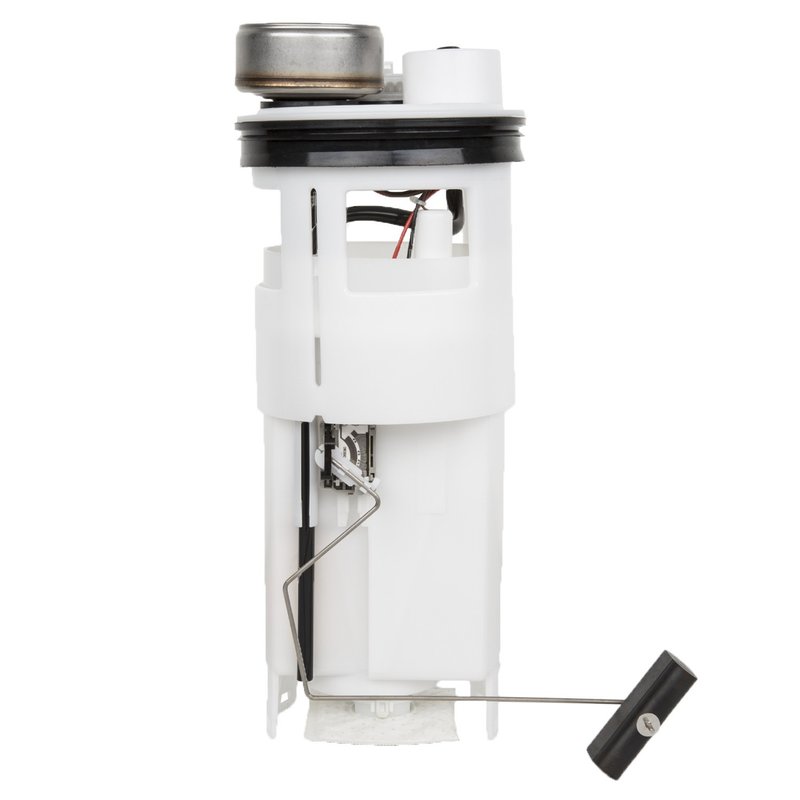

Delphi FG0219 Fuel Pump Module Assembly
| Brand | Delphi FG0219 |
|---|---|
| Average Current Draw | 6 |
| Average Flow Rating | 58 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 73.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 102.0 |
| Resistance Ohms Full | 5.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 13.0 |
| Fits | Dodge · 5 vehicles |
Standard replacement. Built as a fuel pump module assembly for straightforward service.
OE heritage. Backed by 100 years of OE experience and supplier knowledge.
Complete assembly. Includes a regulator, strainer, seal, and fuel level sender.
Cross-references Airtex Fuel Pumps E7065M, Carter P74673M and Carter P74695M for the same application. See all 21.
Fuel Pump Module for 1994 Dodge Ram
Delphi FG0219 is an in-tank fuel pump module assembly for select 1994 Dodge Ram 1500, Ram 2500, and Ram 3500 applications. Built with Delphi’s OE-focused engineering background, it combines the pump, fuel level sender, regulator, seal, and strainer in one standard replacement assembly.
Key Features
- In-tank electric fuel pump module assembly for gasoline applications
- Includes fuel level sender assembly and float arm
- Regulator included for system control
- Quick-connect outlet design with two outlets
- Strainer and gasket/seal included
- 13.0-volt operation with 6-amp average current draw
- Average flow rating of 58 and maximum pressure of 73.0
- Standard replacement design for service work on 1994 Dodge Ram 1500, Ram 2500, and Ram 3500
Detailed Description
Delphi FG0219 fuel pump module assembly is built for direct replacement service on 1994 Dodge Ram trucks listed in the fitment data. It is an in-tank, electric gasoline fuel delivery module with a pin-style terminal connection, male terminals, quick-connect outlet type, and an external strainer. The assembly also includes the fuel level sender, helping restore both fuel delivery and tank level reporting in one service part.
Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio, with engineering knowledge carried into each replacement component. For 1994 Dodge Ram 1500, Ram 2500, and Ram 3500 fuel system service, FG0219 provides the core components needed for a complete module replacement. This part cross-references Airtex Fuel Pumps E7065M for the same application.
Common Problems This Part Addresses
- Hard starting caused by weak or inconsistent fuel pressure
- Engine stalling from fuel delivery loss inside the tank
- Inaccurate fuel gauge readings from a worn sender assembly
- Fuel pressure regulation issues within the module
- Restricted fuel flow from a clogged or damaged strainer
Installation Notes and Tips
- Fits 1994 Dodge Ram 1500, 1994 Dodge Ram 2500, and 1994 Dodge Ram 3500, in-tank.
- Clean the fuel tank before installing the replacement pump to reduce the risk of seal problems and premature failure.
- Use of fuel tank cleaning kit FC01 is recommended for contaminated tanks.
- Verify outlet connection style, terminal count, and sender resistance before installation.
- Confirm the vehicle uses gasoline fuel delivery before ordering.
Quality Assurance
Delphi FG0219 is a standard replacement fuel pump module assembly backed by Delphi’s OE heritage and supplier experience with major automakers. The design reflects OE-based engineering for service replacement on select 1994 Dodge Ram trucks.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | Dodge | Ram 1500 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1994 | Dodge | Ram 1500 | N/A | 1st Design; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1994 | Dodge | Ram 2500 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1994 | Dodge | Ram 2500 | N/A | 1st Design; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1994 | Dodge | Ram 3500 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
