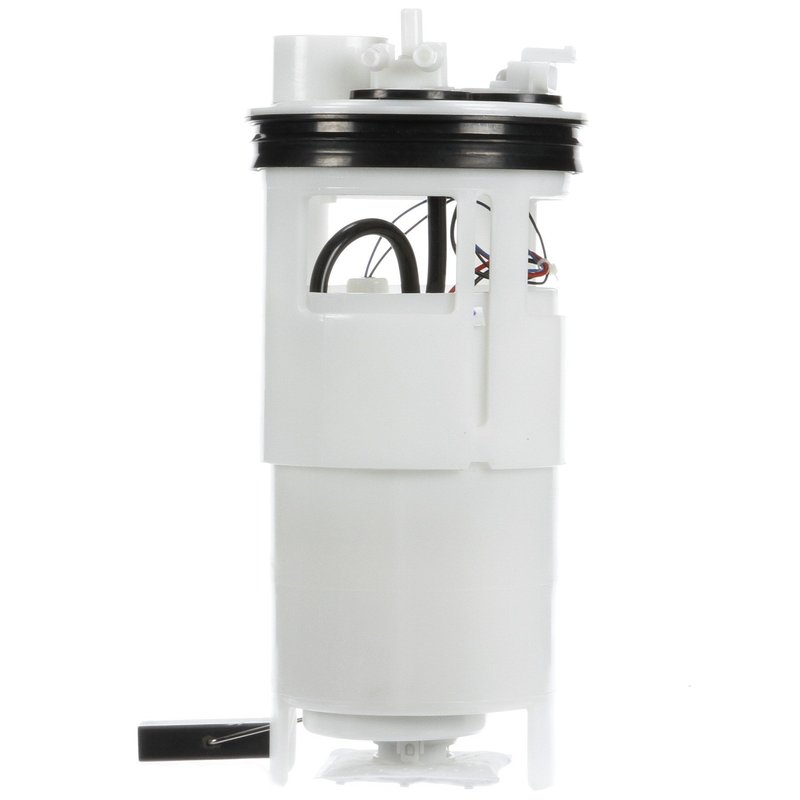

Delphi FG0221 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge B-Series Vans

The Delphi FG0221 fuel pump module assembly is designed specifically for Dodge B150, B250, and B350 models. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gas-powered vehicles.

• Electric fuel pump with 13.0 volts operating voltage
• Compatible with gas fuel type
• Includes fuel level sender assembly with float arm
• External strainer inlet type with quick connect outlet
• Maximum pressure rating of 73 psi and system pressure of 30 psi
• Five male pin terminals for secure electrical connection
• Includes gasket/seal and strainer for proper installation
• Average flow rating of 32 and average current draw of 13 amps

Technical Details and Specifications

The Delphi FG0221 fuel pump module assembly is engineered as a standard replacement part for Dodge B150, B250, and B350 vans. It features a 0.375-inch outlet outside diameter and two quick connect outlets to facilitate efficient fuel flow. The pump operates at 13 volts and delivers a maximum pressure of 73 psi, maintaining a system pressure of 30 psi to meet the fuel demands of your vehicle. The assembly includes an external strainer inlet and a strainer to protect the fuel system from contaminants. The five-pin male terminal configuration ensures reliable electrical connectivity, while the included gasket or seal helps prevent leaks during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Dodge models:

• Dodge B150
• Dodge B250
• Dodge B350

It is designed for gas-fueled engines and is an in-tank pump type, making it suitable for direct replacement in the fuel tank of these vehicles.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Fuel pressure inconsistencies affecting engine performance
• Faulty fuel level sending unit leading to inaccurate fuel gauge readings
• Contaminant buildup causing fuel flow restrictions
• Electrical connection failures due to worn or damaged terminals

Installation Notes and Tips

When installing the Delphi FG0221 fuel pump module assembly, ensure the following:

• Disconnect the vehicle battery before beginning installation to prevent electrical hazards
• Use the included gasket or seal to prevent fuel leaks
• Verify the orientation of the float arm and fuel level sender assembly for accurate fuel gauge readings
• Check all electrical connections for secure fitment of the five-pin male terminals
• Follow the vehicle manufacturer’s service manual for proper removal and installation procedures

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG0221 is a standard replacement grade part, tested for consistent fuel delivery and electrical reliability. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
