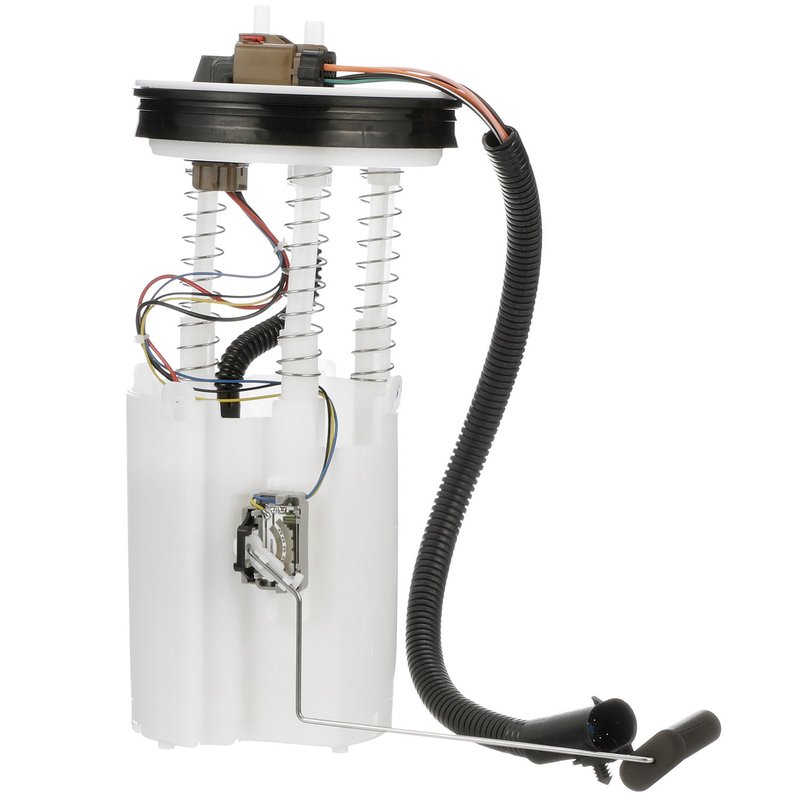

Delphi FG0222 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0222 fuel pump module assembly is designed specifically for Jeep Grand Cherokee and Grand Wagoneer models. This in-tank electric fuel pump ensures reliable fuel delivery and accurate fuel level readings for optimal engine performance.

• Outlet outside diameter: 0.375 inches
• Voltage: 13.0 volts
• Fuel type: Gasoline
• Maximum pressure: 73 psi
• Terminal type: 5-pin male connectors
• Includes gasket and internal strainer
• Quick connect outlet with two outlets
• Fuel level sender assembly included
• Average flow rating: 17 gallons per hour
• System pressure: 30 psi

Technical Details and Features

The Delphi FG0222 fuel pump module assembly operates at 13 volts and is engineered for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with two outlets, facilitating efficient fuel flow and easy installation. The module includes a fuel level sender assembly with resistance values ranging from 108 ohms empty to 1 ohm full, providing accurate fuel level readings. The pump is designed to maintain a system pressure of 30 psi with a maximum pressure capacity of 73 psi, supporting consistent fuel delivery under various driving conditions. The assembly comes with a gasket for a secure seal and uses a 5-pin male terminal configuration for reliable electrical connections.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Jeep Grand Cherokee and Grand Wagoneer models. It is intended for use in gasoline-powered vehicles requiring an in-tank electric fuel pump module. The Delphi FG0222 is a standard replacement part suitable for restoring proper fuel delivery and fuel level sensing in these specific Jeep models.

• Resolves fuel delivery interruptions or engine stalling
• Corrects inaccurate fuel gauge readings
• Replaces worn or damaged fuel pump modules
• Addresses low fuel pressure issues
• Eliminates fuel system leaks due to faulty seals

Installation Notes and Tips

When installing the Delphi FG0222 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Use the included gasket to create a secure seal and prevent leaks. Verify the 5-pin male terminals align correctly with the vehicle’s wiring harness. The quick connect outlet design allows for straightforward fuel line connections. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0222 part is a standard replacement grade component designed for durability and consistent performance. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
