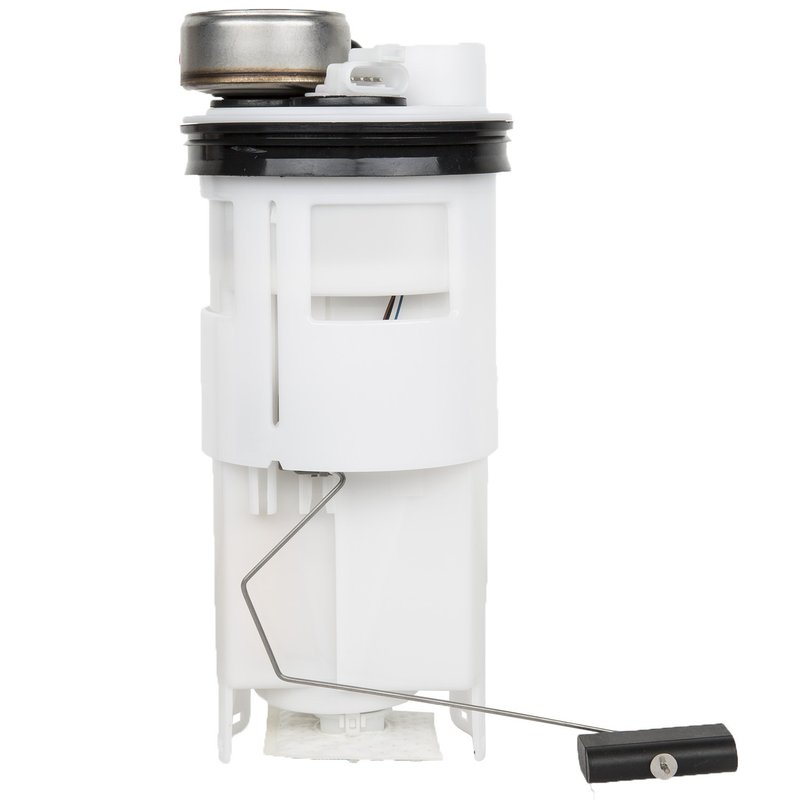

Delphi FG0224 Fuel Pump Module Assembly
| Brand | Delphi FG0224 |
|---|---|
| Average Current Draw | 6 |
| Average Flow Rating | 59 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 73.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 101.0 |
| Resistance Ohms Full | 6.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Dodge · 2 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Includes regulator and seal. Ready for installation with strainer and float arm.
OE heritage. Built from 100 years of supplier experience for aftermarket confidence.
Cross-references Airtex Fuel Pumps E7062M, Carter P74675M and Spectra Premium SP6163M for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Dakota
Delphi FG0224 is an in-tank fuel pump module assembly for 1994-1995 Dodge Dakota models with a 15 or 22 gallon tank. Built from Delphi’s OE experience, it combines the pump, fuel level sender, regulator, seal, and strainer in one replacement unit for direct service work.
Key Features
- In-tank electric fuel pump module assembly for gas applications
- Fits 1994-1995 Dodge Dakota, N/A
- Includes fuel level sender assembly, regulator, strainer, and seal
- Quick-connect outlet design with two outlets
- 12-volt operation with 44 psi system pressure and 73 psi maximum pressure
- Average flow rating of 59 and average current draw of 6
- Male pin terminals, 5-terminal configuration
- Standard replacement grade from Delphi FG0224
Detailed Description
Delphi FG0224 fuel pump module assembly is engineered for fuel delivery service on the 1994-1995 Dodge Dakota with a 15 or 22 gallon tank. It is an in-tank, electric gasoline pump module with the regulator included, a quick-connect outlet, and a fuel level sender assembly for a complete tank-side replacement. Delphi’s OE heritage and supplier experience are reflected in the design and component selection, making this a practical choice for restoring fuel pressure and fuel level reporting. This part cross-references Airtex Fuel Pumps E7062M for the same application.
Common Issues This Part Addresses
- Hard starting caused by low fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge readings that no longer match tank level
- Loss of pump prime after extended sitting
- Fuel starvation under load or during acceleration
Installation Notes and Tips
Fits 1994-1995 Dodge Dakota, N/A, with 15 or 22 gallon tank. Before installing Delphi FG0224, clean the fuel tank to reduce the risk of contamination reaching the new pump. Delphi recommends using fuel tank cleaning kit FC01. Confirm connector style, outlet routing, and tank configuration before installation.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-based engineering knowledge developed over decades of supplying major automakers. The FG0224 is a standard replacement part designed to meet the demands of everyday fuel system service.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 1995 | Dodge | Dakota | GAS | N/A | with 15 or 22 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1994 | Dodge | Dakota | — | N/A | with 15 or 22 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
