Delphi FG0225 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

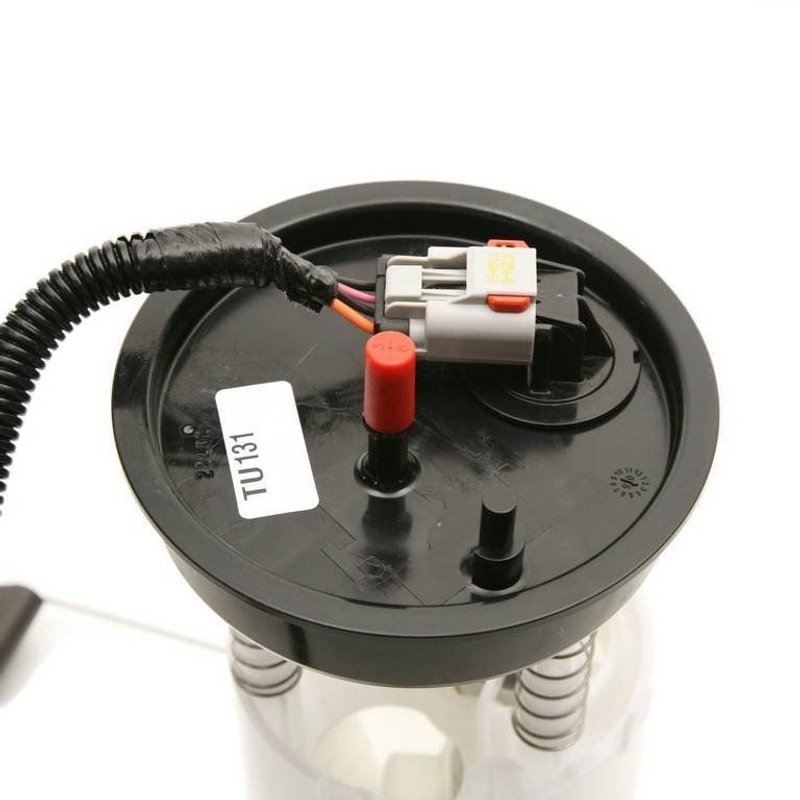

Delphi FG0225 Fuel Pump Module Assembly

Brand Delphi FG0225
Average Current Draw 7
Average Flow Rating 29
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included Yes
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 80.0
Outlet Outside Diameter 0.375
Outlet Quantity 2
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 223.0
Resistance Ohms Full 20.0
Strainer Included Yes
System Pressure 49 psi
Terminal Gender Male
Terminal Quantity 4
Terminal Type Blade
Vapor Pressure Sensor No
Voltage 12.0
Fits Jeep · 2 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

OE heritage. Built with 100 years of OE experience and supplier knowledge.

Complete assembly. Includes regulator, strainer, seal, and fuel level sender.

Cross-references Airtex Fuel Pumps E7099M, DENSO Auto Parts 953-3048 and Four Seasons 67646 for the same application. See all 15.

$119.22Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $119.22
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG0225 Fuel Pump Module Assembly

Delphi FG0225 is a standard replacement fuel pump module assembly for gasoline applications, built for in-tank service and equipped with an integrated fuel level sender, regulator, seal, and strainer. It is a direct-fit option for the 1996 Jeep Grand Cherokee and supports consistent fuel delivery for drivability and starting performance.

Key Features

  • In-tank electric fuel pump module assembly for gas fuel systems
  • Includes fuel level sender assembly, regulator, gasket or seal, and strainer
  • Quick-connect outlet design with two outlets and blade terminals
  • 12-volt operation with a maximum pressure rating of 80.0
  • Average flow rating of 29 and average current draw of 7
  • Standard replacement part engineered from Delphi OE heritage and application knowledge

Application Details

Fits 1996 Jeep Grand Cherokee, N/A. Delphi FG0225 is built for the fuel tank environment and uses an internal strainer, male blade terminals, and a 4-terminal electrical connection. The module includes a fuel level sender assembly with resistance values of 223 ohms empty and 20 ohms full, helping maintain accurate fuel gauge operation in the vehicle.

This part cross-references Airtex Fuel Pumps E7099M and Spectra Premium SP7099M for the same application. The FG0225 part number is also commonly referenced in interchange listings for related OE-style fuel system service.

What It Helps Address

  • Hard starting caused by weak or failing fuel delivery
  • Engine hesitation or stalling from inconsistent pump output
  • Inaccurate fuel gauge readings from a worn sender
  • Fuel pressure loss in gasoline in-tank systems
  • Fuel system service needs after tank contamination

Installation Notes

Before installing this Delphi fuel pump module assembly, clean the fuel tank thoroughly to help prevent future seal problems. Verify electrical connector style, outlet configuration, and fuel system pressure requirements before installation. The module is supplied with a seal and instruction sheet; no lock ring is included.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplier knowledge used by major automakers. That OE background is reflected in the FG0225 fuel pump module assembly, which is built as a standard replacement for the 1996 Jeep Grand Cherokee and related fuel system service needs.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
1996JeepGrand CherokeeLimitedN/AClean fuel tank before installing fuel pump to prevent future seal problems.
1996JeepGrand CherokeeLaredoN/AClean fuel tank before installing fuel pump to prevent future seal problems.
Directly replaces or cross-references 15 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E7099MDENSO Auto Parts — 953-3048Four Seasons — 67646Spectra Premium — SP7099M4856 2605003 867AA5003857AA5003867AC25320299A30096AFS0495SDFG0225MU198P74708MRE0495S
