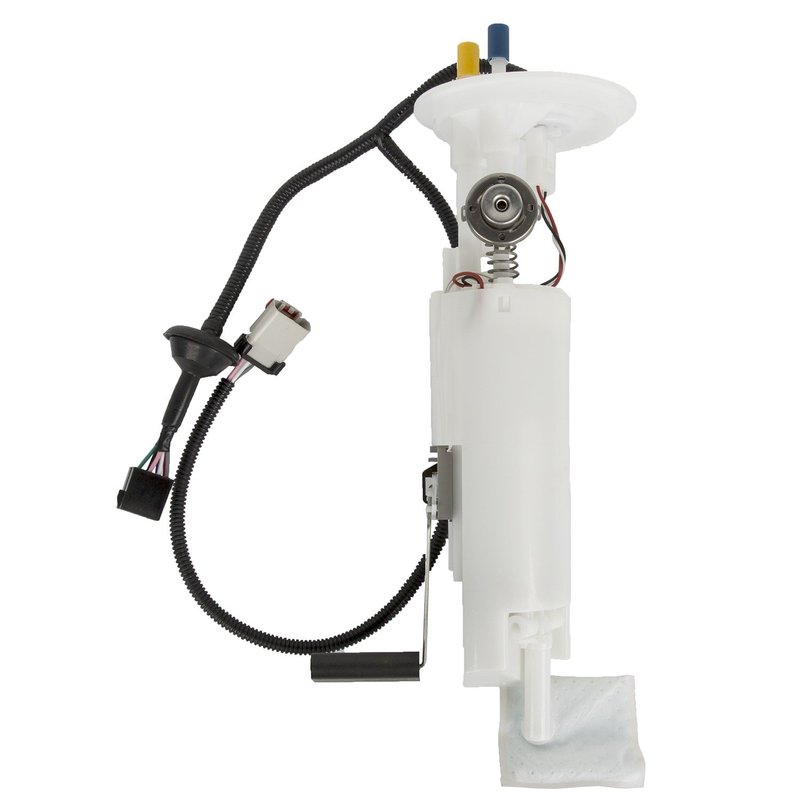

Delphi FG0228 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler, Dodge, and Plymouth

The Delphi FG0228 fuel pump module assembly is designed to provide consistent fuel delivery for Chrysler, Dodge, and Plymouth vehicles including the Breeze, Cirrus, Sebring, and Stratus models. This in-tank electric fuel pump module ensures proper fuel pressure and flow for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gas fuel systems at 12 volts
• Includes regulator, gasket, and external strainer for efficient fuel filtration
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Standard replacement grade with 7-pin female terminals
• Designed for system pressure of 44 psi and maximum pressure of 93 psi
• Average flow rating of 23 gallons per hour and average current draw of 6 amps

Technical Details and Features

The Delphi FG0228 fuel pump module assembly is engineered for in-tank installation, featuring an external strainer inlet type to protect the pump from contaminants. It operates at 12 volts and is compatible with gasoline fuel systems. The module includes a fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump’s quick connect outlet type with two outlets and a 0.375 inch outside diameter ensures secure and efficient fuel delivery. The assembly comes with a gasket or seal to maintain a proper fit and prevent leaks. The 7-pin female terminal configuration supports reliable electrical connections, with resistance values ranging from 60 ohms full to 1053 ohms empty, ensuring accurate fuel level sensor readings.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Chrysler Breeze
• Dodge Cirrus
• Plymouth Breeze
• Chrysler Sebring
• Dodge Stratus

It is designed to replace the original fuel pump module in these vehicles, restoring proper fuel pressure and flow for smooth engine operation.

Common Issues Addressed by the Delphi FG0228 Fuel Pump Module

• Engine stalling or hesitation due to inconsistent fuel delivery
• Fuel pump failure causing no-start conditions
• Inaccurate fuel level readings from a faulty sender assembly
• Fuel leaks caused by worn seals or gaskets
• Reduced fuel pressure affecting engine performance

Installation Notes and Tips

When installing the Delphi FG0228 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. Verify the 7-pin female terminal connections match the vehicle wiring harness. Use the included gasket or seal to prevent leaks and confirm the external strainer is properly positioned to avoid debris intake. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions. This module is designed for in-tank installation and requires careful handling to avoid damage to the float arm and fuel level sender assembly.

Quality Assurance and Warranty

The Delphi FG0228 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications. It undergoes rigorous testing to ensure reliable fuel delivery and accurate fuel level sensing. Delphi provides a limited warranty covering defects in materials and workmanship, supporting long-term durability and performance in Chrysler, Dodge, and Plymouth vehicles.
