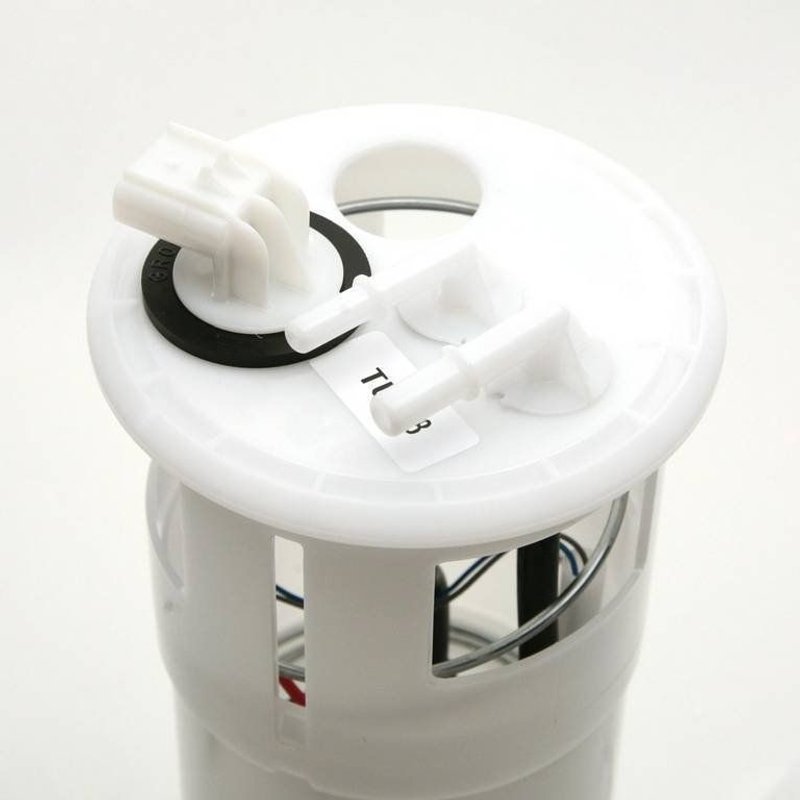

Delphi FG0230 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler and Dodge Vehicles

The Delphi FG0230 fuel pump module assembly is designed specifically for select Chrysler and Dodge models, including the Concorde, Intrepid, LHS, and New Yorker. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes external strainer and gasket for secure installation
• Quick connect outlet with 0.375-inch outside diameter and dual outlet ports
• Blade-type male terminals with four terminal connections
• Standard replacement grade with average flow rating of 23 and system pressure of 44 psi

Technical Specifications and Features

The Delphi FG0230 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with two ports, each having an outside diameter of 0.375 inches. The pump delivers an average flow rating of 23 and maintains a system pressure of 44 psi, with a maximum pressure rating of 73 psi. The assembly includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The four blade-type male terminals ensure reliable electrical connections, and the included gasket helps maintain a proper seal within the fuel tank. This module is intended as a standard replacement part for in-tank fuel delivery systems in compatible Chrysler and Dodge vehicles.

Compatible Vehicles and Applications

• Chrysler Concorde fuel pump replacement
• Dodge Intrepid fuel pump module assembly
• Chrysler LHS in-tank fuel pump solution
• Dodge New Yorker fuel delivery component

This fuel pump module assembly is engineered to address common fuel delivery issues such as inconsistent fuel pressure, fuel pump failure, inaccurate fuel level readings, and fuel contamination due to strainer damage.

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Chrysler or Dodge model and year
• Use the included gasket to maintain a proper seal and prevent fuel leaks
• Handle the fuel level sender assembly carefully to avoid damage to the float arm
• Follow manufacturer instructions for torque specifications on mounting components

Quality Assurance and Warranty

The Delphi FG0230 fuel pump module assembly is manufactured to meet standard replacement quality requirements. It includes a gasket and strainer to ensure proper function and durability. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or your supplier for exact warranty terms.
