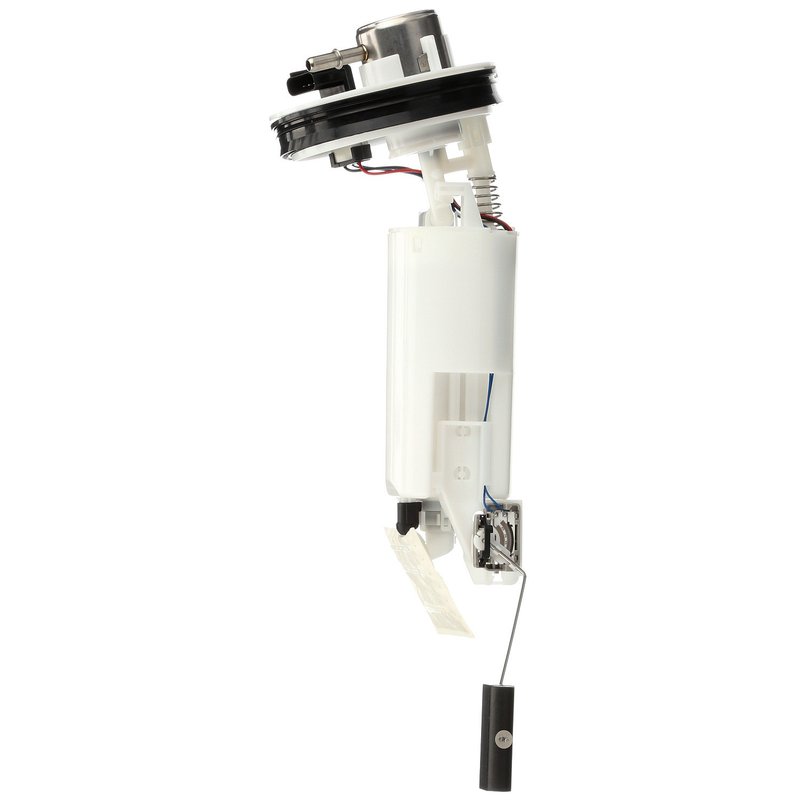

Delphi FG0231 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge and Plymouth Neon

The Delphi FG0231 fuel pump module assembly is designed specifically for Dodge and Plymouth Neon models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for gasoline engines requiring a 12-volt power supply.

Key Features of Delphi FG0231 Fuel Pump Module

• Electric fuel pump with a 12.0-volt rating suitable for gas engines
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Maximum pressure rating of 73 psi and system pressure of 49 psi for stable fuel flow
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Four male blade terminals for secure electrical connections
• Includes regulator, gasket, and external strainer for comprehensive fuel system protection
• Average flow rating of 19 and average current draw of 13 amps
• Standard replacement grade designed for direct fit and reliable operation

Detailed Description of the Delphi FG0231 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0231) is engineered as an in-tank electric pump compatible with Dodge and Plymouth Neon vehicles. It features a quick connect outlet and an external strainer inlet type to ensure clean fuel delivery. The included fuel level sender assembly with float arm provides accurate fuel gauge readings, while the built-in regulator maintains system pressure at 49 psi, with a maximum pressure capacity of 73 psi. The module’s four male blade terminals facilitate straightforward electrical connections, and the package includes a gasket and strainer to help maintain fuel system integrity. Designed as a standard replacement part, this module supports the Neon’s fuel system requirements with a resistance range from 70 ohms (full) to 1050 ohms (empty), ensuring proper fuel level sensor operation.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Dodge and Plymouth Neon models experiencing fuel starvation
• Resolves inaccurate fuel gauge readings due to faulty fuel level sender assembly
• Replaces worn or damaged in-tank fuel pump modules to improve engine performance
• Addresses fuel pressure inconsistencies caused by failing regulators within the fuel pump assembly
• Eliminates fuel system contamination with included external strainer and gasket

Installation Notes and Tips

• Ensure vehicle compatibility with Dodge and Plymouth Neon models before installation
• Disconnect the battery and relieve fuel system pressure prior to removal of the old fuel pump module
• Handle the fuel level sender assembly carefully to avoid damage to the float arm
• Use the included gasket to prevent fuel leaks and ensure a proper seal
• Verify all electrical connections are secure on the four male blade terminals

Quality Assurance and Warranty Information

The Delphi FG0231 fuel pump module assembly is manufactured to meet OEM specifications for Dodge and Plymouth Neon vehicles. It undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. This standard replacement part comes with a limited warranty covering defects in materials and workmanship, providing confidence in its long-term functionality.
