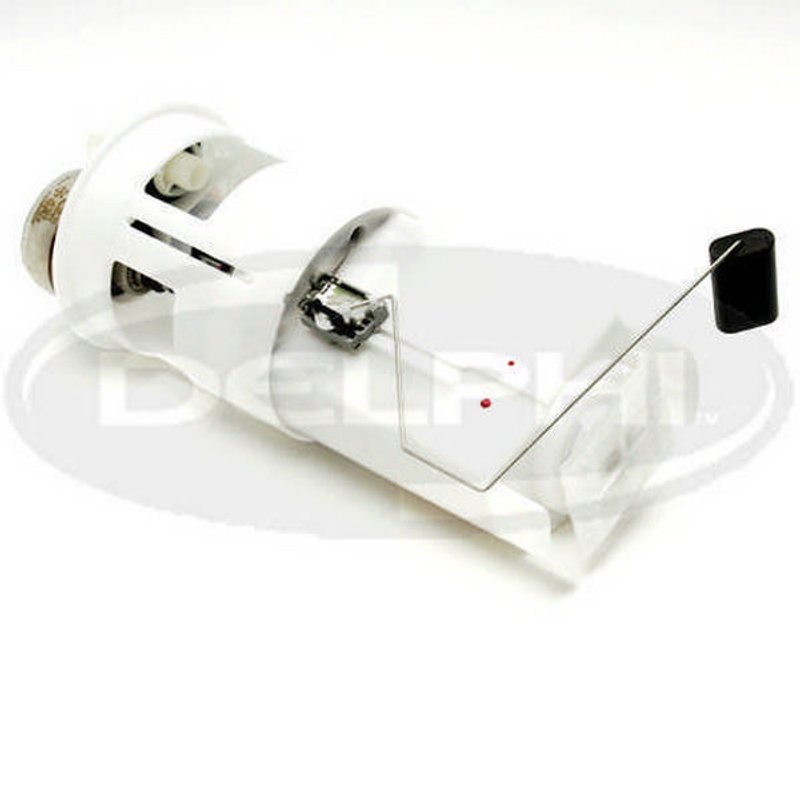

Delphi FG0233 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge B-Series Trucks

The Delphi FG0233 fuel pump module assembly is designed specifically for Dodge B1500, B2500, and B3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gasoline engines, supporting optimal vehicle performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Dodge B1500, B2500, and B3500 trucks
• 12-volt operation with a maximum pressure of 51 psi and system pressure of 49 psi
• Includes regulator, gasket, and external strainer for reliable fuel filtration
• Quick connect outlet with 0.375-inch outside diameter and blade-type male terminals (4 terminals)
• Average flow rating of 26 and average current draw of 16 amps

Technical Details and Features

The Delphi FG0233 fuel pump module assembly is engineered for standard replacement applications in Dodge B-series trucks. It operates at 12 volts and delivers a maximum pressure of 51 psi, maintaining a system pressure of 49 psi to ensure steady fuel flow. The module includes a built-in fuel level sender assembly with resistance values ranging from 102 ohms (empty) to 4 ohms (full), providing accurate fuel level readings. The pump features an external strainer inlet and a quick connect outlet with two outlets measuring 0.375 inches in diameter, facilitating easy installation and secure fuel line connections. The assembly comes with a gasket and strainer to protect the fuel system from contaminants, and the regulator is included to maintain consistent fuel pressure. The blade-type male terminals (four in total) support reliable electrical connections.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Dodge models:

• Dodge B1500
• Dodge B2500
• Dodge B3500

It is designed for gasoline fuel systems and intended for in-tank installation, making it suitable for standard replacement needs in these trucks.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure fluctuations affecting engine performance
• Contaminated fuel supply leading to clogged injectors or poor combustion
• Electrical connection failures resulting in pump malfunction

Installation Notes and Tips

When installing the Delphi FG0233 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Use the included gasket to create a secure seal and prevent leaks. Verify that the blade-type male terminals are correctly connected to avoid electrical issues. The quick connect outlet simplifies fuel line attachment, but confirm all connections are tight. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures to maintain safety and system integrity.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0233 is a standard replacement grade part, designed to provide reliable operation within the specified parameters. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
