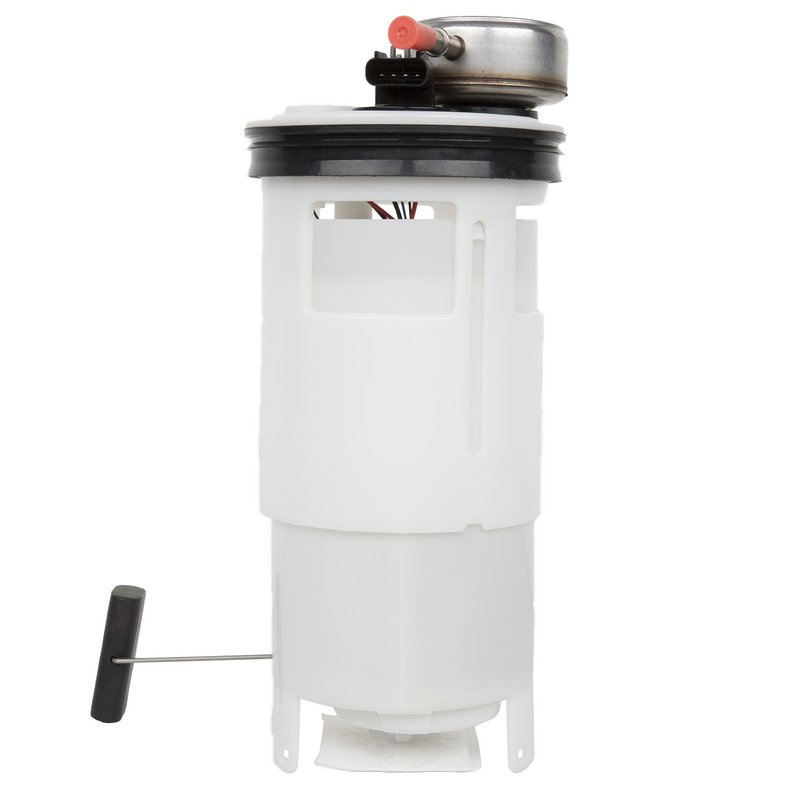

Delphi FG0234 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Dakota

The Delphi FG0234 fuel pump module assembly is designed specifically for Dodge Dakota models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel flow and pressure, supporting optimal engine performance.

• Electric fuel pump with 12.0-volt operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 73 psi and system pressure of 49 psi
• Compatible with gasoline fuel type
• Features a 0.375-inch outlet outside diameter with quick connect outlet
• Includes regulator, gasket, and external strainer for efficient fuel filtration
• Four male blade terminals for secure electrical connections
• Average flow rating of 28 and average current draw of 6 amps

Technical Details and Features

The Delphi FG0234 fuel pump module assembly is engineered as a standard replacement part for Dodge Dakota vehicles. It operates at 12 volts and is designed for gasoline fuel systems. The module includes an integrated fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump features a maximum pressure of 73 psi and maintains a system pressure of 49 psi to ensure steady fuel delivery under various driving conditions.

This in-tank electric fuel pump has a 0.375-inch outlet diameter with a quick connect outlet type, facilitating straightforward installation and secure fuel line connections. The assembly includes a regulator and an external strainer to protect the fuel system from contaminants. Electrical connections are made via four male blade terminals, ensuring reliable power delivery to the pump.

Compatible Vehicles and Applications

• Designed for Dodge Dakota models requiring a fuel pump module assembly
• Ideal for replacing faulty or worn fuel pumps causing fuel delivery issues
• Addresses problems such as engine stalling, poor acceleration, and fuel gauge inaccuracies
• Restores proper fuel pressure and flow for consistent engine performance

Installation Notes and Tips

Installation of the Delphi FG0234 fuel pump module assembly should be performed with care to avoid damage to the fuel system components. Ensure the vehicle’s battery is disconnected before beginning installation. The included gasket and seal must be properly seated to prevent fuel leaks. Use appropriate tools to connect the quick connect outlet securely and verify all electrical terminals are firmly attached. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part meeting OEM specifications for Dodge Dakota vehicles. The product includes a fuel level sender assembly and necessary seals to ensure reliable operation. While specific warranty details are not provided here, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for complete warranty information.
