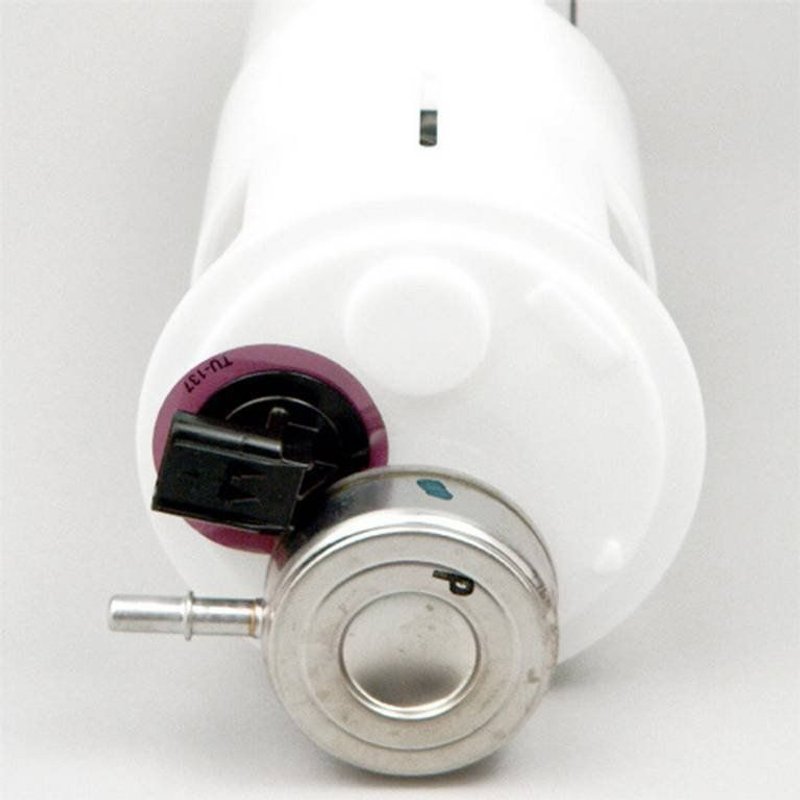

Delphi FG0235 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Dakota

The Delphi FG0235 fuel pump module assembly is designed specifically for Dodge Dakota models requiring a dependable in-tank fuel delivery solution. Engineered to meet standard replacement specifications, this electric fuel pump module ensures consistent fuel flow and pressure for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• External strainer inlet and quick connect outlet (0.375 inch diameter)
• Maximum pressure rating of 73 psi and system pressure of 49 psi
• Four male blade terminals for secure electrical connections
• Includes gasket and seal for proper installation
• Average flow rating of 28 gallons per hour and average current draw of 6 amps

Technical Details and Features

The Delphi FG0235 fuel pump module assembly is an electric pump designed for in-tank installation in Dodge Dakota vehicles. It operates at 12 volts and is compatible with gasoline fuel types. The module includes a built-in fuel pressure regulator to maintain system pressure at 49 psi, with a maximum pressure capacity of 73 psi. The pump features a quick connect outlet with a 0.375-inch outside diameter, facilitating straightforward fuel line connections.

This assembly comes equipped with an external strainer inlet to protect the pump from debris, and a fuel level sender assembly with a float arm to provide accurate fuel gauge readings. Electrical connections are made via four male blade terminals, ensuring reliable power delivery. The package includes a gasket and seal to prevent leaks during installation.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pumps in Dodge Dakota models
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel level readings due to sender assembly failure
• Eliminates fuel delivery interruptions caused by clogged strainers
• Addresses electrical connection issues with blade terminal design

Installation Notes and Tips

Installation of the Delphi FG0235 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the gasket and seal included are properly seated to prevent fuel leaks. Verify electrical connections to the four male blade terminals are secure and free of corrosion. Use caution when handling the float arm to avoid damage to the fuel level sender assembly. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty Information

Delphi manufactures the FG0235 fuel pump module assembly to meet standard replacement quality standards. Each unit undergoes rigorous testing to ensure consistent fuel delivery and pressure regulation. This product includes a manufacturer-backed warranty covering defects in materials and workmanship, providing confidence in its reliability for Dodge Dakota fuel system repairs.
