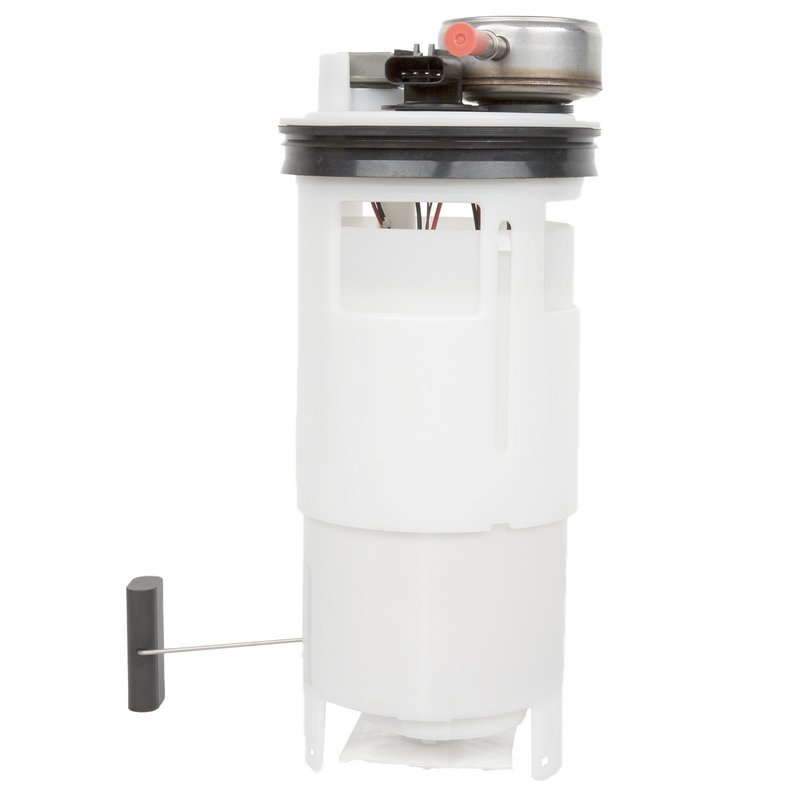

Delphi FG0237 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram Trucks

The Delphi FG0237 fuel pump module assembly is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gasoline engines, supporting optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Dodge Ram 1500, 2500, and 3500 models
• 12.0 Volt operation with a maximum pressure of 73 psi and system pressure of 49 psi
• Includes regulator, external strainer, gasket, and fuel pump float arm
• Quick connect outlet with 0.375 inch outside diameter and blade-type male terminals (4 terminals)
• Average flow rating of 31 and average current draw of 6 amps

Technical Details and Features

The Delphi FG0237 fuel pump module assembly is engineered for gasoline-powered Dodge Ram trucks, providing a standard replacement solution. It features a 12-volt electric pump with a maximum pressure rating of 73 psi and a system pressure of 49 psi, ensuring steady fuel flow under various operating conditions. The module includes a built-in fuel level sender assembly with resistance values ranging from 223 ohms (empty) to 20 ohms (full), allowing accurate fuel gauge readings.

This assembly comes with an external strainer on the inlet side and a quick connect outlet type with two outlets, each having a 0.375-inch outside diameter. The four blade-type male terminals facilitate secure electrical connections. A gasket and seal are included to maintain a proper fit and prevent leaks during installation.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Dodge Ram 1500, 2500, and 3500 trucks
• Addresses issues with inconsistent fuel pressure or flow leading to engine hesitation or stalling
• Resolves inaccurate fuel level readings caused by a malfunctioning fuel sender assembly
• Eliminates fuel leaks by providing a new gasket and seal
• Improves overall fuel delivery system reliability in gasoline-powered Dodge Ram trucks

Installation Notes and Tips

Installation of the Delphi FG0237 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is parked on a level surface and the battery is disconnected before beginning. Handle the fuel pump and sender assembly carefully to avoid damage to the float arm and electrical terminals. Replace the gasket and seal included in the package to ensure a proper seal. Verify all electrical connections are secure and free of corrosion before reassembly.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Dodge Ram 1500, 2500, and 3500 models. The product includes a fuel level sender assembly and regulator to maintain system integrity. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation for exact warranty terms.
