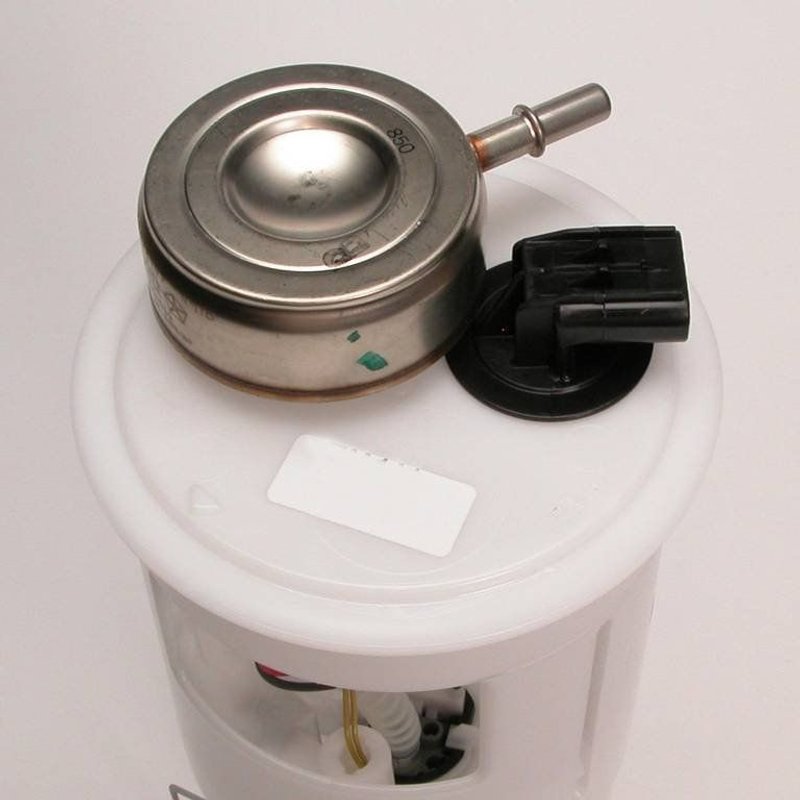

Delphi FG0239 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Vans and Trucks

The Delphi FG0239 fuel pump module assembly is designed for precise fuel delivery in Dodge B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models. This in-tank electric fuel pump ensures consistent fuel pressure and flow for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems at 12.0 volts
• Includes regulator, gasket, and external strainer for clean fuel delivery
• Quick connect outlet with 0.375 inch outside diameter
• Designed for system pressure of 49 psi and maximum pressure of 73 psi
• Blade-type male terminals with four connections for secure wiring
• Standard replacement grade for Dodge B1500, B2500, B3500, and Ram Van series

Technical Details and Features

The Delphi FG0239 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with a 0.375-inch diameter, ensuring efficient fuel flow rated at an average of 31 liters per hour. The module includes a built-in fuel pressure regulator maintaining system pressure at 49 psi, with a maximum pressure capacity of 73 psi. The assembly comes with a fuel level sender assembly and a gasket for proper sealing within the fuel tank. Electrical connections use four blade-type male terminals, providing reliable and secure connectivity. The pump’s resistance ranges from 220 ohms when empty to 20 ohms when full, with an average current draw of 16 amps.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Dodge models:

• Dodge B1500
• Dodge B2500
• Dodge B3500
• Dodge Ram 1500 Van
• Dodge Ram 2500 Van
• Dodge Ram 3500 Van

It is designed to replace the original in-tank fuel pump module, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by Delphi FG0239

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure irregularities affecting engine performance
• Fuel contamination from clogged strainers reducing pump efficiency
• Electrical connection failures causing pump malfunction

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your Dodge B1500, B2500, B3500, or Ram Van model year and engine type
• Replace the gasket included in the package to maintain a proper seal and prevent leaks
• Handle the fuel pump module carefully to avoid damage to the strainer and electrical terminals
• Follow the vehicle manufacturer’s service manual for fuel tank removal and installation procedures

Quality Assurance and Warranty

The Delphi FG0239 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable operation and durability. Delphi provides quality assurance backed by industry standards, although specific warranty terms should be confirmed at the point of purchase or with the manufacturer.
