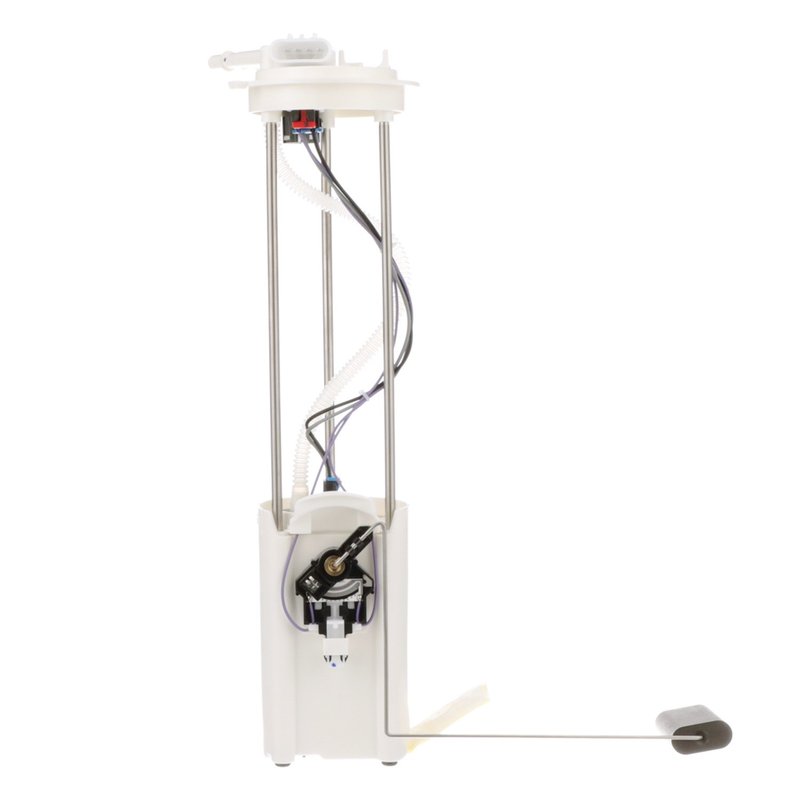

Delphi FG0246 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG0246 fuel pump module assembly is designed specifically for Chevrolet Silverado 3500 and GMC Sierra 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gas-powered vehicles.

• 12.0 Volt electric fuel pump with an average flow rating of 24
• Compatible with gas fuel type and designed for in-tank installation
• Includes internal strainer and fuel level sender assembly with float arm
• Features a 0.375 inch outlet outside diameter with quick connect outlet type
• Equipped with 4 male blade terminals and comes with a gasket or seal
• System pressure rated at 62 psi with a maximum pressure of 109 psi
• Standard replacement grade with included splice kit and installation instructions

Technical Details and Performance Specifications

The Delphi FG0246 fuel pump module assembly operates at 12 volts and is engineered for gas fuel systems in Chevrolet Silverado 3500 and GMC Sierra 3500 trucks. It features an internal strainer inlet type and a quick connect outlet with three outlets, ensuring efficient fuel flow and filtration. The pump’s resistance ranges from 40 ohms when empty to 250 ohms when full, supporting reliable electrical performance. The assembly includes a fuel level sender assembly with a float arm for accurate fuel gauge readings. With an average current draw of 10 amps and a system pressure of 62 psi, this electric pump module maintains steady fuel delivery under various driving conditions.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Silverado 3500
• GMC Sierra 3500

It is designed to replace the original equipment fuel pump module in these models, ensuring proper fit and function.

Common Issues Addressed by the Delphi FG0246 Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or reduced fuel pressure affecting engine performance
• Clogged fuel strainer leading to restricted fuel flow
• Electrical connection problems from worn or damaged terminals

Installation Notes and Tips

Installation of the Delphi FG0246 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The included gasket or seal must be properly seated to avoid fuel leaks. Use the provided splice kit for secure electrical connections to the four male blade terminals. Follow the included instructions carefully to maintain system integrity and safety. It is recommended to inspect the fuel tank and lines for contamination or damage during installation.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG0246 is a standard replacement grade part, backed by Delphi’s quality control processes. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or supplier for detailed warranty information.
