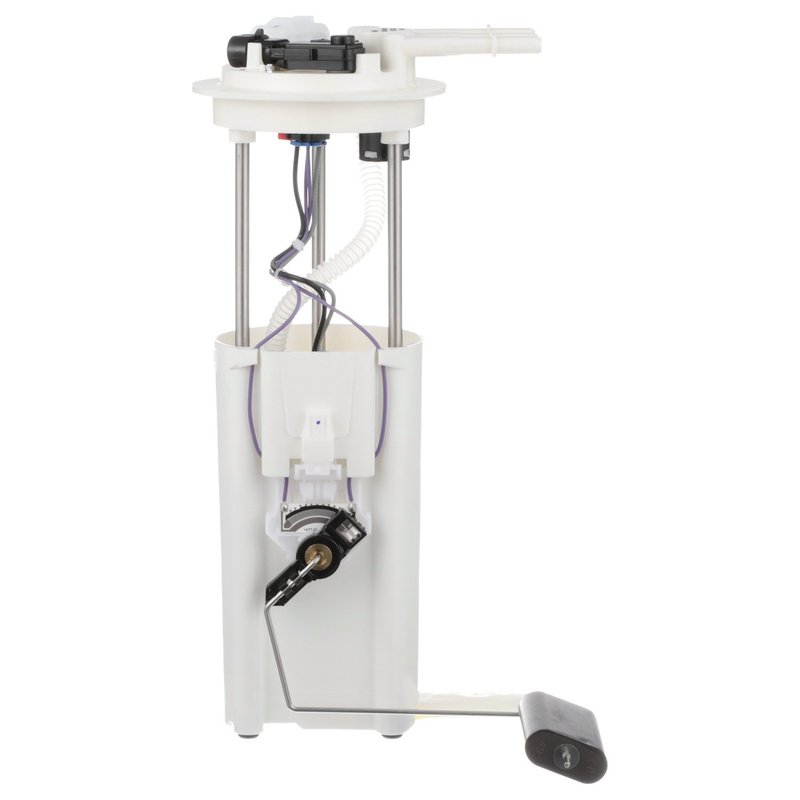

Delphi FG0260 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick and Pontiac

The Delphi FG0260 fuel pump module assembly is designed specifically for Buick Grand Prix and Pontiac Regal models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Compatible with gasoline fuel systems
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Four male pin terminals for secure electrical connections
• Maximum pressure rating of 109 psi and system pressure of 59 psi
• Comes with gasket/seal and splice kit for installation
• Average flow rating of 26 and average current draw of 10 amps
• Includes vapor pressure sensor for emissions control

Detailed Product Features and Specifications

The Delphi FG0260 fuel pump module assembly is engineered as a standard replacement part for Buick Grand Prix and Pontiac Regal vehicles. It operates at 12 volts and is designed for gasoline fuel systems. The pump features an internal strainer inlet and a quick connect outlet with a 0.375 inch outside diameter, facilitating efficient fuel flow and easy installation. The assembly includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. Electrical connections are made via four male pin terminals, ensuring reliable power delivery. The pump supports a maximum pressure of 109 psi and maintains a system pressure of 59 psi, suitable for the fuel delivery requirements of the specified vehicles. Additionally, the module includes a vapor pressure sensor to assist with emissions monitoring.

Common Applications and Problem Resolution

• Replaces failing or noisy fuel pumps in Buick Grand Prix and Pontiac Regal
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assembly
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Improves overall fuel system reliability and engine performance

Installation Notes and Tips

Installation of the Delphi FG0260 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The included gasket and splice kit should be used to secure the module and electrical connections properly. Verify that the quick connect outlets are firmly attached to prevent fuel leaks. It is recommended to inspect the fuel tank for debris or contamination before installing the new pump. Follow vehicle-specific service manual instructions for torque specifications and safety precautions.

Quality Assurance and Warranty Information

Delphi manufactures the FG0260 fuel pump module assembly to meet or exceed OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable operation under normal driving conditions. The product includes a gasket, splice kit, and installation instructions to support proper installation. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation.
