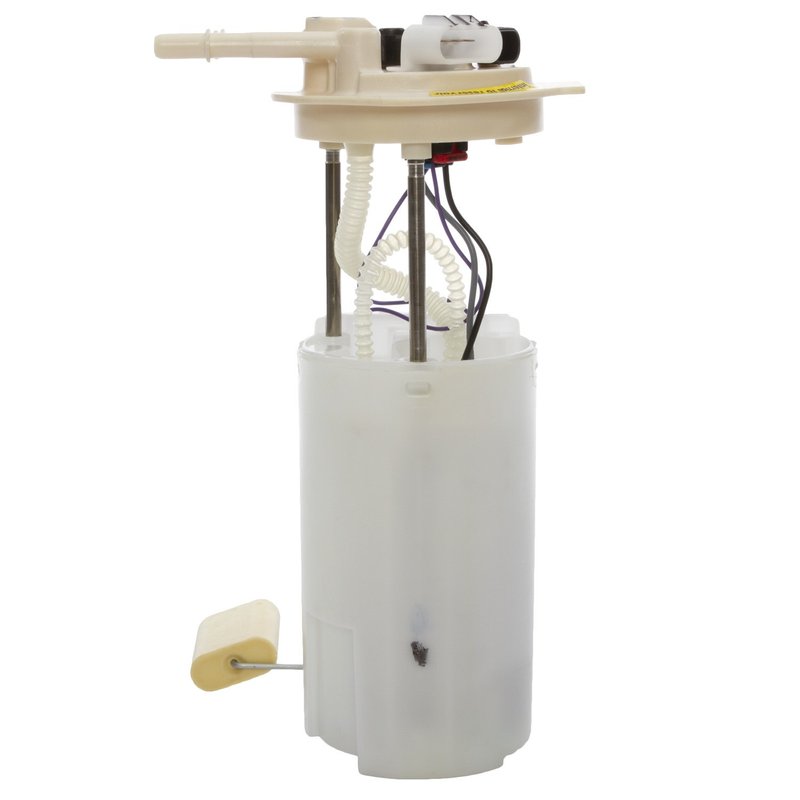

Delphi FG0261 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Pontiac Montana

The Delphi FG0261 fuel pump module assembly is designed specifically for the Pontiac Montana, providing reliable in-tank fuel delivery for gasoline engines. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and two outlets
• Blade-type male terminals with four terminal connections
• Average flow rating of 17 gallons per hour and system pressure of 52 psi
• Includes vapor pressure sensor and fuel level sender assembly

Technical Details and Features

The Delphi FG0261 fuel pump module assembly operates at 12 volts and is designed for in-tank installation in the Pontiac Montana. It features an internal strainer inlet and a quick connect outlet type with two outlets, each having an outside diameter of 0.375 inches. The pump delivers an average flow rating of 17 gallons per hour and maintains a system pressure of 52 psi, with a maximum pressure rating of 109 psi. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), allowing accurate fuel level readings. The blade-type male terminals (four in total) ensure secure electrical connections, and the assembly comes with a gasket and strainer for proper sealing and filtration. A vapor pressure sensor is also integrated to support emissions control systems.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Pontiac Montana models requiring a 12-volt electric fuel pump designed for gasoline engines. The Delphi FG0261 is a direct replacement part that supports the vehicle's original fuel delivery specifications.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inconsistent fuel pressure or flow problems
• Replaces faulty or damaged fuel level sender assemblies
• Eliminates fuel pump noise or failure symptoms
• Supports emissions system functionality with vapor pressure sensor

Installation Notes and Tips

When installing the Delphi FG0261 fuel pump module assembly, ensure the vehicle's fuel system is depressurized before removal. The included gasket and strainer should be properly seated to prevent leaks and contamination. Verify all four blade terminals are securely connected and that the quick connect outlets are properly engaged. Follow the vehicle manufacturer's service manual for torque specifications and safety precautions during installation.

Quality Assurance and Warranty

The Delphi FG0261 fuel pump module assembly is a standard replacement grade part manufactured to meet OEM specifications. It includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. Delphi provides quality assurance through rigorous testing to ensure reliable performance and durability. Warranty coverage details should be confirmed with the parts distributor or vehicle manufacturer.
