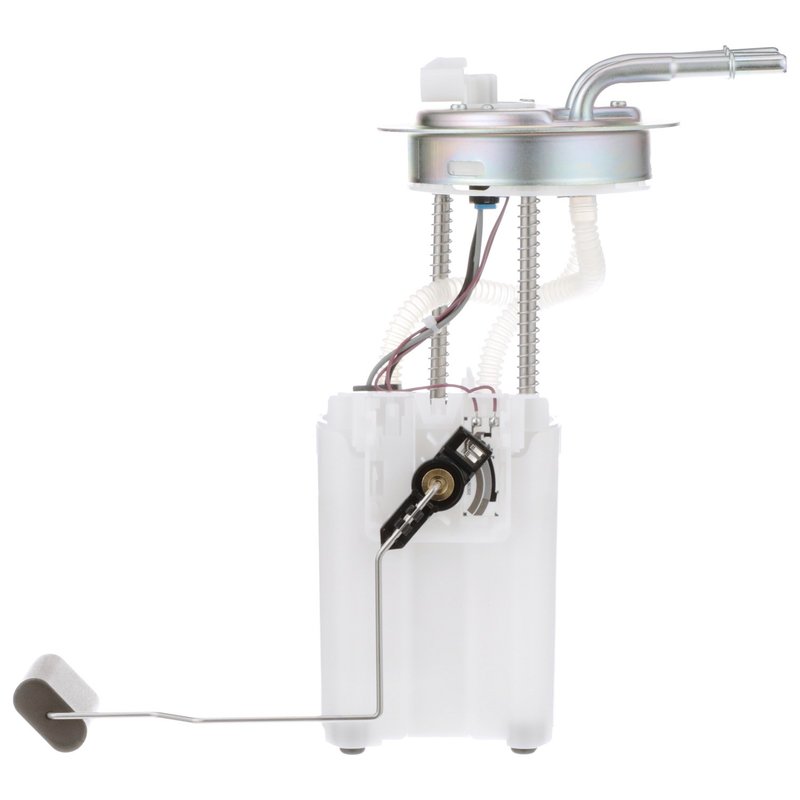

Delphi FG0275 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC 2500 Series

The Delphi FG0275 fuel pump module assembly is designed specifically for in-tank installation in Chevrolet Avalanche 2500, Suburban 2500, and GMC Yukon XL 2500 models. This electric fuel pump module ensures consistent fuel delivery with precise flow and pressure characteristics tailored for gas engines.

• 12.0 Volt electric fuel pump module assembly
• Compatible with gas fuel systems in Chevrolet Avalanche 2500, Suburban 2500, and GMC Yukon XL 2500
• Includes internal strainer and fuel level sender assembly with float arm
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Maximum system pressure of 109 psi and operating pressure of 62 psi
• Four male blade terminals for secure electrical connections
• Includes gasket/seal for proper installation
• Average flow rating of 24 liters per hour and average current draw of 9 amps

Detailed Description of Delphi FG0275 Fuel Pump Module

The Delphi FG0275 is a standard replacement fuel pump module assembly engineered for reliable performance in select Chevrolet and GMC 2500 series trucks. This in-tank electric pump features an internal strainer inlet and a quick connect outlet with three outlets, ensuring efficient fuel delivery and filtration. The module operates at 12 volts and maintains a system pressure of 62 psi, with a maximum pressure rating of 109 psi, suitable for gas fuel systems. The assembly includes a fuel level sender with a float arm, providing accurate fuel level readings. Electrical connections are made via four male blade terminals, designed for durability and secure fitment. The package includes the fuel pump module, seal, and an instruction sheet to assist with installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Avalanche 2500
• Chevrolet Suburban 2500
• GMC Yukon XL 2500

It is designed for use in gas-powered engines requiring an in-tank electric fuel pump with integrated fuel level sending capabilities.

Common Issues Addressed by the Delphi FG0275

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or irregular operation
• Reduced engine performance caused by low fuel pressure
• Fuel contamination due to damaged or clogged internal strainer

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet Avalanche 2500, Suburban 2500, or GMC Yukon XL 2500 before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel pump module carefully to avoid damage to the internal strainer and float arm
• Replace the included gasket/seal to prevent fuel leaks
• Follow the included instruction sheet for proper electrical connections and mounting procedures

Quality Assurance and Warranty Information

The Delphi FG0275 fuel pump module assembly is manufactured to meet OEM specifications for fit, form, and function. It undergoes rigorous testing to ensure consistent fuel flow and pressure performance. This standard replacement part includes a gasket and fuel level sender assembly to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
