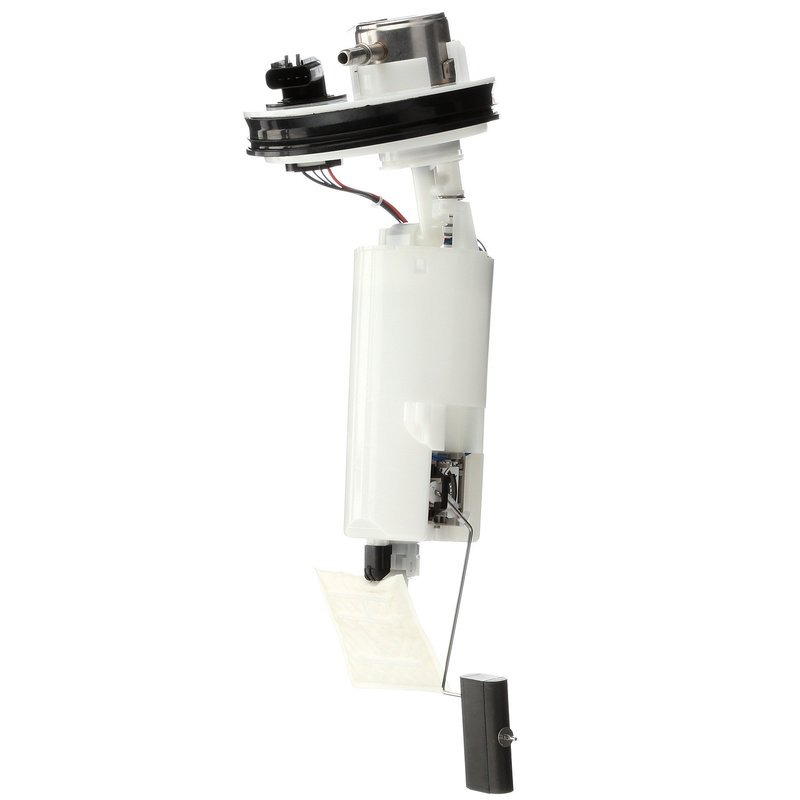

Delphi FG0280 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler Neon

The Delphi FG0280 fuel pump module assembly is designed specifically for Chrysler, Dodge, and Plymouth Neon models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Maximum system pressure of 53 psi with regulator included
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals, 4 in quantity
• External strainer inlet type with included strainer
• Gasket or seal included for secure installation
• Standard replacement grade for reliable performance

Technical Details and Features

The Delphi FG0280 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a built-in regulator maintaining a maximum pressure of 53 psi, ensuring steady fuel flow rated at an average of 26 gallons per hour. The pump uses blade-type male terminals with four connections, facilitating straightforward electrical hookup. The outlet is a quick connect type with a 0.375 inch outside diameter, compatible with factory fuel lines. An external strainer is included to protect the pump from debris, and the assembly comes with a gasket or seal to prevent leaks. The fuel level sender assembly with float arm is integrated, providing accurate fuel gauge readings. This module is intended for in-tank installation, matching the original equipment specifications for Chrysler Neon vehicles.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Chrysler, Dodge, and Plymouth Neon models requiring a direct replacement fuel pump module. It is designed to address common fuel delivery issues such as:

• Intermittent or no fuel delivery causing engine stalling
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops affecting engine performance
• Fuel pump noise or failure from clogged strainers
• Leaks caused by worn seals or gaskets

Installation Notes and Tips

Installation of the Delphi FG0280 fuel pump module assembly should be performed with care to avoid damage to the fuel system. Ensure the vehicle’s battery is disconnected before beginning. Use the included gasket or seal to prevent leaks and verify that the quick connect outlet is securely attached. The blade-type terminals require proper connection to the vehicle’s wiring harness. Since this is an in-tank pump, handle the fuel tank carefully to avoid contamination. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for fit, form, and function. The FG0280 is a standard replacement grade part, designed for reliable operation in Chrysler Neon fuel systems. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
