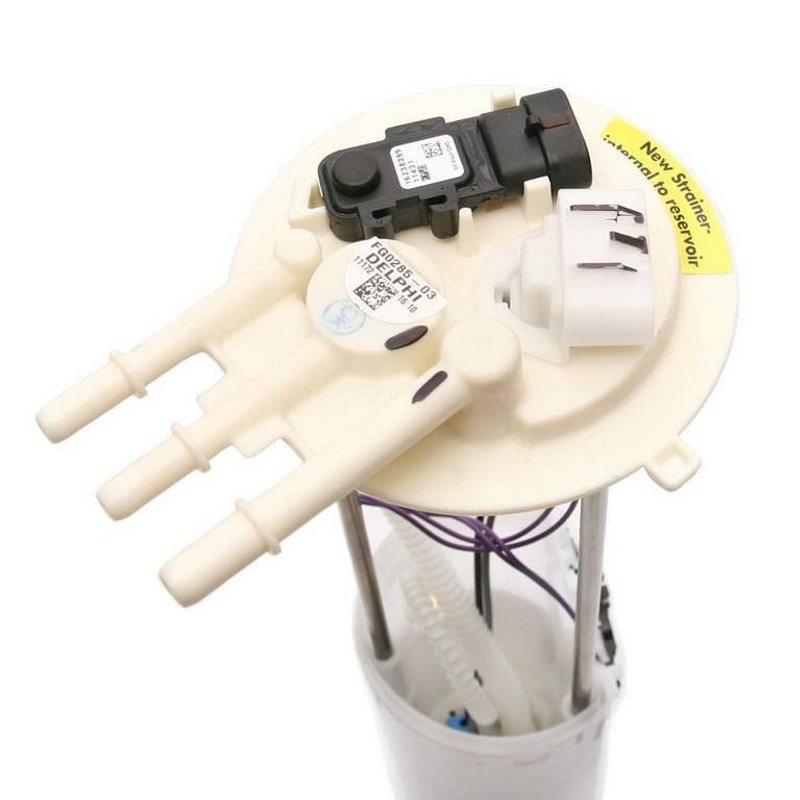

Delphi FG0285 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0285 fuel pump module assembly is designed specifically for Chevrolet S10 and GMC Sonoma models. This in-tank electric fuel pump ensures reliable fuel delivery with precise pressure control and integrated fuel level sensing.

• Compatible with Chevrolet S10 and GMC Sonoma vehicles
• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade with gasket and splice kit included

Technical Specifications and Features

The Delphi FG0285 fuel pump module assembly operates at 12 volts and delivers an average flow rating of 18 gallons per hour, suitable for gasoline fuel systems. It features a maximum system pressure of 62 psi and a maximum pump pressure of 109 psi, ensuring consistent fuel supply under various driving conditions. The module includes an internal strainer at the inlet and a quick connect outlet with three outlets measuring 0.375 inches in diameter. The assembly has four male blade terminals and comes with a gasket or seal to ensure a secure installation. Additionally, the fuel level sender assembly and vapor pressure sensor are integrated for accurate fuel monitoring and emissions control.

Application and Common Issues Addressed

• Restores proper fuel delivery in Chevrolet S10 and GMC Sonoma models
• Resolves fuel pump failure symptoms such as engine stalling or hesitation
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Eliminates fuel pressure inconsistencies affecting engine performance
• Replaces worn or damaged in-tank fuel pump modules

Installation Notes and Tips

Installation of the Delphi FG0285 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work. The included gasket and splice kit should be used to maintain a proper seal and secure electrical connections. Verify that the quick connect outlets are properly seated to prevent fuel leaks. It is recommended to inspect the fuel tank for debris and clean as necessary before installing the new module. Follow all manufacturer instructions carefully to ensure correct installation and operation.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Chevrolet S10 and GMC Sonoma vehicles. It undergoes rigorous testing to ensure durability and reliable performance. The product includes a gasket and splice kit for a complete installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
