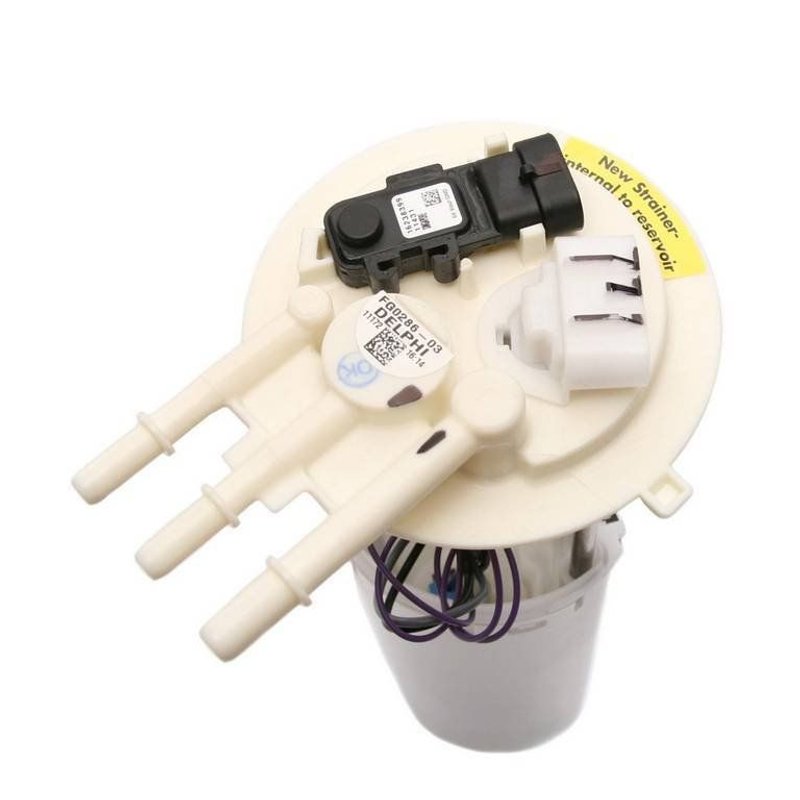

Delphi FG0286 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Blazer and GMC Jimmy

The Delphi FG0286 fuel pump module assembly is designed to provide consistent fuel delivery for your Chevrolet Blazer or GMC Jimmy. Engineered for gas-powered vehicles, this in-tank electric fuel pump ensures efficient operation and compatibility with your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Blazer and GMC Jimmy models
• 12.0-volt operation with a maximum pressure of 109 psi
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375-inch outside diameter
• Four male blade terminals for reliable electrical connection
• Average flow rating of 24 liters per hour and system pressure of 62 psi
• Vapor pressure sensor included for accurate fuel system monitoring

Technical Details and Features

The Delphi FG0286 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating straightforward installation and secure fuel flow. The module includes a fuel level sender assembly with a float arm, allowing precise fuel level readings. With four male blade terminals, the electrical connections are stable and compatible with factory wiring harnesses. The pump delivers an average flow rating of 24 liters per hour and maintains a system pressure of 62 psi, supporting optimal engine performance. Additionally, the vapor pressure sensor enhances fuel system diagnostics and emissions control.

Compatible Vehicles and Applications

• Designed for Chevrolet Blazer models requiring a standard replacement fuel pump module
• Compatible with GMC Jimmy vehicles equipped with gasoline fuel systems
• Ideal for addressing fuel delivery issues such as inconsistent fuel pressure or engine hesitation
• Suitable for replacing worn or faulty in-tank fuel pump modules
• Helps restore accurate fuel level readings and improve overall fuel system reliability

Installation Notes and Tips

Installation of the Delphi FG0286 fuel pump module assembly requires removal of the fuel tank to access the in-tank module. Ensure the gasket included in the package is properly seated to prevent fuel leaks. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure before reassembling. Use the provided splice kit and follow the included instructions carefully to maintain electrical integrity. It is recommended to inspect the fuel tank and lines for contamination or damage during installation.

Quality Assurance and Warranty

Delphi manufactures the FG0286 fuel pump module assembly to meet standard replacement specifications, ensuring reliable performance and durability. The product includes a gasket and strainer to support proper sealing and filtration. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
