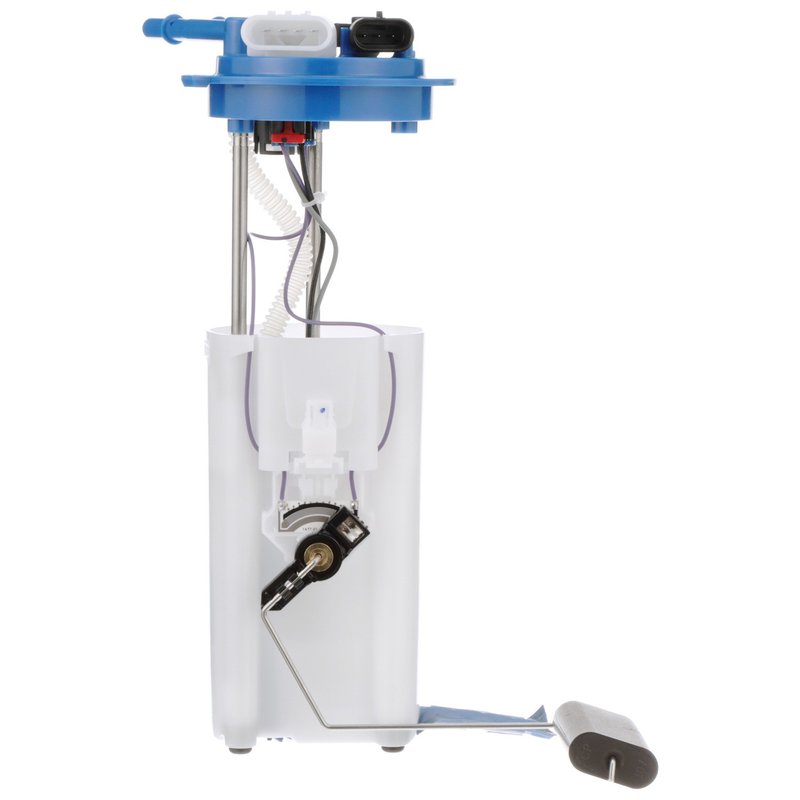

Delphi FG0287 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG0287 Fuel Pump Module Assembly

Brand Delphi FG0287
Average Current Draw 7
Average Flow Rating 24
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included Yes
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 109.0
Outlet Outside Diameter 0.375
Outlet Quantity 3
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Splice Kit, Instruction Sheet
Pump Type Electric
Regulator Included No
Resistance Ohms Empty 40.0
Resistance Ohms Full 250.0
Strainer Included Yes
System Pressure 62 psi
Terminal Gender Male
Terminal Quantity 4
Terminal Type Blade
Vapor Pressure Sensor Yes
Voltage 12.0
Fits Chevrolet, GMC, and Oldsmobile · 19 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

OE heritage. Built with 100 years of OE experience and supplier knowledge.

Complete assembly. Includes a float arm, seal, splice kit, and instruction sheet.

Cross-references Airtex Fuel Pumps E3992M, Bosch 67378 and Carter P74834M for the same application. See all 21.

$301.99Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $301.99
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG0287 Fuel Pump Module Assembly

The Delphi FG0287 fuel pump module assembly is a direct-fit, in-tank electric replacement for select GM SUVs and trucks from the late 1990s and early 2000s. Built with Delphi OE heritage and application-specific engineering, it supports consistent fuel delivery for vehicles that need a dependable gas fuel pump module.

  • In-tank electric fuel pump module assembly for gasoline applications
  • 12.0-volt design with a 109.0 maximum pressure rating
  • Average flow rating of 24 and average current draw of 7
  • Fuel level sender assembly included for integrated tank-level reporting
  • Gasket or seal included; strainer included; vapor pressure sensor included
  • Quick-connect outlet design with 3 outlet ports and blade terminals
  • Updated design with check valve and included 1x4 splice kit for select vehicles

OE-Style Engineering and Fitment

Delphi draws on more than 100 years of OE experience to build aftermarket fuel system parts with the same type of application knowledge used by major automakers. The FG0287 is a standard replacement fuel pump module assembly for select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada models, including 1998-2005 Chevrolet Blazer, 1998-2004 GMC Jimmy, and 1998-2001 Oldsmobile Bravada applications listed below. This Delphi FG0287 part number is also cross-referenced to Bosch 67378 for the same application.

  • Fits 1999-2005 Chevrolet Blazer, N/A
  • Fits 1998 Chevrolet Blazer, N/A; with plastic tank; with 18 gallon tank; RPO code NE2
  • Fits 1999-2004 GMC Jimmy, N/A
  • Fits 1998 GMC Jimmy, N/A; with plastic tank; with 18 gallon tank; RPO code NE2
  • Fits 1999-2001 Oldsmobile Bravada, N/A; with plastic tank
  • Fits 1998 Oldsmobile Bravada, N/A; with plastic tank; with 18 gallon tank; RPO code NE2

Common Symptoms This Part Can Address

  • Hard starting or extended crank time from weak fuel delivery
  • Engine stalling caused by inconsistent pump output
  • Low fuel pressure or pressure drop under load
  • Inaccurate fuel level readings from a failing sender assembly
  • Fuel pump noise or intermittent operation inside the tank

Installation Notes and Tips

Verify the failed module cover uses the correct 3-pin black pressure sensor before ordering. This updated design can replace modules built with or without a check valve, and vehicles with the original 2x2 connector use the included 1x4 splice kit. Delphi also recommends cleaning the fuel tank before installation to reduce the risk of contamination-related pump failure; a clean tank helps protect the new in-tank fuel pump and strainer.

Quality Assurance

Delphi builds this fuel pump module assembly using OE-based design knowledge and a broad aftermarket portfolio developed from supplier experience with top automakers. The FG0287 is engineered as a standard replacement for select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada fuel system applications.

Related reading

This part fits 19 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModel# DoorsPositionNotes
2005ChevroletBlazer4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2004ChevroletBlazer4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2004GMCJimmy4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2003ChevroletBlazer4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2003GMCJimmy4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2002ChevroletBlazer4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2002GMCJimmy4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2001ChevroletBlazer4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2001GMCJimmy4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2001OldsmobileBravada—N/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; with Plastic Tank; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2000ChevroletBlazer4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2000GMCJimmy4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2000OldsmobileBravada—N/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; with Plastic Tank; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
1999ChevroletBlazer4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
1999GMCJimmy4 DoorN/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
1999OldsmobileBravada—N/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; with Plastic Tank; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
1998ChevroletBlazer4 DoorN/Awith Plastic Tank; with 18 Gallon Tank; RPO Code NE2; Updated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
1998GMCJimmy4 DoorN/Awith Plastic Tank; with 18 Gallon Tank; RPO Code NE2; Updated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
1998OldsmobileBravada—N/AUpdated design with Check Valve.  Can be used to replace fuel pump modules built with or without check valve; with Plastic Tank; with 18 Gallon Tank; RPO Code NE2; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 21 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E3992MBosch — 67378Carter — P74834MCarter — P76180MNissens — 67555Spectra Premium — SP6085M953-512519179591193312742531492825347147A30026AFS0481SC5341006DFG0287M212887MU1100MU1733MU1763RE0481STS102
