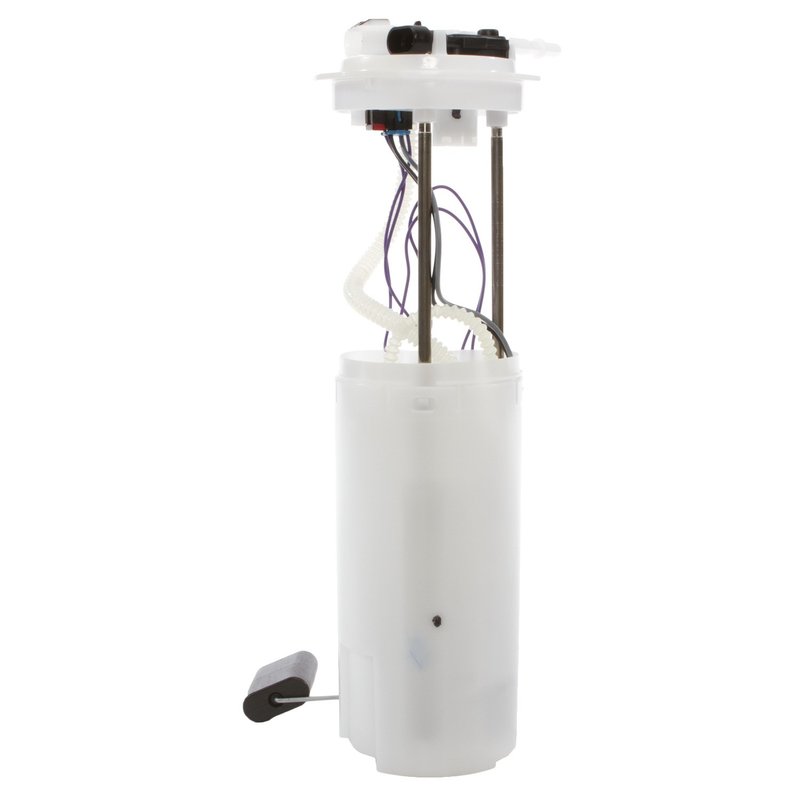

Delphi FG0288 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Astro and GMC Safari

The Delphi FG0288 fuel pump module assembly is designed specifically for in-tank installation in Chevrolet Astro and GMC Safari vehicles. Engineered to deliver consistent fuel flow and accurate fuel level readings, this electric fuel pump module supports gas fuel systems with a 12-volt power supply.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Astro and GMC Safari models
• 12.0 volts operating voltage with an average current draw of 9 amps
• Maximum pressure rating of 131 psi and system pressure of 62 psi
• Includes internal strainer and fuel pump module gasket/seal
• Quick connect outlet type with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connections
• Vapor pressure sensor included for accurate fuel system monitoring

Technical Details and Features

The Delphi FG0288 fuel pump module assembly is a standard replacement part designed for gas fuel systems in Chevrolet Astro and GMC Safari vehicles. It features an internal electric pump capable of delivering an average flow rating of 24 liters per hour. The module includes an internal strainer at the inlet to prevent debris from entering the fuel system, and a quick connect outlet with three outlets to ensure proper fuel delivery. The assembly comes with a gasket or seal to maintain a secure fit within the fuel tank and prevent leaks.

Electrical connections are made via four male blade terminals, providing reliable power transfer. The fuel level sender assembly is integrated, offering accurate fuel level readings with resistance values ranging from 40 ohms (empty) to 250 ohms (full). Additionally, the vapor pressure sensor helps monitor fuel vapor pressure for system diagnostics.

Applications and Problem Resolution

• Restores proper fuel delivery in Chevrolet Astro and GMC Safari vehicles
• Resolves fuel pump failure symptoms such as engine stalling or no-start conditions
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Eliminates fuel leaks with included gasket/seal replacement
• Addresses fuel system pressure inconsistencies affecting engine performance

Installation Notes and Tips

Installation of the Delphi FG0288 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure the fuel system is depressurized before beginning work. Use the included gasket or seal to prevent leaks and verify all electrical connections are secure on the four blade terminals. The quick connect outlet facilitates straightforward fuel line attachment. Follow vehicle-specific service manual instructions for safe and proper installation.

Quality Assurance and Warranty

Delphi manufactures the FG0288 as a standard replacement fuel pump module assembly meeting OEM specifications for Chevrolet Astro and GMC Safari models. The product includes a fuel level sender and vapor pressure sensor to maintain system accuracy. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
