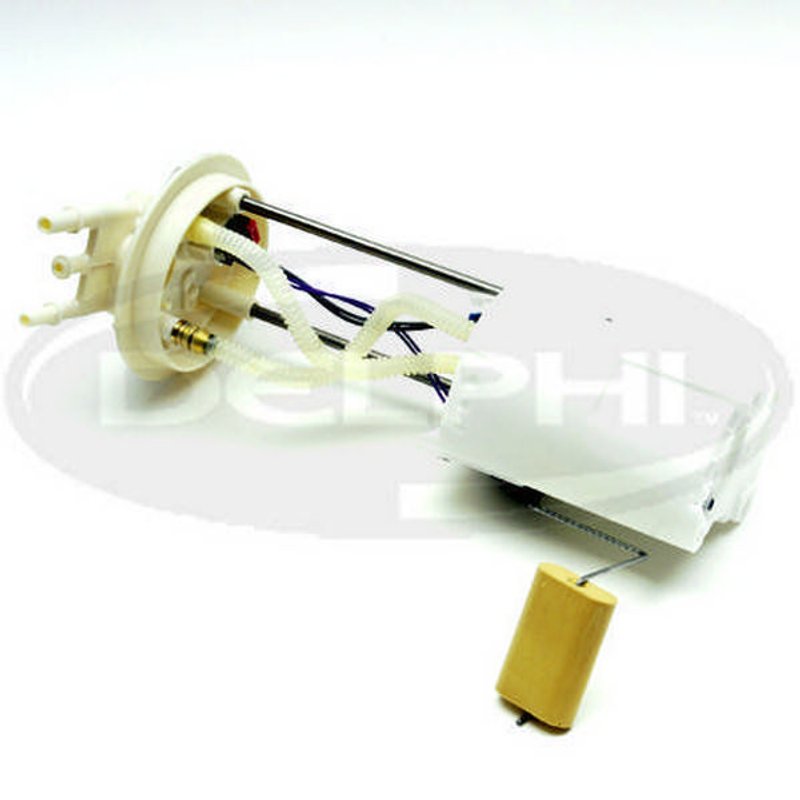

Delphi FG0289 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Honda and Isuzu Vehicles

The Delphi FG0289 fuel pump module assembly is designed to provide consistent fuel delivery for select Honda and Isuzu models. Engineered for in-tank installation, this electric fuel pump module ensures efficient fuel flow and accurate fuel level readings for vehicles like the Honda Axiom, Isuzu Rodeo, and Passport.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Honda Axiom, Isuzu Passport, and Isuzu Rodeo models
• 12.0-volt operation with a maximum pressure rating of 65 psi
• Internal strainer inlet and quick connect outlet with 0.375-inch outside diameter
• Includes strainer and vapor pressure sensor for optimal fuel system performance
• Four male pin terminals for secure electrical connections
• Standard replacement grade with average flow rating of 20 liters per hour

Technical Details and Features

The Delphi FG0289 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, supporting two outlet connections. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. It has four male pin terminals for electrical connections and an average current draw of 8 amps. The system pressure is rated at 43 psi, with a maximum pressure capacity of 65 psi, ensuring reliable fuel delivery under various operating conditions. The internal strainer helps protect the pump from debris, and the vapor pressure sensor supports emissions control systems.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Honda Axiom
• Isuzu Passport
• Isuzu Rodeo

It is designed for in-tank installation and is suitable for standard replacement needs in these models, ensuring proper fuel delivery and system functionality.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or reduced flow affecting engine performance
• Fuel system pressure drops leading to poor acceleration or hesitation
• Contaminant ingress causing pump or filter clogging

Installation Notes and Tips

When installing the Delphi FG0289 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Use appropriate tools to remove the lock ring (not included) securing the module in the tank. Verify electrical connections match the four male pin terminals and confirm the quick connect outlets are securely attached. Follow the included instruction sheet carefully to avoid damage to the float arm or fuel level sender assembly. It is recommended to inspect and clean the fuel tank and related components before installation to maximize pump longevity.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications and undergo rigorous testing to ensure durability and performance. The FG0289 is a standard replacement grade part designed for reliable operation in compatible Honda and Isuzu vehicles. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor or region.
