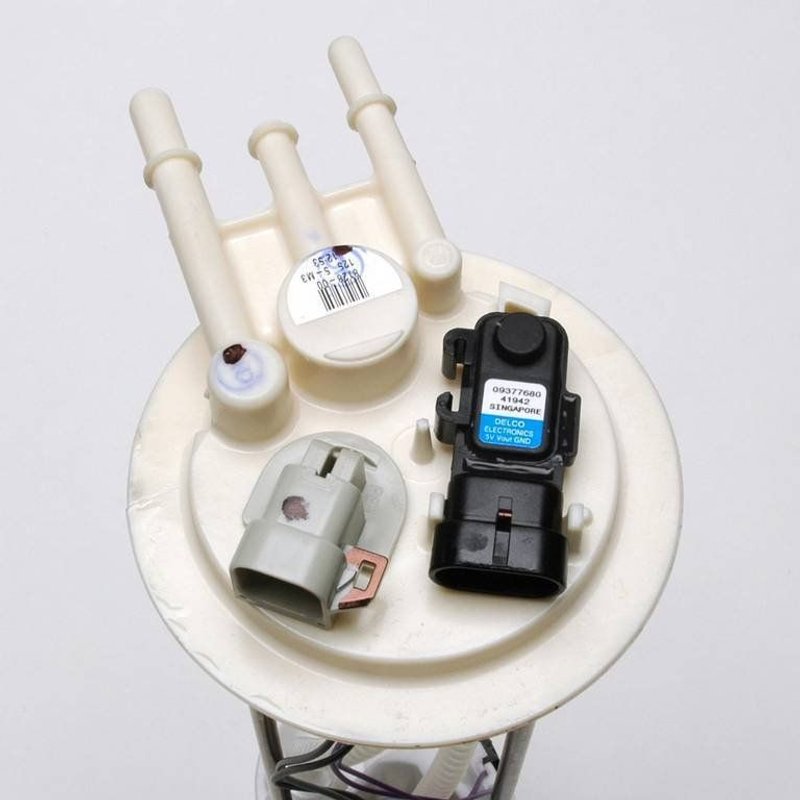

Delphi FG0290 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0290 fuel pump module assembly is designed specifically for the Isuzu Rodeo Sport, providing reliable in-tank fuel delivery for gasoline engines. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• Compatible with Isuzu Rodeo Sport models
• Electric in-tank fuel pump module assembly
• 12.0 Volt operation with 4 male pin terminals
• Maximum pressure rating of 65 psi and system pressure of 43 psi
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Average flow rating of 20 liters per hour and average current draw of 8 amps
• Standard replacement grade with included float arm, seal, and instruction sheet
• Vapor pressure sensor integrated for accurate fuel system monitoring

Technical Details and Features

The Delphi FG0290 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet type with two outlets, each having an outside diameter of 0.375 inches. The module includes a fuel level sender assembly with a float arm, enabling accurate fuel level readings. The pump’s resistance varies from 290 ohms when empty to 80 ohms when full, supporting efficient electrical performance. Designed as an in-tank pump, it maintains a system pressure of 43 psi and can handle a maximum pressure of 65 psi, ensuring steady fuel delivery under various driving conditions. The module uses four male pin terminals for secure electrical connections and includes a vapor pressure sensor to assist in fuel system diagnostics.

Applications and Problem Resolution

• Replaces faulty or worn-out fuel pump modules in Isuzu Rodeo Sport vehicles
• Resolves issues with inconsistent fuel pressure or flow
• Addresses fuel level sender failures causing inaccurate fuel gauge readings
• Eliminates problems related to clogged or damaged internal strainers
• Improves engine performance by restoring proper fuel delivery

Installation Notes and Tips

Installation of the Delphi FG0290 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included seal and follow the instruction sheet carefully to avoid leaks. Verify all electrical connections are secure, especially the four male pin terminals. It is recommended to inspect the fuel tank for debris or contamination before installing the new module. Properly seat the quick connect outlets to prevent fuel leaks and ensure reliable operation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. The FG0290 is a standard replacement grade part, designed for reliable operation in the Isuzu Rodeo Sport fuel system. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
