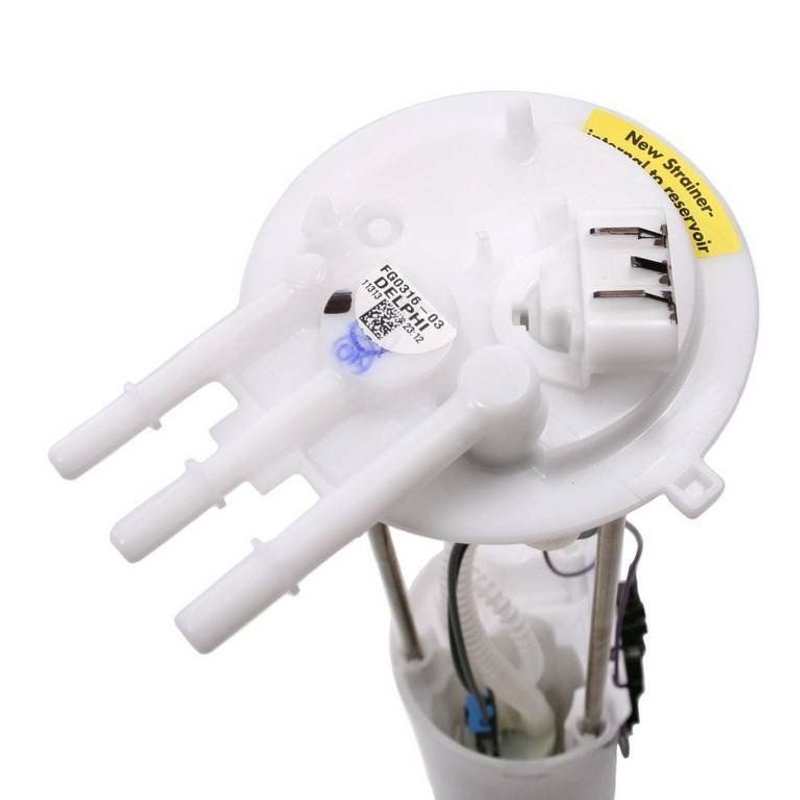

Delphi FG0316 Fuel Pump Module Assembly
| Brand | Delphi FG0316 |
|---|---|
| Average Current Draw | 9 |
| Average Flow Rating | 32 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 65.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splice Kit, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| System Pressure | 62 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Chevrolet and GMC · 2 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Electric in-tank design. Delivers consistent fuel delivery with a quick-connect outlet.
OE heritage. Built from 100 years of OE experience and supplier knowledge.
Cross-references Airtex Fuel Pumps E3501M, DENSO Auto Parts 953-0028 and Spectra Premium SP6086M for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Silverado and Sierra
Delphi FG0316 is an in-tank electric fuel pump module assembly for gasoline applications. It is built for 2004 Chevrolet Silverado 1500 and 2004 GMC Sierra 1500 models without Evaporative Emission, with OE-based engineering drawn from Delphi’s long history supplying automakers.
Key Features
- In-tank electric fuel pump module assembly for gas fuel systems
- 12-volt operation with a maximum pressure rating of 65.0
- System pressure rated at 62 psi and average flow rating of 32
- Fuel level sender assembly included for accurate tank level reporting
- Quick-connect outlet design with 3 outlet ports and blade terminals
- Gasket or seal included; strainer included for installation support
- Standard replacement grade for direct service use
- Package contents include fuel pump module assembly with float arm, seal, splice kit, and instruction sheet
Detailed Description
Delphi FG0316 is a fuel pump module assembly engineered for gasoline-powered trucks that need dependable in-tank fuel delivery and fuel level sensing. It includes an internal strainer, quick-connect outlet, male blade terminals, and a fuel level sender assembly, making it a practical replacement for 2004 Chevrolet Silverado 1500 and 2004 GMC Sierra 1500 applications without Evaporative Emission. Delphi’s OE heritage is reflected in the component design and application coverage across a wide range of vehicles and model years. This part cross-references Airtex E3501M and DENSO 953-0028 for the same application.
What This Part Helps Address
- Hard starting caused by weak or inconsistent fuel delivery
- Engine stalling from low fuel pressure
- Fuel gauge errors from a worn sender assembly
- Poor acceleration or hesitation under load
- Noise or failure from an aging in-tank pump module
Installation Notes and Tips
Fits 2004 Chevrolet Silverado 1500, without Evaporative Emission. Fits 2004 GMC Sierra 1500, without Evaporative Emission. The notes specify one electrical connector on the module. Before installing FG0316, clean the fuel tank to reduce contamination-related pump failure; Delphi recommends using fuel tank cleaning kit FC01. Verify connector style, outlet routing, and system pressure requirements before installation.
Quality Assurance
Delphi builds this replacement module using OE experience and application knowledge developed through supplier relationships with major automakers. FG0316 is a standard replacement fuel pump module assembly intended for direct service on confirmed applications.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Chevrolet | Silverado 1500 | GAS | N/A | without Evaporative Emission; Module has 1 Electrical Connector(s); Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2004 | GMC | Sierra 1500 | GAS | N/A | without Evaporative Emission; Module has 1 Electrical Connector(s); Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
