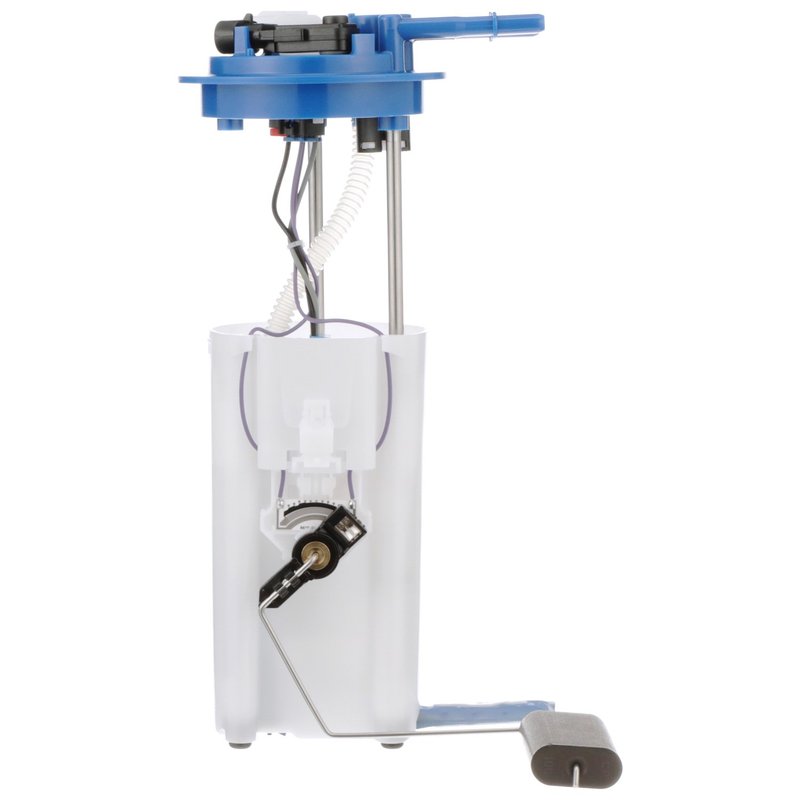

Delphi FG0342 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick and Chevrolet Vehicles

The Delphi FG0342 fuel pump module assembly is designed to provide consistent fuel delivery for select Buick and Chevrolet models. Engineered for in-tank installation, this electric fuel pump module supports gas fuel systems and includes essential components for a straightforward replacement.

• Compatible with Buick Century, Chevrolet Impala, Monte Carlo, and Regal models
• 12.0-volt electric fuel pump with an average flow rating of 23
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Quick connect outlet with 0.375-inch outside diameter and three outlet ports
• Comes with gasket/seal and splice kit for proper installation
• System pressure rated at 52 psi with a maximum pressure of 109 psi
• Four male pin terminals for secure electrical connections
• Vapor pressure sensor integrated for enhanced fuel system performance

Detailed Product Features and Specifications

The Delphi FG0342 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. Its electric pump type ensures steady fuel flow with an average current draw of 7 amps. The module includes an internal strainer at the inlet and a quick connect outlet type, facilitating efficient fuel delivery and easy connection. The assembly features three outlet ports with a 0.375-inch outside diameter, supporting system pressures up to 52 psi and maximum pressures reaching 109 psi. The fuel level sender assembly is included, providing accurate fuel level readings, while the vapor pressure sensor helps maintain optimal fuel system operation. The four male pin terminals ensure reliable electrical connections, and the package includes a gasket/seal and splice kit to assist with installation.

Compatible Buick and Chevrolet Models

This fuel pump module assembly is compatible with the following vehicles:

• Buick Century
• Chevrolet Impala
• Chevrolet Monte Carlo
• Buick Regal

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps
• Resolves inconsistent fuel delivery and engine performance issues
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel system pressure drops affecting engine operation
• Restores proper vapor pressure sensing for emissions control

Installation Notes and Tips

Installation of the Delphi FG0342 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure all electrical connections use the included splice kit and verify the four male pin terminals are securely connected. The included gasket/seal must be properly seated to prevent fuel leaks. Use caution when handling the internal strainer and fuel level sender assembly to avoid damage. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty Information

Delphi provides this fuel pump module assembly as a standard replacement part meeting OEM specifications. The product undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as terms may vary.
