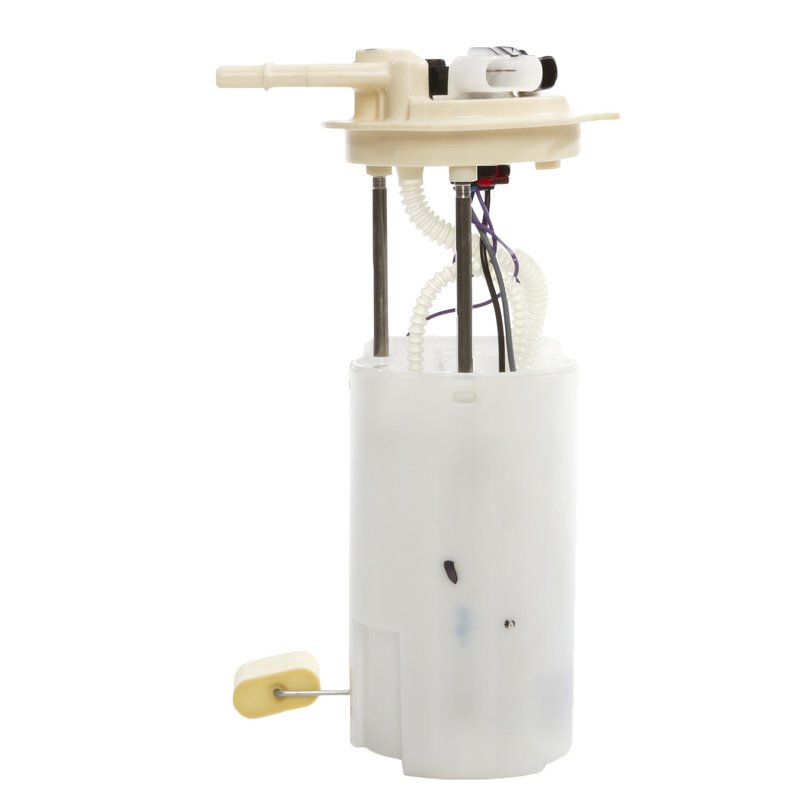

Delphi FG0344 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Pontiac Montana

The Delphi FG0344 fuel pump module assembly is designed specifically for the Pontiac Montana, providing reliable in-tank fuel delivery for gasoline engines. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375-inch outside diameter and two outlets
• Blade-type male terminals with four terminal quantity for secure electrical connections
• Maximum pressure rating of 65 psi and system pressure of 52 psi
• Average flow rating of 17 gallons per hour and average current draw of 7 amps
• Includes vapor pressure sensor and splice kit for installation

Technical Details and Features

The Delphi FG0344 fuel pump module assembly is engineered for the Pontiac Montana's fuel system requirements. It operates at 12 volts and is designed for gasoline fuel delivery. The module features an internal strainer inlet and a quick connect outlet type, ensuring efficient fuel filtration and connection. The assembly includes a fuel level sender assembly with a float arm, allowing accurate fuel level readings. The pump's maximum pressure is rated at 65 psi, with a system pressure of 52 psi, supporting consistent fuel delivery under various driving conditions. Electrical connections are made via four male blade terminals, providing secure and reliable power supply. The package includes a gasket or seal and a splice kit to facilitate proper installation and sealing within the fuel tank.

Compatible Applications and Common Issues Addressed

This fuel pump module assembly is compatible with Pontiac Montana models requiring a standard replacement fuel pump module. It is designed to address several common fuel system issues, including:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure inconsistencies affecting engine performance
• Fuel contamination caused by damaged or missing strainers
• Electrical connection problems leading to pump malfunction

Installation Notes and Tips

When installing the Delphi FG0344 fuel pump module assembly, ensure the vehicle's battery is disconnected to prevent electrical hazards. Use the included gasket or seal to prevent fuel leaks and verify that the internal strainer is properly positioned. The quick connect outlets simplify fuel line connections, but confirm secure attachment to avoid leaks. The four blade terminals require correct wiring according to the vehicle's electrical schematic. It is recommended to inspect the fuel tank for debris before installation to prolong pump life. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi manufactures the FG0344 fuel pump module assembly to meet standard replacement quality requirements. The product includes a vapor pressure sensor to support emissions control systems. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, refer to the product documentation or contact the manufacturer.
