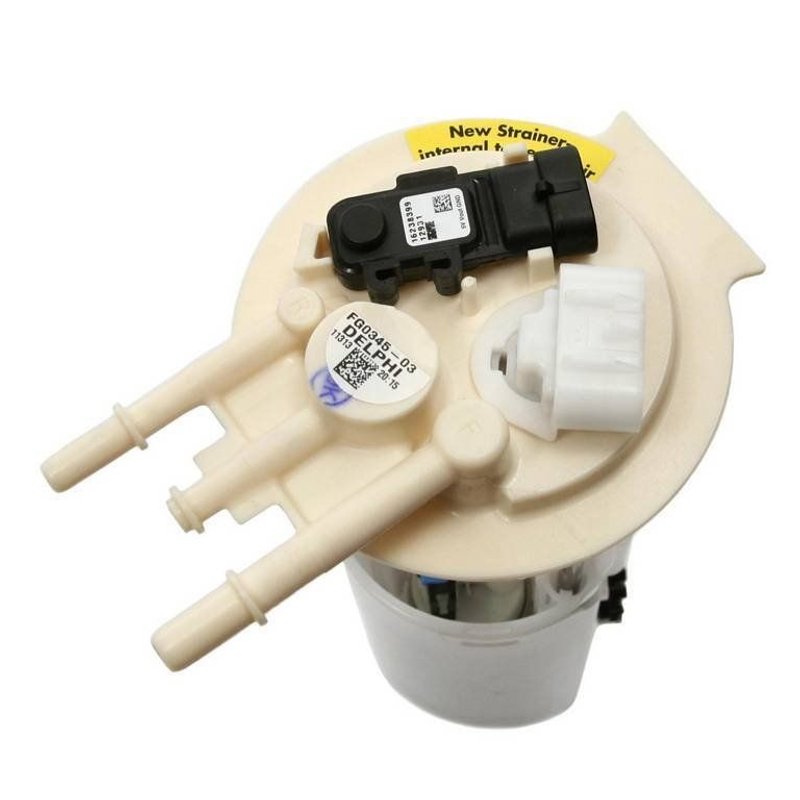

Delphi FG0345 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Oldsmobile Montana and Pontiac Silhouette

The Delphi FG0345 fuel pump module assembly is designed specifically for in-tank installation in select Oldsmobile Montana and Pontiac Silhouette models. Engineered to deliver consistent fuel flow and accurate fuel level readings, this electric fuel pump module supports gas-powered engines with a 12-volt system.

Key Features of Delphi FG0345 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates at 12.0 volts compatible with standard vehicle electrical systems
• Designed for gasoline fuel type applications
• Maximum pressure rating of 65 psi ensures stable fuel delivery
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Four male blade terminals for secure electrical connections
• Quick connect outlet type with two outlets for efficient fuel flow
• Comes with gasket/seal and splice kit for proper installation
• Average flow rating of 17 gallons per hour supports engine performance
• System pressure maintained at 52 psi for optimal operation
• Includes vapor pressure sensor to support emissions control systems

Detailed Description of the Delphi FG0345 Fuel Pump Module Assembly

This Delphi fuel pump module assembly (part number FG0345) is a standard replacement unit designed for in-tank installation in Oldsmobile Montana and Pontiac Silhouette vehicles. The electric pump operates at 12 volts and is optimized for gasoline fuel systems. It features an internal strainer to prevent debris from entering the fuel system and a fuel level sender assembly with a float arm to provide accurate fuel gauge readings. The module includes four male blade terminals and a quick connect outlet with two outlets, facilitating straightforward electrical and fuel line connections. The unit maintains a system pressure of 52 psi and can handle a maximum pressure of 65 psi, ensuring consistent fuel delivery under various driving conditions. Additionally, the vapor pressure sensor supports the vehicle’s evaporative emissions system.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Oldsmobile Montana and Pontiac Silhouette
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions caused by clogged strainers or debris
• Supports emissions compliance by integrating vapor pressure sensor functionality

Installation Notes and Tips

• Ensure compatibility with Oldsmobile Montana and Pontiac Silhouette models before installation
• Use the included gasket/seal and splice kit to prevent leaks and ensure secure electrical connections
• Handle the float arm carefully to avoid damage to the fuel level sender assembly
• Verify all electrical terminals are properly connected to avoid pump malfunction
• Follow vehicle manufacturer guidelines for in-tank fuel pump replacement procedures

Quality Assurance and Warranty Information

The Delphi FG0345 fuel pump module assembly is manufactured to meet OEM specifications for reliable performance and durability. This standard replacement part undergoes rigorous testing to ensure consistent fuel flow and accurate fuel level readings. While specific warranty terms may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for detailed warranty information.
