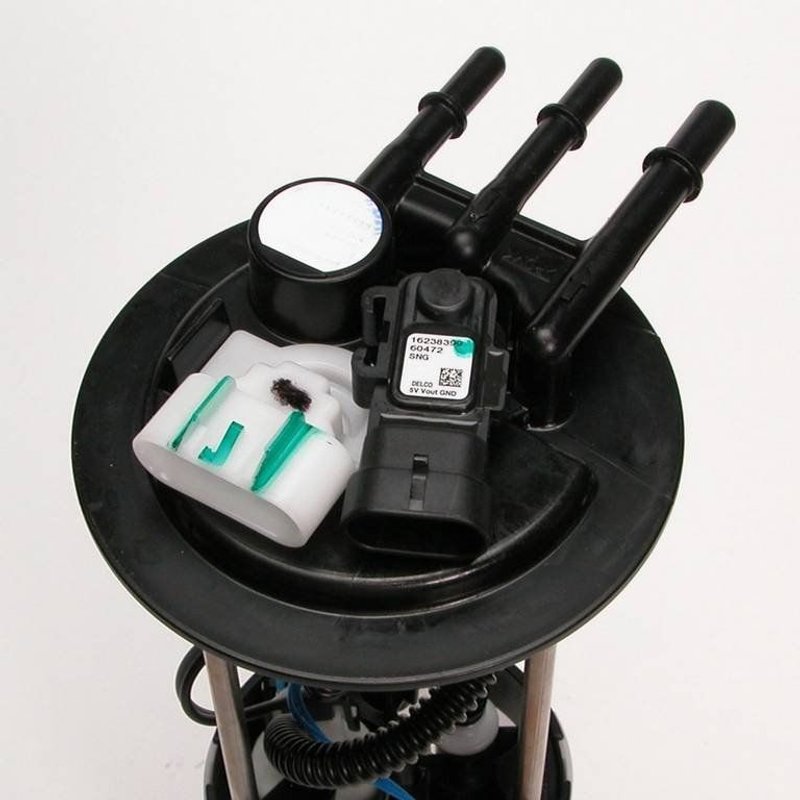

Delphi FG0359 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG0359 fuel pump module assembly is designed specifically for Chevrolet Colorado and GMC Canyon models. This in-tank electric fuel pump ensures consistent fuel delivery and integrates a fuel level sender assembly for accurate tank readings.

Key Features of the Delphi FG0359 Fuel Pump Module

• 12.0 Volt electric fuel pump with an average flow rating of 20 liters per hour
• Compatible with gasoline fuel systems, designed for in-tank installation
• Includes internal strainer and fuel level sender assembly with float arm
• Outlet outside diameter of 0.375 inches with three quick connect outlets
• Four male blade terminals for secure electrical connections
• Gasket and seal included for proper installation and leak prevention
• System pressure rated at 58 psi with a maximum pressure of 109 psi
• Vapor pressure sensor integrated for emissions control

Detailed Description of the Delphi FG0359 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0359) is engineered to meet the fuel delivery requirements of Chevrolet Colorado and GMC Canyon trucks. The electric pump operates at 12 volts and draws an average current of 7 amps, providing a steady flow of fuel at 20 liters per hour. The module features an internal strainer inlet and quick connect outlets, facilitating efficient fuel flow and easy installation. The included fuel level sender assembly with float arm allows for accurate fuel gauge readings. Designed as a standard replacement part, this module comes with a gasket and seal to ensure a secure fit and prevent leaks. The system pressure is maintained at 58 psi, with a maximum pressure capacity of 109 psi, supporting optimal engine performance.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet Colorado and GMC Canyon
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions caused by clogged or damaged strainers
• Prevents fuel leaks with included gasket and seal for proper installation

Installation Notes and Tips

Installation of the Delphi FG0359 fuel pump module requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work. The module’s quick connect outlets and four male blade terminals simplify electrical and fuel line connections. Use the included gasket and seal to prevent leaks and verify all connections are secure. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions. Testing fuel pressure after installation is recommended to confirm proper operation.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0359 is a standard replacement part designed for durability and reliable performance in Chevrolet Colorado and GMC Canyon trucks. This product includes a warranty covering defects in materials and workmanship, providing confidence in its long-term operation.
