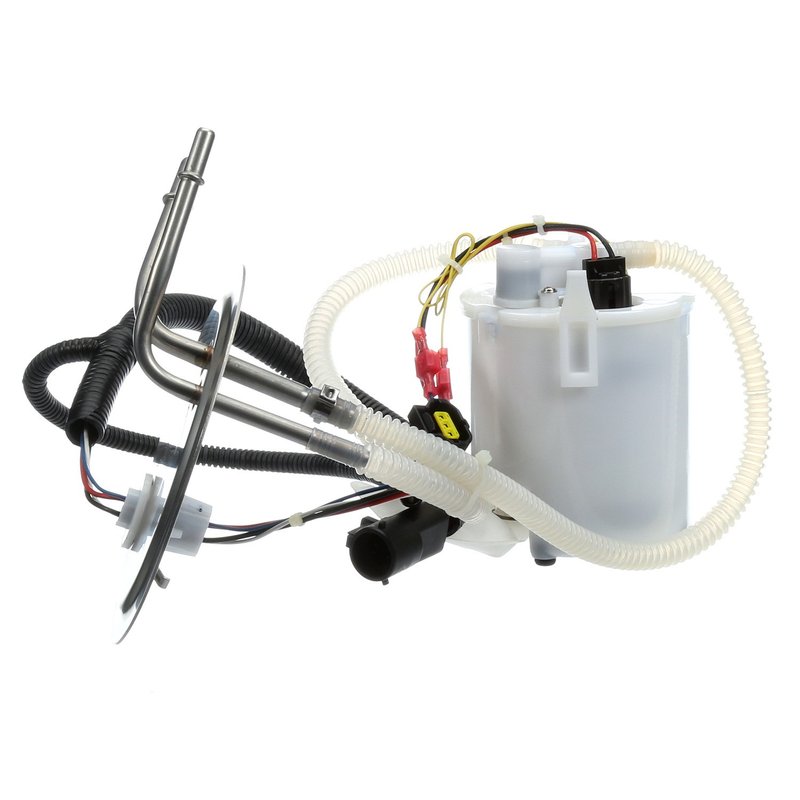

Delphi FG0360 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Super Duty Trucks

The Delphi FG0360 fuel pump module assembly is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for your gas-powered vehicle.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty
• 12.0 Volt electric fuel pump with 30 GPH average flow rating
• Includes fuel level sender assembly with float arm
• External strainer inlet type with quick connect outlet
• Seven male pin terminals with included gasket and strainer
• System pressure rated at 44 psi, maximum pressure 88 psi

Technical Specifications and Features

The Delphi FG0360 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with an outside diameter of 0.375 inches. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. It has seven male pin terminals for electrical connections and comes with a gasket and strainer to ensure proper sealing and filtration. The pump delivers an average flow rating of 30 gallons per hour and maintains a system pressure of 44 psi, with a maximum pressure capacity of 88 psi. The resistance values range from 15 ohms when empty to 160 ohms when full, supporting reliable sensor feedback. This standard replacement grade module is designed for in-tank installation in Ford Super Duty trucks.

Applications and Problem Solving

• Restores proper fuel delivery in Ford F-250 and F-350 Super Duty trucks
• Resolves fuel level sensor inaccuracies and erratic gauge readings
• Addresses fuel pump failure symptoms such as engine stalling or hesitation
• Eliminates fuel contamination issues with included external strainer
• Improves overall fuel system reliability and performance

Installation Notes and Tips

Installation of the Delphi FG0360 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections match the seven male pin terminals and verify the gasket is properly seated to prevent leaks. The quick connect outlet facilitates straightforward fuel line attachment. It is recommended to follow vehicle-specific service manuals for safe handling of fuel system components and to relieve fuel system pressure before removal. Use the included clips and seal to secure the module and maintain system integrity.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. This FG0360 module is a standard replacement part designed to provide reliable operation in Ford F-250 Super Duty and F-350 Super Duty trucks. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for detailed warranty information.
