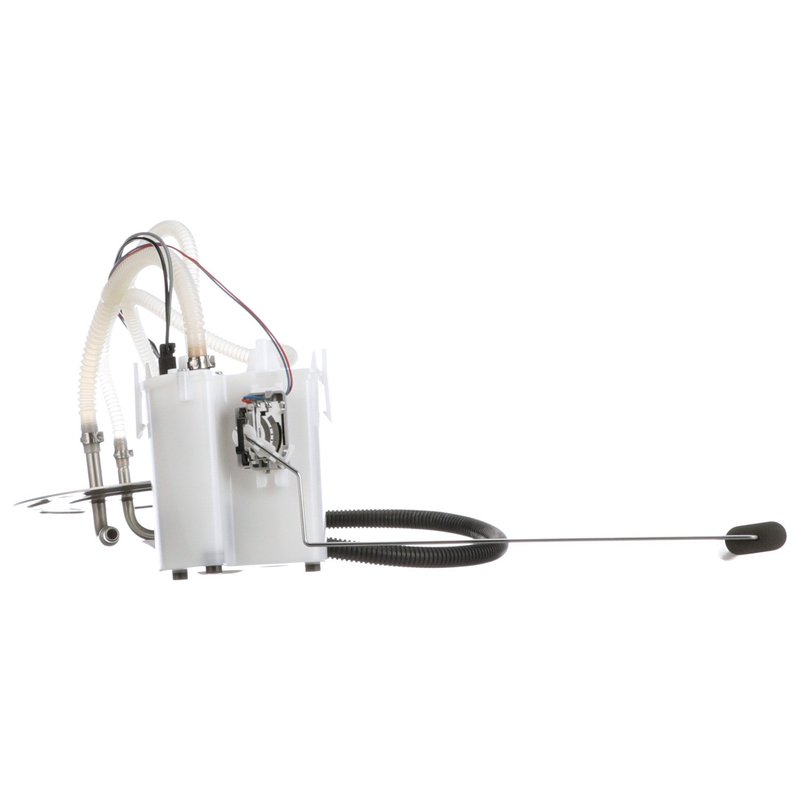

Delphi FG0362 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Super Duty Trucks

The Delphi FG0362 fuel pump module assembly is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty
• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm
• Features a 0.375 inch outlet outside diameter and quick connect outlet type
• Comes with regulator, gasket, and external strainer included
• Four male pin terminals for secure electrical connections
• Average flow rating of 30 and system pressure of 44 psi

Technical Details and Features

The Delphi FG0362 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an in-tank electric pump with an external strainer inlet type and a quick connect outlet with three outlets. The unit includes a regulator to maintain system pressure at 44 psi and a fuel level sender assembly for accurate fuel gauge readings. The pump’s resistance ranges from 16 ohms when empty to 160 ohms when full, with an average current draw of 5 amps. The assembly also includes a gasket or seal and a strainer to protect the fuel system from contaminants. The four male pin terminals ensure reliable electrical connections without the need for a lock ring.

Applications and Problem Solving

• Restores proper fuel pressure and flow in Ford F-250 and F-350 Super Duty trucks
• Replaces faulty or worn fuel pump modules causing engine hesitation or stalling
• Fixes inaccurate fuel level readings with the included sender assembly
• Eliminates fuel delivery interruptions due to clogged strainers or damaged seals
• Addresses electrical connection issues with secure four-pin male terminals

Installation Notes and Tips

Installation of the Delphi FG0362 fuel pump module assembly requires removal of the fuel tank. Ensure the fuel system is depressurized before beginning work. The included gasket and seal should be properly seated to prevent leaks. Connect the four male pin terminals securely and verify the quick connect outlets are firmly attached. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions. Testing the fuel pressure after installation is recommended to confirm proper operation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. This standard replacement part undergoes rigorous quality control to ensure durability and reliable performance in Ford F-250 Super Duty and F-350 Super Duty trucks. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
