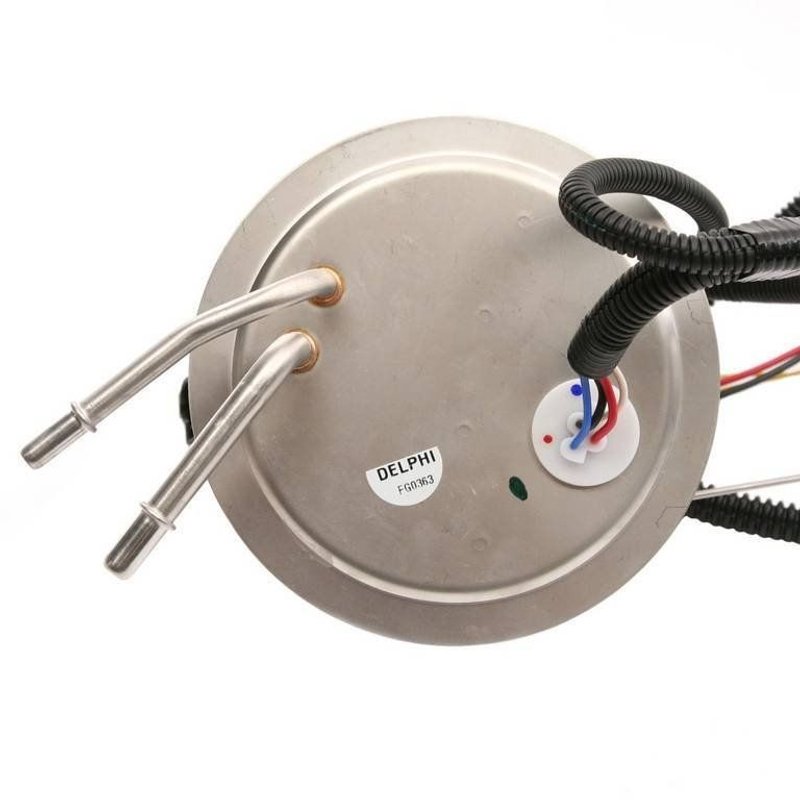

Delphi FG0363 Fuel Pump Module Assembly

Delphi FG0363 Fuel Pump Module Assembly

Delphi FG0363 is an in-tank electric fuel pump module assembly for gasoline applications. Built with OE heritage and Delphi’s long experience supplying automakers, it combines the pump, fuel level sender assembly, strainer, seal, and quick-connect outlet design for a direct replacement approach.

• In-tank electric fuel pump module assembly for gas fuel systems
• Maximum pressure: 109.0; system pressure: 44 psi
• 12.0-volt operation with pin terminals and 7-terminal connector
• Fuel level sender assembly included with resistance range of 15.0 ohms empty to 160.0 ohms full
• Strainer included; gasket or seal included; quick-connect outlet type
• Standard replacement grade for service on select Ford F-250 Super Duty and Ford F-350 Super Duty models

OE-Style Fuel Delivery Performance

The Delphi FG0363 fuel pump module assembly is built for select 1999-2004 Ford F-250 Super Duty and Ford F-350 Super Duty trucks with California Emission System and Midship Tank configurations. Delphi’s OE-focused engineering supports consistent fuel delivery, accurate fuel level reporting, and a service-ready fit for gasoline applications. This part cross-references Bosch 67226 and Carter P75034M for the same application. The FG0363 also includes the fuel level sender assembly, making it a practical replacement when the original module shows signs of wear, pressure loss, or sender-related gauge issues.

Fitment

• Fits 1999-2004 Ford F-250 Super Duty, N/A, with California Emission System; with Midship Tank; fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
• Fits 1999-2004 Ford F-350 Super Duty, N/A, with California Emission System; with Midship Tank; fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.

Common Replacement Reasons

• Hard starting or extended cranking from weak fuel delivery
• Engine hesitation, stumble, or loss of power under load
• Inaccurate fuel gauge readings from a worn sender
• Low fuel pressure or intermittent fuel pump operation
• Fuel system service after contamination-related pump damage

Installation Notes

Verify the vehicle’s California Emission System and Midship Tank configuration before ordering. Clean the fuel tank before installation to reduce the chance of repeat pump failure, and Delphi recommends fuel tank cleaning kit FC01 for this service. Confirm connector style, outlet type, and sender resistance specifications during replacement to ensure proper operation on Ford F-250 Super Duty and Ford F-350 Super Duty applications.

Quality Assurance

Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio built from original-equipment knowledge. FG0363 is a standard replacement fuel pump module assembly engineered to meet the needs of select Ford truck fuel systems.
