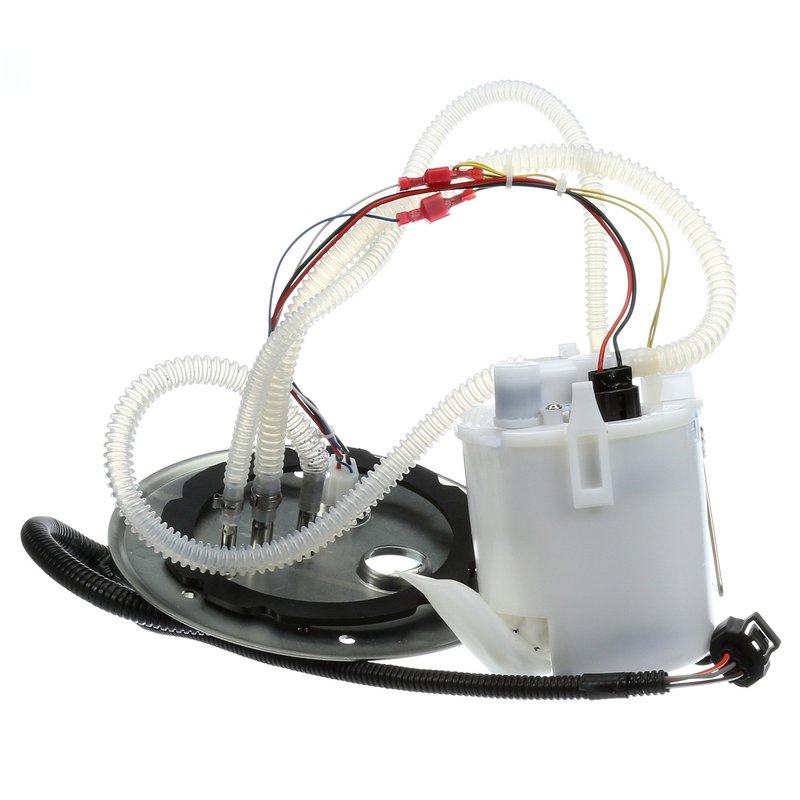

Delphi FG0365 Fuel Pump Module Assembly

Delphi FG0365 Fuel Pump Module Assembly

Delphi FG0365 is an in-tank electric fuel pump module assembly for gasoline applications. Built from Delphi’s OE experience and aftermarket engineering, it combines the fuel pump module, fuel level sender assembly, gasket or seal, and strainer for a direct replacement approach on select Ford Super Duty trucks.

Compatible with 2000-2003 Ford F-250 Super Duty and 2000-2003 Ford F-350 Super Duty, this module is specified for aft axle tank vehicles with California Emission System equipment. Delphi FG0365 is a practical choice when replacing a worn fuel pump module on Ford F-250 Super Duty and Ford F-350 Super Duty applications.

Key Features

• In-tank electric fuel pump module assembly for gasoline fuel systems
• 12.0-volt operation with a maximum pressure rating of 106.0
• Average flow rating of 32 and average current draw of 6
• Fuel level sender assembly included for integrated fuel delivery and level reporting
• Gasket or seal included; strainer included
• Quick-connect outlet design with 3 outlets and 0.375 outlet outside diameter
• 7-terminal male pin connection
• Standard replacement grade from Delphi

Detailed Description

Delphi FG0365 is engineered as an in-tank fuel pump module assembly for vehicles using a gasoline fuel system. It includes the pump, float arm, fuel level sender assembly, gasket or seal, and strainer, helping restore fuel delivery and tank level monitoring in one service part. The module is rated for 44 psi system pressure and uses a quick-connect outlet configuration for service-friendly installation on the specified Ford trucks.

Delphi draws on more than a century of OE experience and supplier knowledge used by major automakers, and that background is reflected in the FG0365 replacement design. This part cross-references Bosch 67133 and Carter P76119M for the same application. For buyers searching for a Ford F-250 Super Duty fuel pump module assembly or Ford F-350 Super Duty fuel pump module assembly, Delphi FG0365 is a direct-fit option for the listed configurations.

What It Helps Address

• Hard starting caused by weak or failing fuel delivery
• Engine stalling from inconsistent pump output
• Incorrect fuel gauge readings from a worn sender
• Low fuel pressure conditions in the tank-mounted fuel system
• Fuel starvation symptoms under load or during acceleration

Installation Notes and Tips

Fits 2000-2003 Ford F-250 Super Duty, N/A, with aft axle tank and California Emission System. Fits 2000-2003 Ford F-350 Super Duty, N/A, with aft axle tank and California Emission System. Before installing a new pump module, clean the fuel tank to reduce the risk of contamination-related failure. Delphi notes that use of fuel tank cleaning kit FC01 is recommended.

Verify connector style, outlet configuration, and tank application before installation. The module uses a 7-terminal male pin layout and an in-tank electric pump design, so matching the original electrical and fuel line connections is important for proper operation.

Quality Assurance

Delphi builds this fuel pump module assembly using OE heritage and application knowledge developed through long-term supplier experience with major automakers. The FG0365 is a standard replacement part designed to meet the needs of the listed Ford Super Duty applications with the included gasket or seal, strainer, and fuel level sender assembly.
