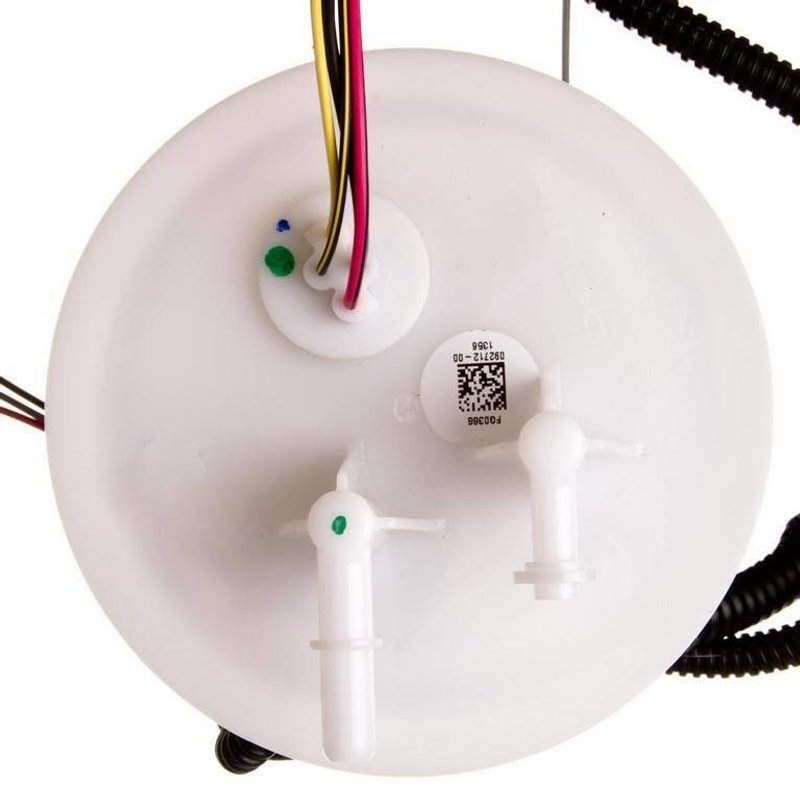

Delphi FG0366 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0366 fuel pump module assembly is designed specifically for Ford Taurus models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports flex fuel systems and includes essential components for a straightforward replacement.

• Compatible with Ford Taurus fuel systems
• Electric in-tank fuel pump with 12.0 voltage operation
• Maximum pressure rating of 78 psi and system pressure of 44 psi
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Seven-pin male terminal type for secure electrical connection
• Comes with gasket/seal and instruction sheet for installation

Technical Details and Features

The Delphi FG0366 fuel pump module assembly operates at 12 volts and is designed for flex fuel applications, making it suitable for Ford Taurus vehicles equipped with flexible fuel systems. The pump delivers an average flow rating of 33 liters per hour and maintains a system pressure of 44 psi, with a maximum pressure capacity of 78 psi. It features an internal strainer to protect the fuel system from contaminants and a fuel level sender assembly to provide accurate fuel gauge readings.

The module includes a quick connect outlet with a 0.375-inch outside diameter, facilitating easy connection to the fuel line. Electrical connections are made via a seven-pin male terminal, ensuring compatibility with the vehicle's wiring harness. The assembly comes with a gasket or seal to prevent leaks during installation.

Applications and Problem Resolution

• Replacement for failing or noisy fuel pumps in Ford Taurus models
• Resolves inconsistent fuel pressure or flow issues
• Addresses inaccurate fuel level readings due to faulty sender units
• Prevents fuel contamination with integrated internal strainer
• Suitable for vehicles requiring flex fuel compatibility

Installation Notes and Tips

Installation of the Delphi FG0366 fuel pump module assembly should be performed with the fuel tank removed or lowered to access the in-tank pump. Ensure the gasket or seal is properly seated to avoid leaks. Verify the seven-pin male terminal aligns correctly with the vehicle’s wiring harness. Follow the included instruction sheet carefully to maintain system integrity and safety. It is recommended to inspect the fuel tank for debris before installation to prolong pump life.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure reliable performance in Ford Taurus vehicles. The FG0366 assembly includes a fuel level sender and strainer, components critical to maintaining fuel system health. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
