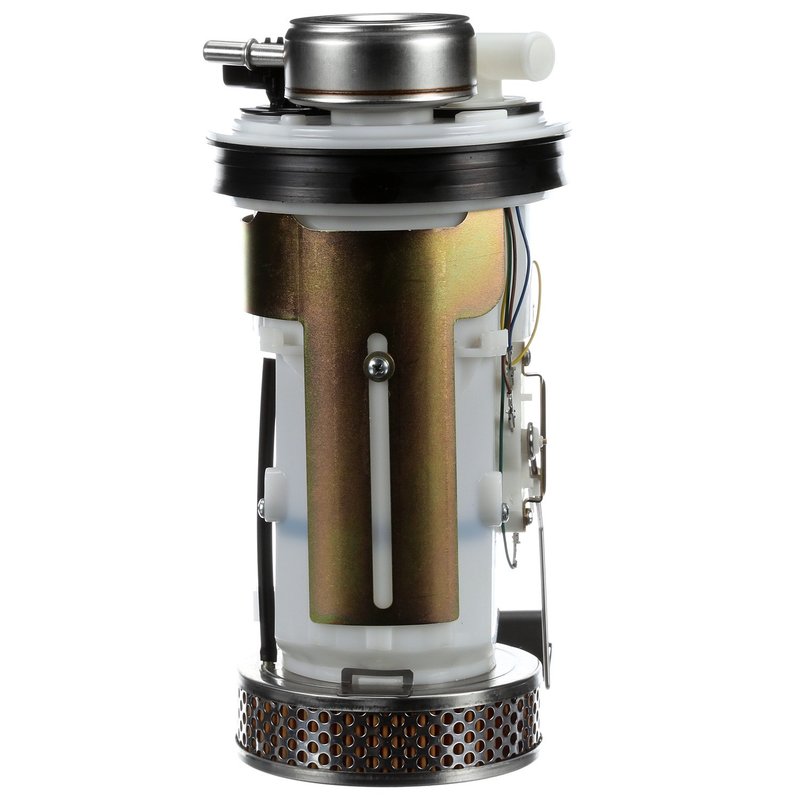

Delphi FG0368 Fuel Pump Module Assembly
| Brand | Delphi FG0368 |
|---|---|
| Average Current Draw | 7 |
| Average Flow Rating | 42 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 73.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 105.0 |
| Resistance Ohms Full | 4.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Dodge · 3 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built from Delphi's century of original-equipment experience.
Complete assembly. Includes regulator, strainer, gasket, and fuel level sender.
Cross-references Airtex Fuel Pumps E7100M, Four Seasons 67647 and 953-3055 for the same application. See all 12.
Delphi FG0368 Fuel Pump Module Assembly
Delphi FG0368 is an in-tank fuel pump module assembly for gasoline applications, built for direct replacement service on select 1996 Dodge B1500, B2500, and B3500 vans with a 35 gallon tank. It combines the pump, fuel level sender assembly, regulator, strainer, and seal in one service part for a cleaner repair path.
Backed by Delphi’s OE heritage and decades of supplier experience, this fuel pump module assembly is built around the specifications used by major automakers. It is a practical choice for restoring fuel delivery on Dodge B1500, B2500, and B3500 models where the original module has worn out or failed.
Key Features
- Part number FG0368 fuel pump module assembly
- In-tank electric pump for gasoline fuel systems
- Includes fuel level sender assembly and regulator
- Strainer and gasket/seal included
- Quick-connect outlet design with 2 outlets
- 12-volt system with 73.0 maximum pressure rating
- Average flow rating of 42 and average current draw of 7
- Blade terminals, male terminal gender, 6 terminals
- Standard replacement grade for select Dodge van applications
Detailed Description
Delphi FG0368 is engineered as an in-tank fuel pump module assembly for 1996 Dodge B1500, B2500, and B3500 models equipped with a 35 gallon tank. It is built for gasoline fuel systems and includes the fuel pump, fuel level sender assembly, regulator, strainer, and gasket or seal to support a complete fuel delivery repair. The module uses a quick-connect outlet, blade terminals, and a 12-volt electric pump design with a 44 psi system pressure rating.
Delphi draws on OE-level knowledge developed through long-term supplier relationships with major automakers, and that experience is reflected in the FG0368 replacement design. This part cross-references Airtex E7100M and Four Seasons 67647 for the same application. For shoppers searching for a 1996 Dodge B1500 fuel pump module assembly, 1996 Dodge B2500 fuel pump assembly, or 1996 Dodge B3500 in-tank fuel pump replacement, FG0368 is the direct part number to verify.
What It Helps Fix
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent pump output
- Incorrect fuel gauge readings from a worn sender
- Low fuel pressure conditions in the tank-mounted system
- Fuel starvation symptoms under load or at higher demand
Installation Notes and Tips
Compatible with 1996 Dodge B1500, B2500, and B3500 models with a 35 gallon tank. Before installing a new pump, clean the fuel tank to reduce the risk of contamination-related failure; Delphi notes that tank contamination is a leading cause of premature pump damage and recommends fuel tank cleaning kit FC01. Verify connector style, outlet configuration, and tank application before installation.
Quality Assurance
Delphi builds this replacement module using OE-focused engineering knowledge developed over 100 years of supplying fuel system components to automakers. The FG0368 is a standard replacement part designed to meet the needs of the listed Dodge van applications with the specified fuel system configuration.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 1996 | Dodge | B1500 | — | N/A | with 35 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1996 | Dodge | B2500 | GAS | N/A | with 35 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1996 | Dodge | B3500 | GAS | N/A | with 35 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
