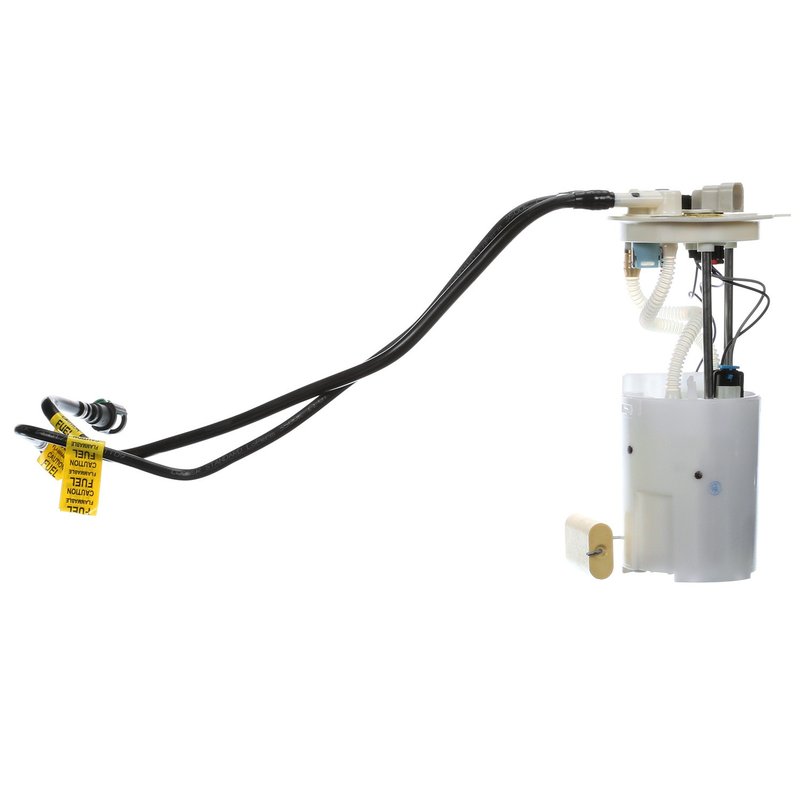

Delphi FG0375 Fuel Pump Module Assembly

Delphi FG0375 Fuel Pump Module Assembly

The Delphi FG0375 fuel pump module assembly is a standard replacement for select GM compact and midsize cars with in-tank gasoline fuel systems. Built from Delphi’s OE experience, it combines the pump, fuel level sender, strainer, seal, lock ring, and float arm in one service assembly for direct fuel delivery and level reporting.

Key Features

• In-tank electric fuel pump module assembly for gasoline applications
• 12.0-volt operation with a 7-amp average current draw
• Average flow rating of 21 and system pressure of 59 psi
• Maximum pressure rating of 101.0
• Fuel level sender assembly included with 40.0 ohms empty and 250.0 ohms full resistance
• Strainer, gasket or seal, and lock ring included
• Female quick-connect outlet with 3 outlets and 0.375-inch outlet outside diameter
• Blade terminals, 4 terminal quantity, male terminal gender
• Vapor pressure sensor included

Detailed Description

Delphi FG0375 is engineered as an OE-style fuel pump module assembly for vehicles that rely on an in-tank electric pump and integrated sender. Delphi draws on more than a century of original-equipment experience, and that background is reflected in the module’s fit, function, and component layout. This assembly is a direct service solution for 2000-2005 Chevrolet Cavalier, 2004-2005 Chevrolet Classic, 2000-2003 Chevrolet Malibu, 2000-2005 Pontiac Grand Am, 2000-2005 Pontiac Sunfire, and 2000-2004 Oldsmobile Alero. It also fits 2000 Chevrolet Cavalier and 2000 Pontiac Sunfire with plastic tank applications. This part cross-references Bosch 67475 for the same application.

What It Helps Fix

• Hard starting caused by weak or failing fuel delivery
• Engine stalling from inconsistent fuel pressure
• Fuel gauge readings that are inaccurate or intermittent
• Loss of power under load from reduced pump output
• Fuel pump noise associated with worn internal components

Installation Notes and Tips

Before installation, verify the vehicle connector style. If the part being replaced uses a 1x4 connector, wire harness FA10004 is required and not included. Clean the fuel tank before installing the new module to reduce the risk of contamination-related failure, and Delphi recommends using fuel tank cleaning kit FC01. Confirm the tank type and application details for 2000 Chevrolet Cavalier and 2000 Pontiac Sunfire, which require plastic tank fitment.

Quality Assurance

Delphi builds this fuel pump module assembly using OE heritage and application knowledge developed through long-term supplier experience with major automakers. The FG0375 is a standard replacement part designed to restore fuel delivery and sender function in the listed Chevrolet, Pontiac, and Oldsmobile applications.
