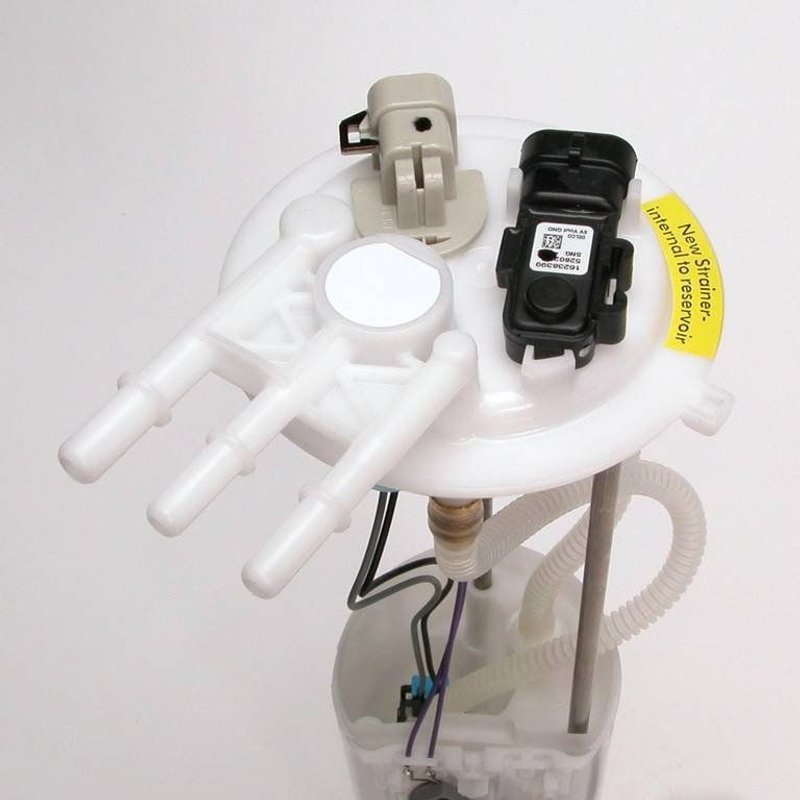

Delphi FG0376 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet S10 and GMC Sonoma

The Delphi FG0376 fuel pump module assembly is designed to provide consistent fuel delivery for Chevrolet S10 and GMC Sonoma models. This in-tank electric fuel pump ensures efficient operation with integrated components tailored for flex fuel systems.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Internal strainer and quick connect outlet for secure fuel flow
• Compatible with flex fuel systems, supporting up to 59 psi system pressure
• Comes with gasket/seal and jumper harness for installation
• Pin-type male terminals with 4-terminal configuration
• Average flow rating of 21 liters per hour and current draw of 7 amps
• Includes vapor pressure sensor for emissions control

Technical Details and Features

The Delphi FG0376 fuel pump module assembly operates at 12 volts and is designed for in-tank installation. It features a 0.313-inch outlet outside diameter with three quick connect outlets to ensure proper fuel delivery. The internal strainer protects the pump from debris, while the included fuel level sender assembly provides accurate fuel level readings. This module supports flex fuel types and maintains a system pressure of 59 psi, with a maximum pressure rating of 109 psi. The pump’s resistance ranges from 40 ohms when empty to 250 ohms when full, ensuring reliable electrical performance. The four-pin male terminals facilitate secure electrical connections, and the included gasket or seal helps prevent leaks during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Chevrolet S10 and GMC Sonoma models, specifically designed to meet the fuel delivery requirements of these vehicles. The part number FG0376 ensures proper fitment and function within the fuel system of these trucks, supporting flex fuel operation and maintaining system pressure for optimal engine performance.

• Resolves fuel delivery issues such as inconsistent fuel pressure
• Replaces faulty or worn fuel pump modules causing engine hesitation
• Addresses inaccurate fuel level readings with integrated sender assembly
• Eliminates fuel leaks with included gasket and seal
• Improves fuel system reliability in flex fuel applications

Installation Notes and Tips

Installation of the Delphi FG0376 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the four-pin male terminals provided, and verify the gasket or seal is properly seated to prevent leaks. The quick connect outlets simplify fuel line attachment, but confirm all connections are secure before operation. It is recommended to inspect the fuel tank and lines for contamination or damage during installation to maintain system integrity.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for durability and performance. This standard replacement part includes a fuel level sender assembly and vapor pressure sensor to support emissions compliance. While specific warranty details vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
