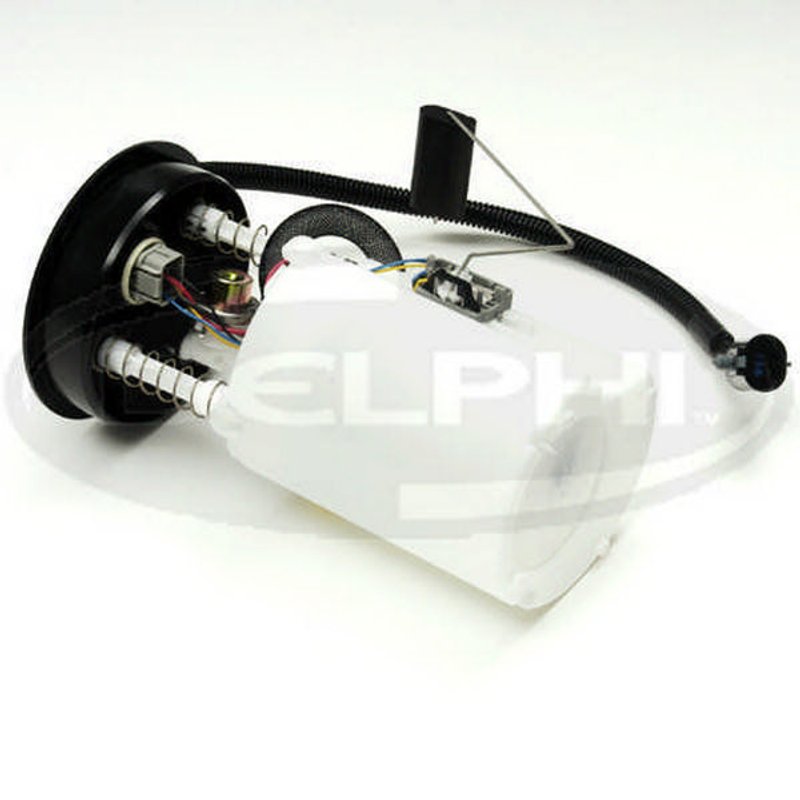

Delphi FG0377 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Jeep Grand Cherokee

The Delphi FG0377 fuel pump module assembly is designed specifically for Jeep Grand Cherokee models requiring a reliable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Outlet outside diameter: 0.375 inches
• Operates at 12.0 volts for standard vehicle electrical systems
• Compatible with gasoline fuel type
• Includes integrated fuel pressure regulator
• Maximum pressure rating of 42 psi
• Blade-type terminals with 5 male connectors
• Comes with gasket and internal strainer for fuel filtration
• Quick connect outlet type with a single outlet
• In-tank installation design
• Fuel level sender assembly with float arm included
• Average current draw of 13 amps and flow rating of 28 gallons per hour
• Standard replacement grade for dependable performance

Technical Details and Features

The Delphi FG0377 fuel pump module assembly is engineered for precise fuel delivery in Jeep Grand Cherokee vehicles. Its electric pump type operates at 12 volts and supports gasoline fuel systems. The module includes an internal strainer inlet and a quick connect outlet, facilitating easy installation and reliable fuel flow. The integrated fuel pressure regulator maintains system pressure up to 42 psi, ensuring consistent engine operation. The assembly features five blade-type male terminals for secure electrical connections and comes with a gasket to prevent leaks. Additionally, the included fuel level sender assembly with float arm provides accurate fuel level readings.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Jeep Grand Cherokee models
• Resolves fuel pressure inconsistencies causing engine hesitation or stalling
• Addresses fuel delivery interruptions due to clogged or damaged strainers
• Fixes inaccurate fuel gauge readings with the included fuel level sender assembly
• Eliminates electrical connection problems with blade terminal design

Installation Notes and Tips

Installation of the Delphi FG0377 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included gasket should be replaced to maintain a proper seal. Verify all electrical connections are secure on the five blade terminals. The quick connect outlet simplifies fuel line attachment. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Jeep Grand Cherokee vehicles. It undergoes rigorous testing to ensure durability and performance. While specific warranty details may vary, Delphi typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
