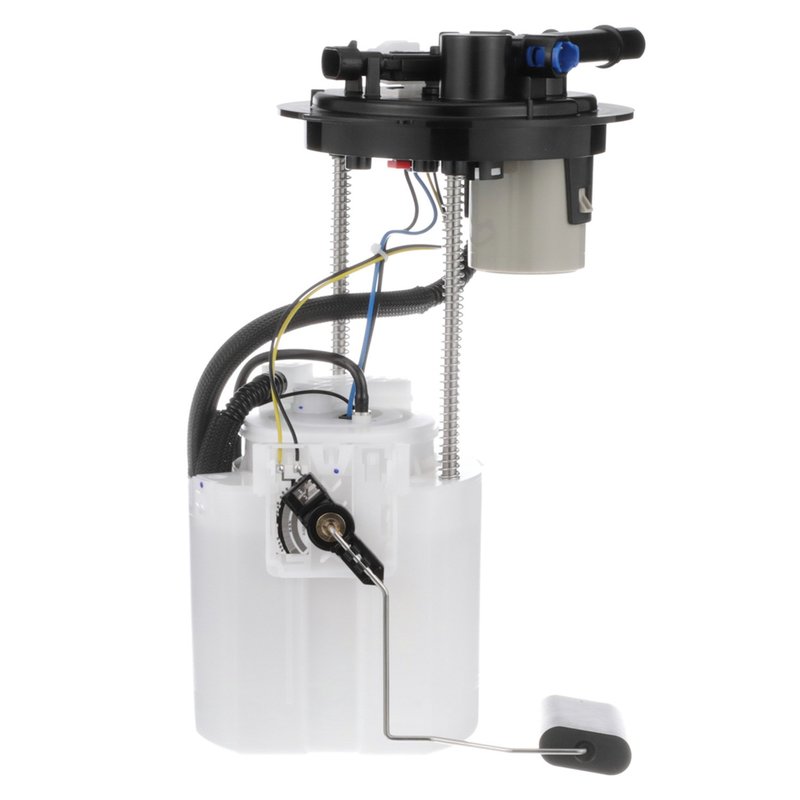

Delphi FG0379 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick, Chevrolet, and Pontiac

The Delphi FG0379 fuel pump module assembly is designed to provide consistent fuel delivery for select Buick, Chevrolet, and Pontiac models. Engineered for in-tank installation, this electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

• Compatible with Buick Allure, Chevrolet Impala, Monte Carlo, and Pontiac Grand Prix, LaCrosse
• 12-volt electric pump with a maximum pressure of 109 psi and system pressure of 58 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Equipped with internal strainer and quick connect outlet (0.375 inch diameter)
• Regulator, gasket, and strainer included for complete installation
• Blade-type male terminals with four connections for secure wiring
• Average flow rating of 22 and average current draw of 11 amps
• Standard replacement grade for reliable performance
• Vapor pressure sensor integrated for emissions control

Technical Details and Features

The Delphi FG0379 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. Its electric pump type delivers an average flow rating of 22, supporting efficient fuel delivery under various driving conditions. The module includes a built-in regulator to maintain system pressure at 58 psi, with a maximum pressure rating of 109 psi to handle peak demands. The internal strainer and included gasket help protect the fuel system from contaminants and ensure a secure seal during installation.

Terminals are blade-type male connectors with four terminals, facilitating straightforward electrical connections. The quick connect outlet with a 0.375-inch outside diameter allows for easy integration with existing fuel lines. Additionally, the fuel level sender assembly with float arm provides accurate fuel level readings, while the vapor pressure sensor supports emissions compliance.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Buick Allure
• Chevrolet Impala
• Chevrolet Monte Carlo
• Pontiac Grand Prix
• Pontiac LaCrosse

It is designed as a direct replacement for the original in-tank fuel pump module, ensuring proper fit and function for these models.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure causing engine performance problems
• Fuel contamination leading to clogged strainers
• Electrical connection issues with worn or damaged terminals

Installation Notes and Tips

Installation of the Delphi FG0379 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is safely supported and the fuel system is depressurized before beginning work. The included gasket and strainer should be installed to maintain a proper seal and filtration. Verify all electrical connections are secure using the blade-type male terminals. The quick connect outlet simplifies fuel line attachment, but confirm all fittings are tight to prevent leaks. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications. The product includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
