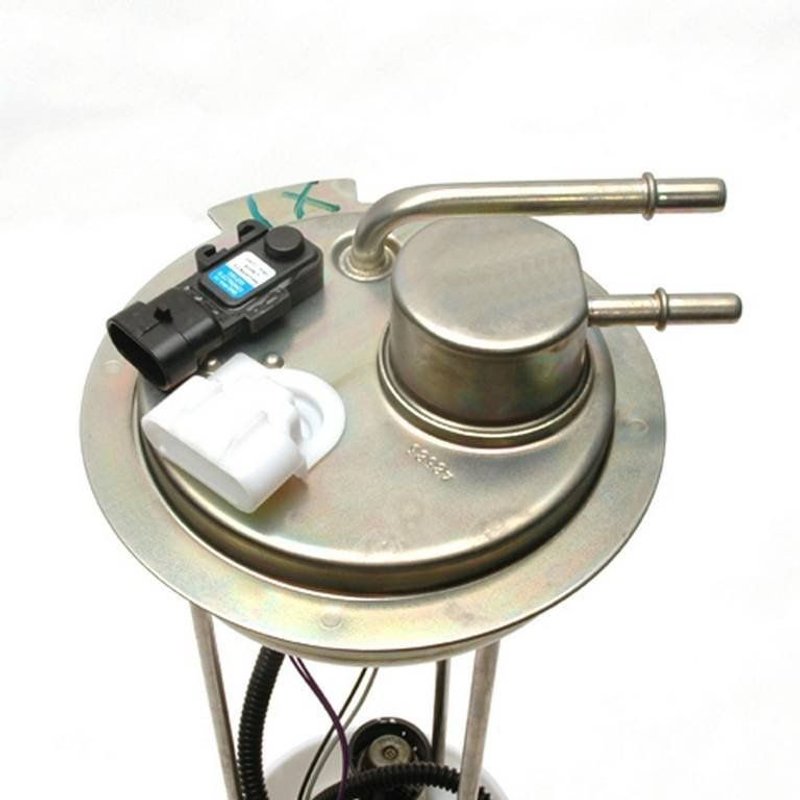

Delphi FG0382 Fuel Pump Module Assembly

Delphi FG0382 Fuel Pump Module Assembly Overview

The Delphi FG0382 fuel pump module assembly is designed for reliable in-tank fuel delivery in vehicles requiring a 12-volt electric pump. This module integrates a fuel level sender assembly and regulator, ensuring consistent fuel pressure and accurate fuel level readings for compatible makes and models.

• 12.0 Volt electric fuel pump with integrated regulator
• Maximum pressure rating of 73 psi and system pressure of 54 psi
• Includes internal strainer and fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Four male blade terminals for secure electrical connections
• Compatible with flex fuel systems
• Standard replacement grade with included gasket and seal
• Average flow rating of 28 liters per hour and average current draw of 11 amps
• Includes instruction sheet for installation guidance

Technical Details and Features

The Delphi FG0382 fuel pump module assembly features an internal strainer inlet type that helps prevent debris from entering the fuel system, enhancing longevity and performance. The module’s quick connect outlet type with two outlets and a 0.375-inch outside diameter facilitates straightforward installation and secure fuel line connections. The four male blade terminals provide reliable electrical contact, supporting the pump’s 12-volt operation and an average current draw of 11 amps. This fuel pump module is designed for flex fuel compatibility, making it suitable for vehicles that run on ethanol blends or gasoline.

Applications and Problem Resolution

This fuel pump module assembly is typically used in vehicles requiring a standard replacement for in-tank electric fuel pumps. It addresses several common fuel system issues, including:

• Inconsistent fuel pressure causing engine performance problems
• Faulty fuel level readings due to a malfunctioning sender assembly
• Fuel contamination from debris entering the pump
• Electrical connection failures with worn or damaged terminals
• Inadequate fuel flow affecting engine start and acceleration

Installation Notes and Tips

When installing the Delphi FG0382 fuel pump module assembly, ensure the gasket or seal included is properly seated to prevent fuel leaks. Verify that the four blade terminals are securely connected and free of corrosion. The quick connect outlet fittings should be firmly attached to the fuel lines to maintain system integrity. Follow the included instruction sheet carefully to avoid damage to the fuel pump or vehicle fuel system components. This module is designed for in-tank installation, so proper handling and safety precautions are essential during replacement.

Quality Assurance and Warranty

Delphi manufactures the FG0382 fuel pump module assembly to meet standard replacement grade specifications, ensuring dependable performance and durability. The module includes a vapor pressure sensor and regulator to maintain optimal fuel system operation. While specific warranty details may vary, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Always consult the product documentation or authorized service providers for warranty information related to your vehicle application.
